Rear Strut Assembly: Removal

  1. Remove the covering self side trim, rear seat belt retractor, luggage side trim and covering self mounting bracket.

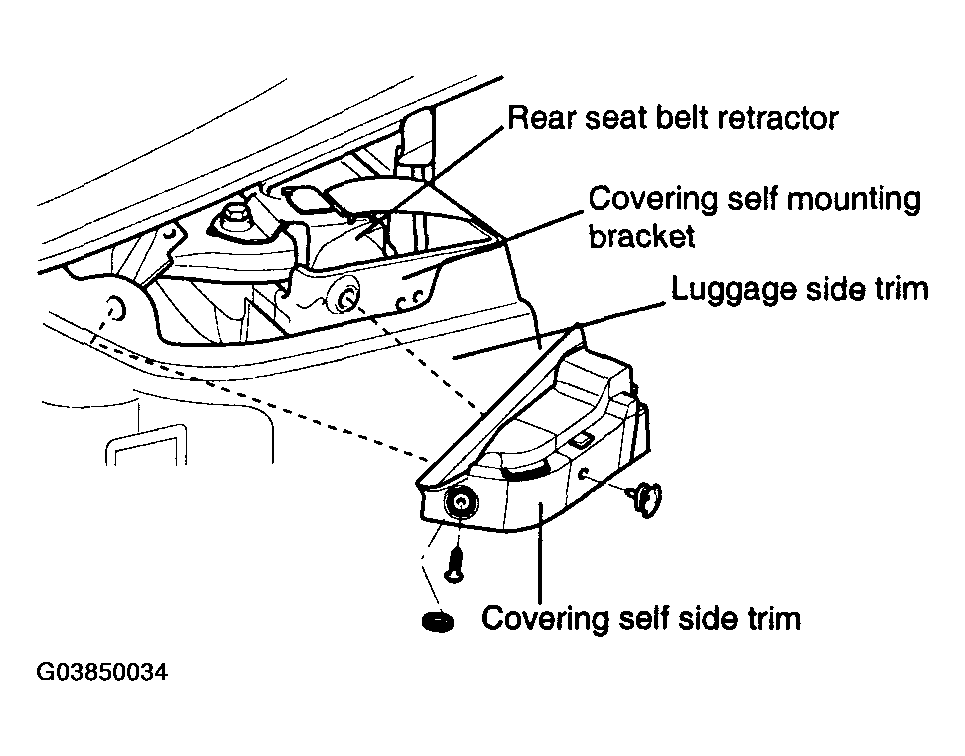

    Fig 1: Removing Covering Self Side Trim, Rear Seat Belt Retractor, Luggage Side Trim And Covering Self Mounting Bracket
    G03850034Courtesy of HYUNDAI MOTOR CO.
  2. Remove the rear strut upper mounting nuts (3).

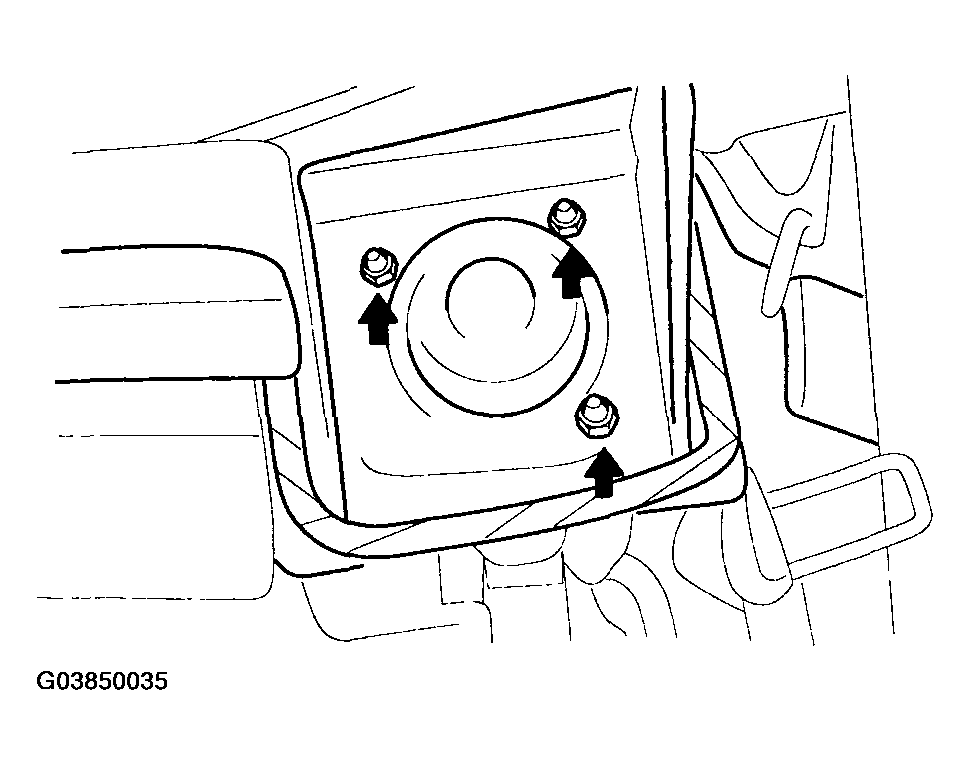

    Fig 2: Removing Rear Strut Upper Mounting Nuts
    G03850035Courtesy of HYUNDAI MOTOR CO.
  3. Remove the wheel and tire.
  4. Disconnect the brake hose and wheel speed sensor wiring from the rear strut.
  5. Remove the stabilizer bar link.

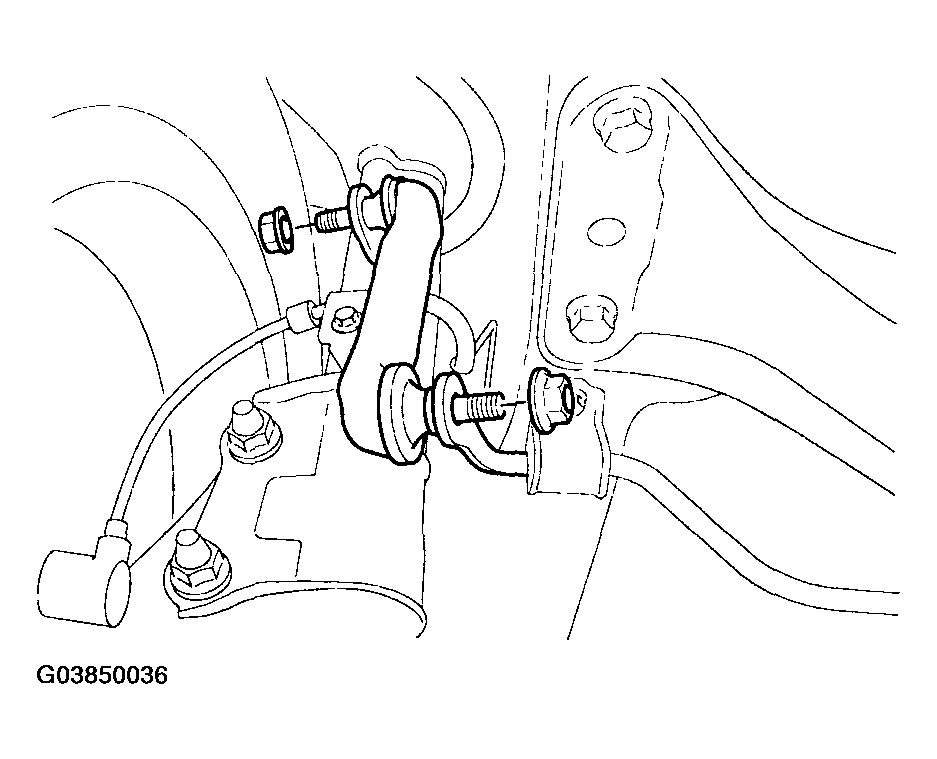

    Fig 3: Removing Stabilizer Bar Link
    G03850036Courtesy of HYUNDAI MOTOR CO.
  6. Remove the strut and carrier mounting bolts(2).
    CAUTION: Be careful not to drop the rear strut.
  7. Remove the rear strut assembly.
