Rear Strut Assembly: Reassembly

Install the lower spring pad so that the protrusions fit in the holes in the spring lower seat.

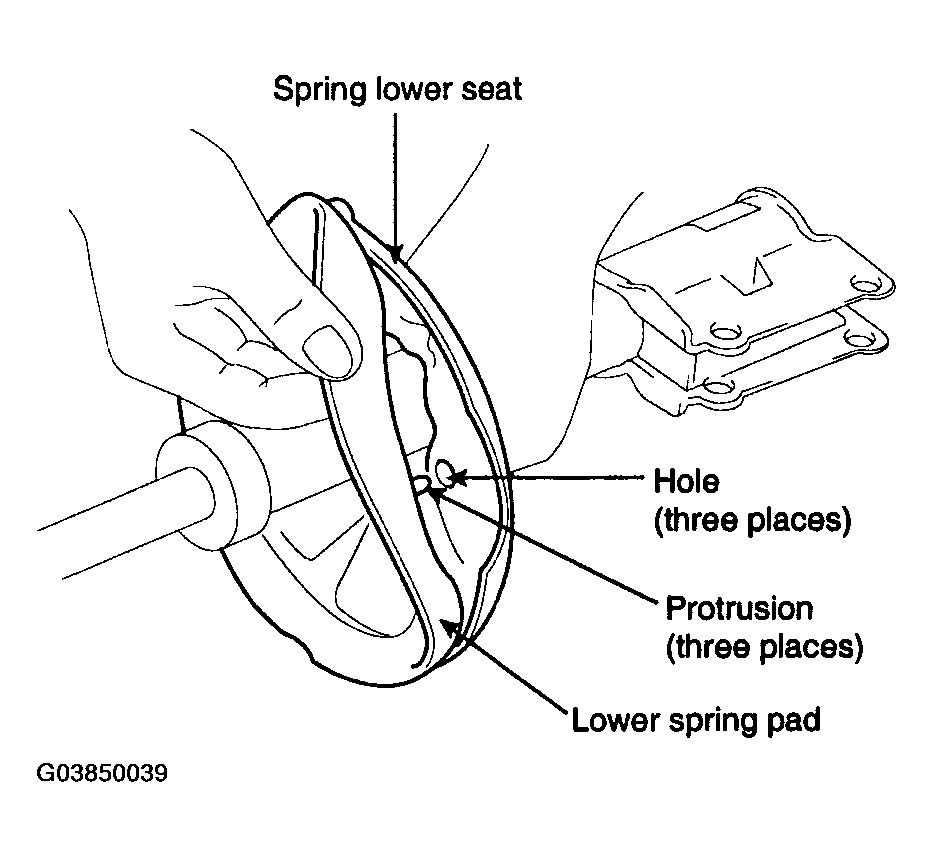

Fig 1: Installing Lower Spring Pad So Protrusions Fits In The Holes In The Spring Lower Seat
Courtesy of HYUNDAI MOTOR CO.
Install the dust cover on the shock absorber.
Using the special tools (09546-26000 or J38402), compress the coil spring.

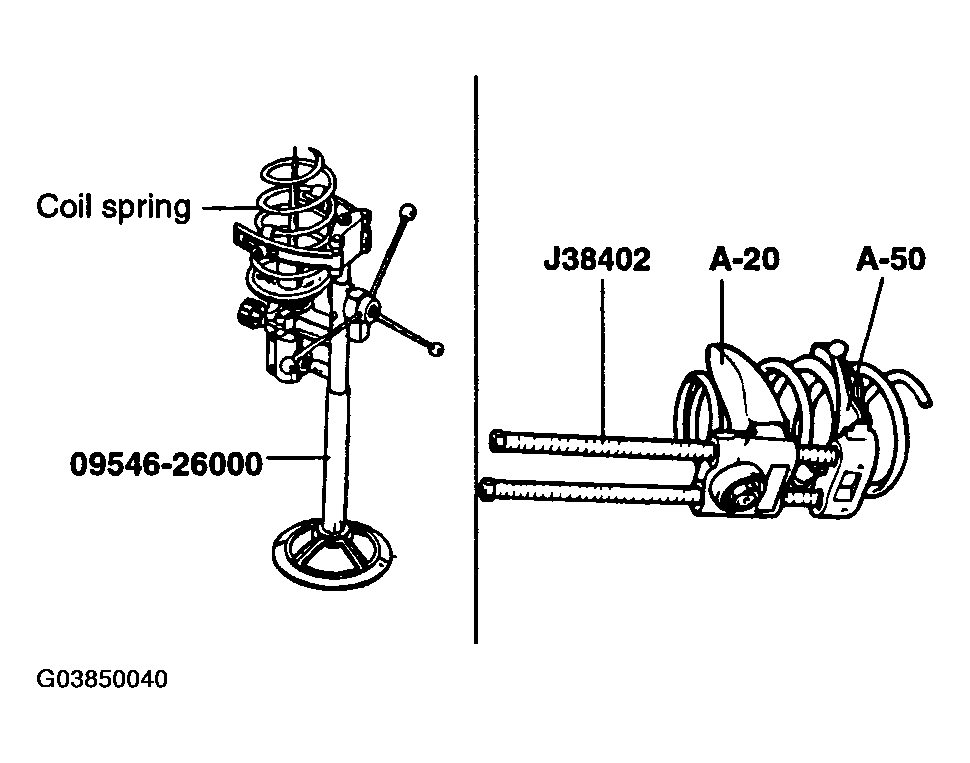

Fig 2: Compressing Coil Spring Using Special Tools (09546-26000 Or J38402)
Courtesy of HYUNDAI MOTOR CO.
After extending the piston rod fully, install the insulator assembly and pipe.
NOTE: Align the D-shaped hole in the spring seat upper assembly with the protrusion of the piston rod.

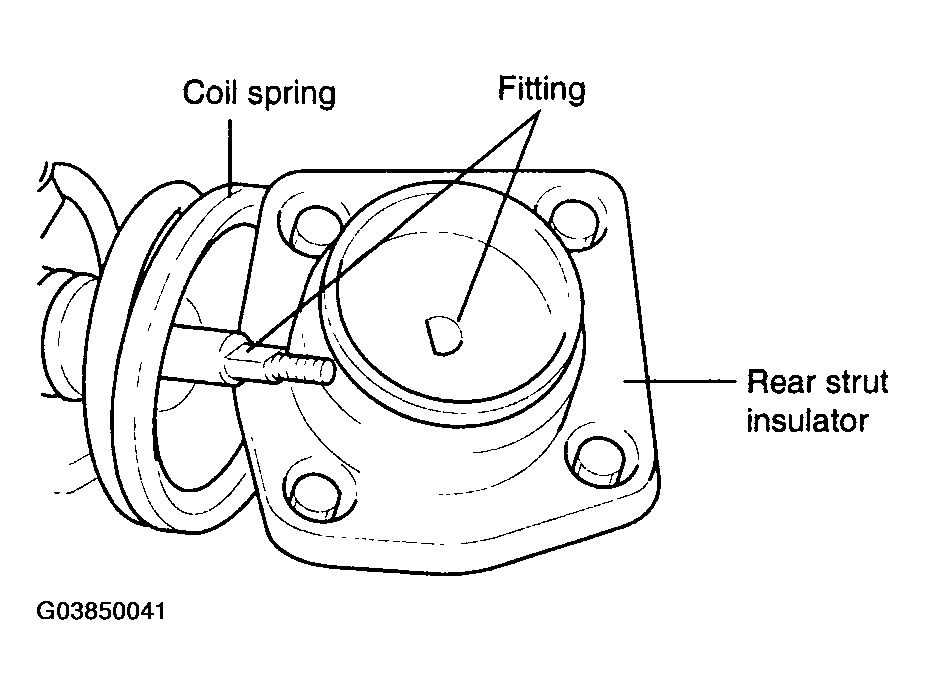

Fig 3: Aligning D-Shaped Hole In Spring Seat Upper Assembly With Protrusion Of Piston Rod
Courtesy of HYUNDAI MOTOR CO.
After seating the lower ends of the coil spring in the lower spring seat grooves correctly, tighten the new self-locking nut temporarily.
CAUTION: Replace the self-locking nut with new ones after removal.

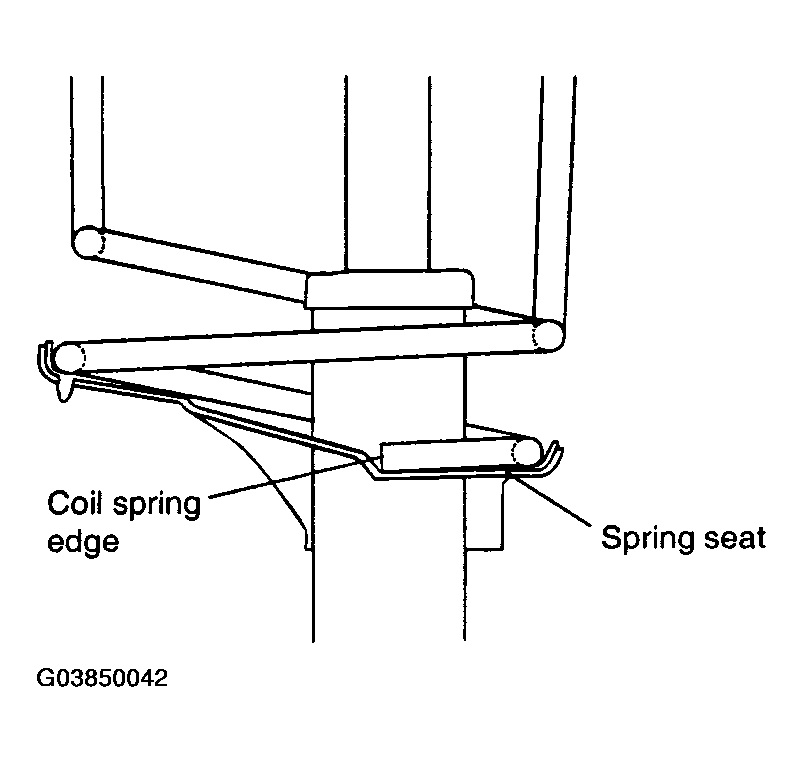

Fig 4: Seating Lower Ends Of Coil Spring In Lower Spring Seat Grooves
Courtesy of HYUNDAI MOTOR CO.
Remove the special tools (09546-26000 or J38402).
Tighten the self-locking nut to the specified torque.
Tightening torque

40~60 Nm (400~600 kgf.cm, 29~37 lbf.ft)
