Rear Strut Assembly: Inspection

  1. Check the strut insulator for wear or damage.
  2. Check rubber parts for damage or deterioration.
  3. Check the coil spring and strut assembly for sagging and deformation.
  4. Check the shock absorber for abnormal resistance or unusual sound.

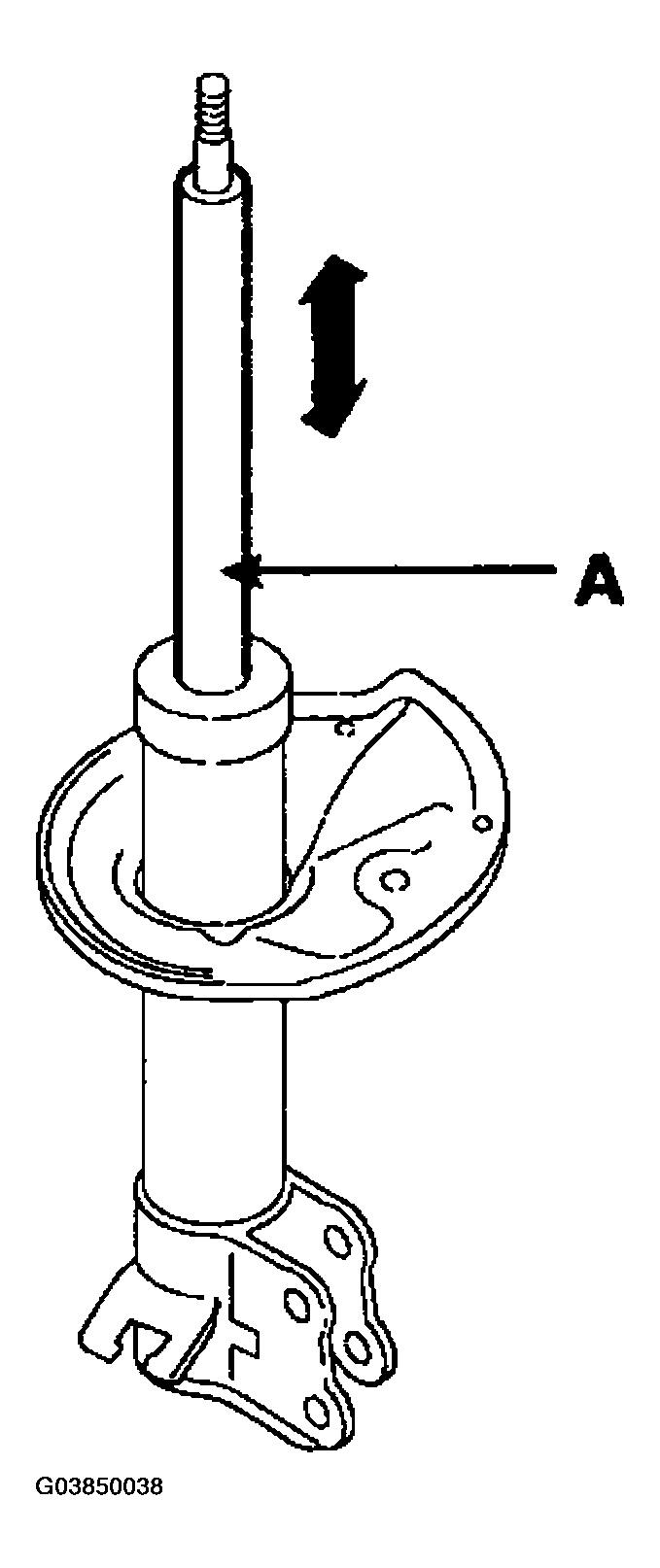

    Fig 1: Checking Shock Absorber For Abnormal Resistance Or Unusual Sound
    G03850038Courtesy of HYUNDAI MOTOR CO.
