Rear Strut Assembly: Disassembly

  1. Using the special tools (09546-26000 or J38402), compress the coil spring until there is only a little tension on the strut.
    NOTE: Do not use an impact gun.

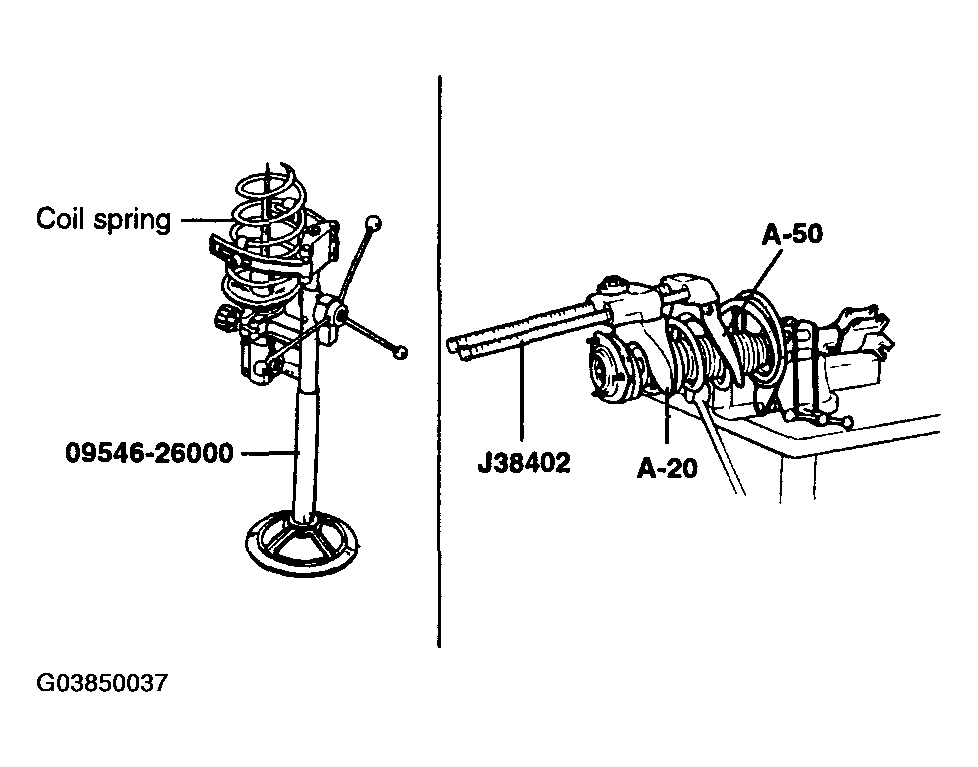

    Fig 1: Compressing Coil Spring Using Special Tools (09546-26000 Or J38402)
    G03850037Courtesy of HYUNDAI MOTOR CO.
  2. Remove the self-locking nut at the top end of the shock absorber.
  3. Remove the insulator, coil spring and dust cover from strut assembly.
