Home >> Hyundai >> 2005 >> Tiburon SE >> Repair and Diagnosis >> Suspension >> Rear Suspension System >> Rear Stabilizer Bar >> Components

Rear Stabilizer Bar: Components

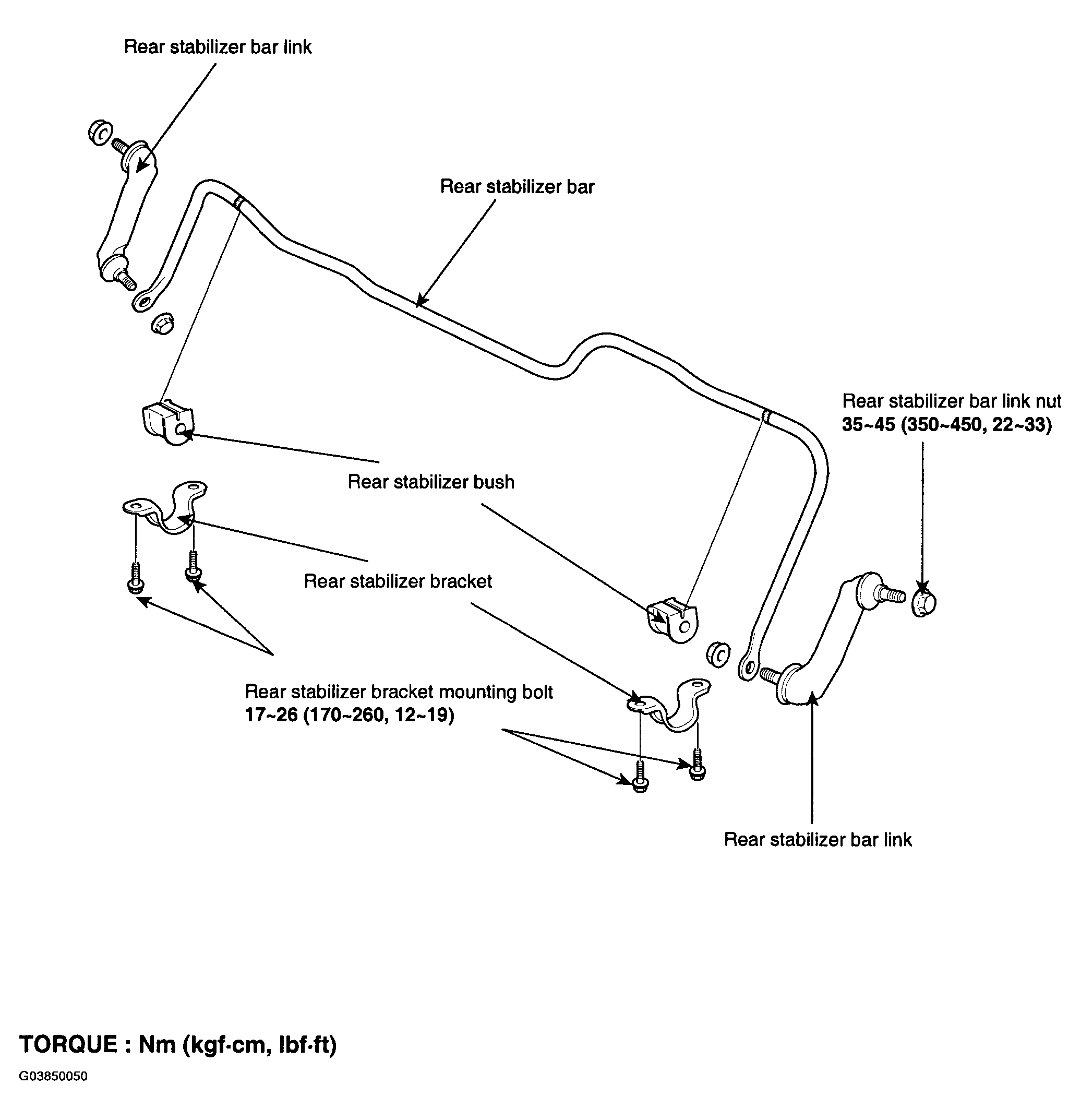

Fig 1: Rear Stabilizer Bar Replacement Components With Torque Specifications

G03850050

Courtesy of HYUNDAI MOTOR CO.
