Input And Output Diagram

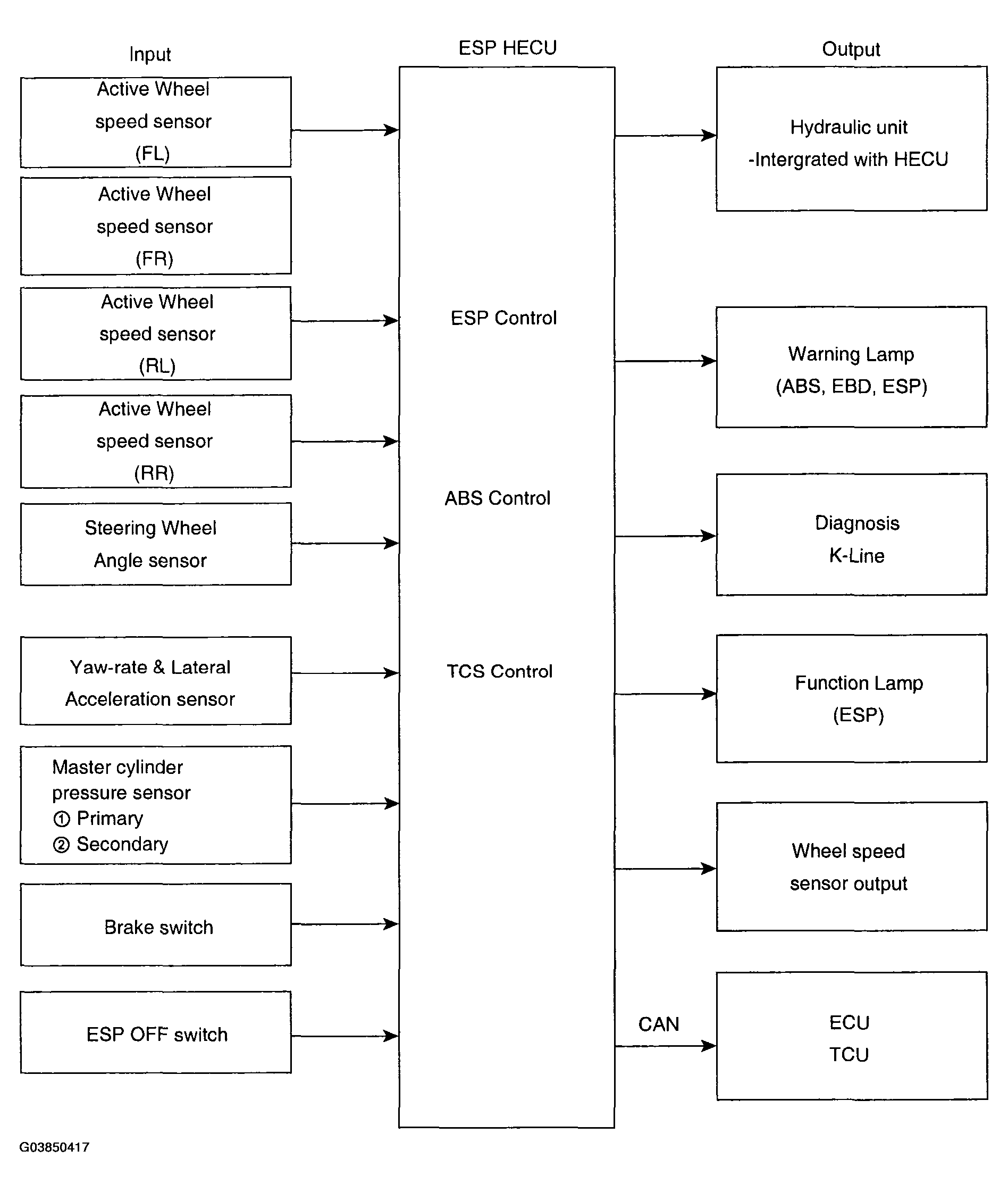

Fig 1: Identifying Input And Output Flow Diagram
G03850417Courtesy of HYUNDAI MOTOR CO.
