DTC C1513 Brake Switch Error

DTC C1513 DESCRIPTION & PROBABLE CAUSES

DTC No. C1513 Brake switch error Probable cause
The brake light signal is a reference to judge driver's will for braking. ABS ECU monitor open circuit of brake light switch for normal ABS control.
  • Open circuit in brake switch line
  • Faulty brake light switch
  • Faulty input stage in HECU

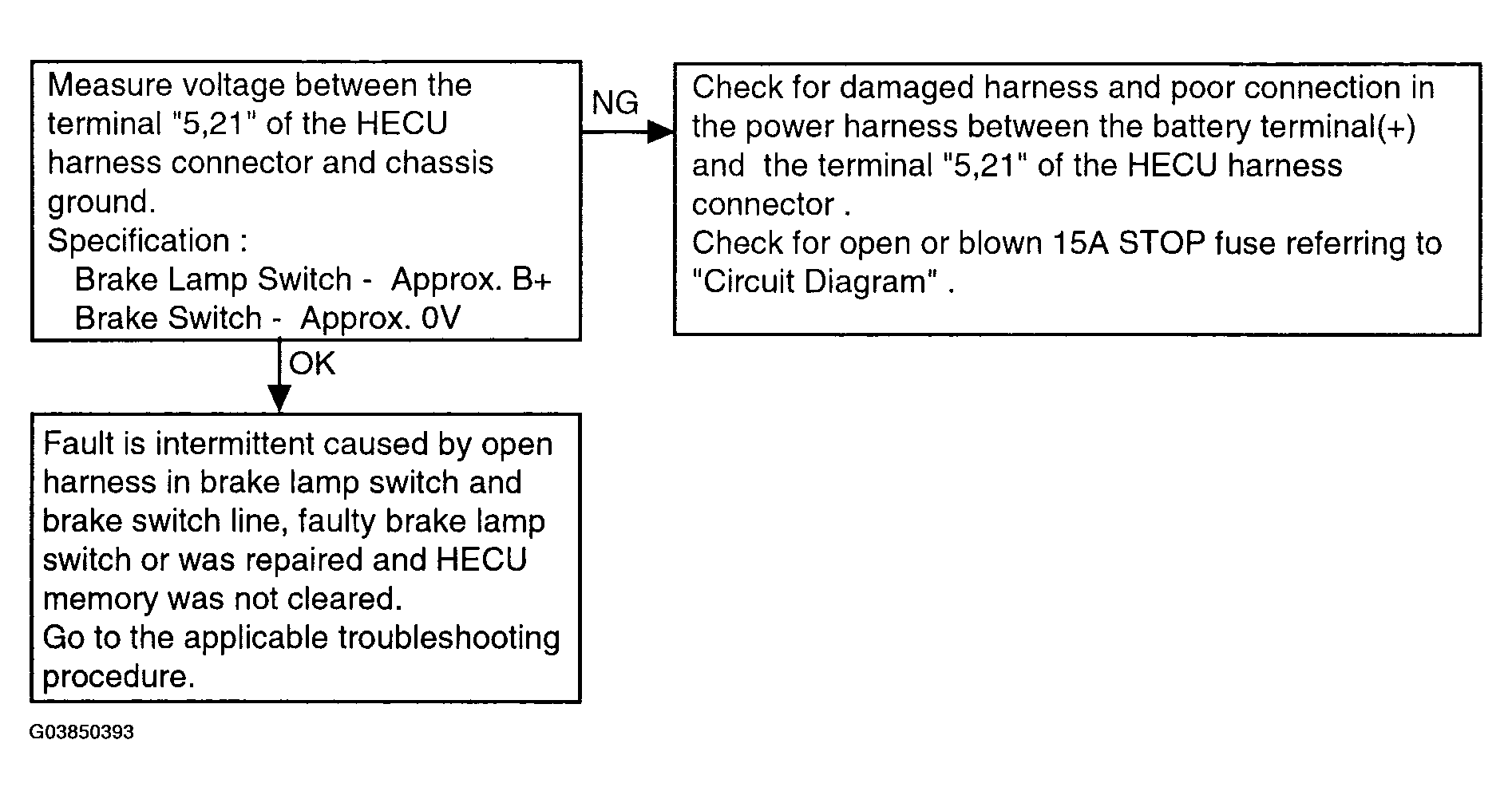

Fig 1: Brake Switch Error Flow Chart
G03850393Courtesy of HYUNDAI MOTOR CO.
