Rear Seat: Components

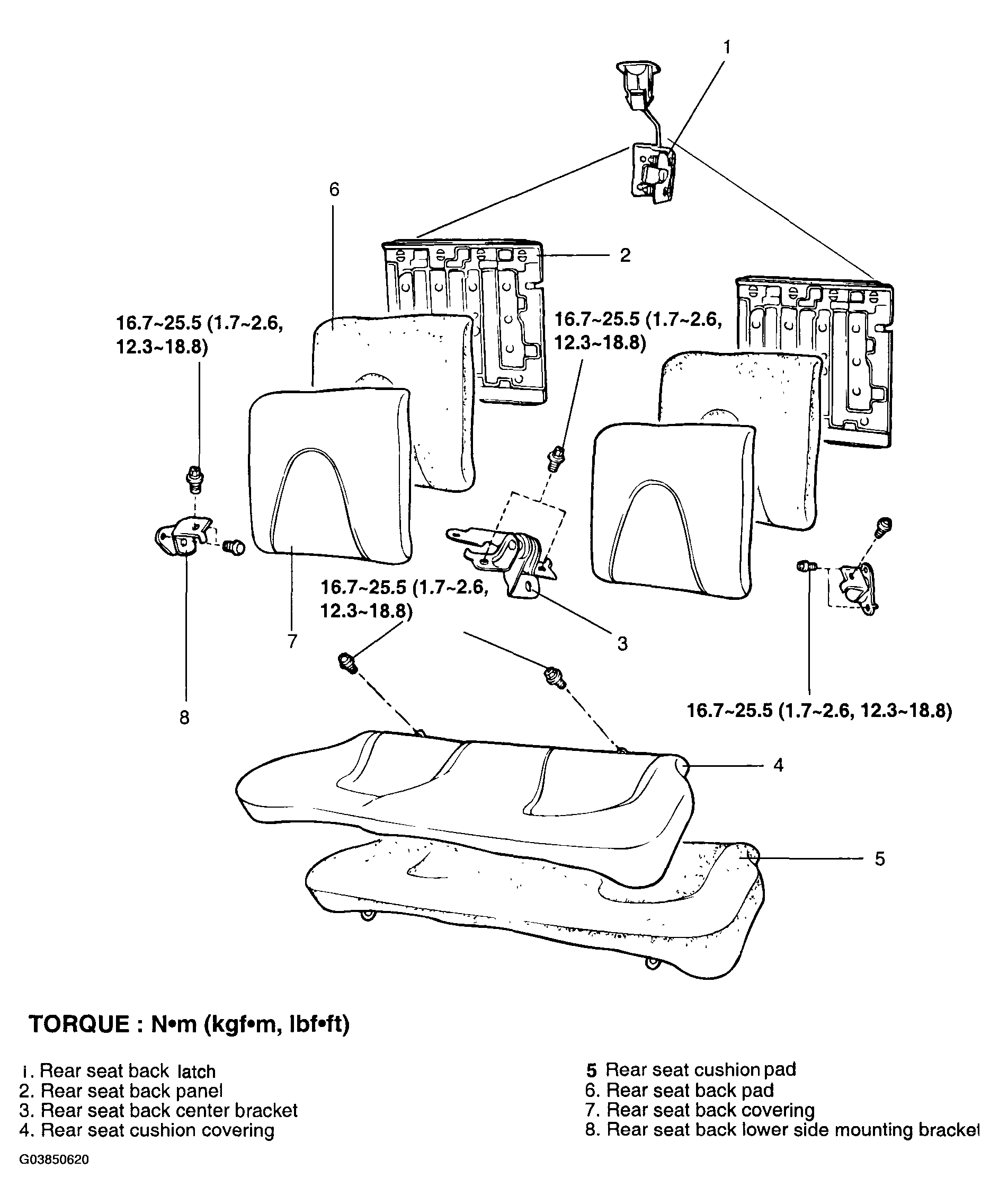

Fig 1: Rear Seat Replacement Components With Torque Specifications

G03850620

Courtesy of HYUNDAI MOTOR CO.
