Home >> Hyundai >> 2005 >> Tiburon SE >> Repair and Diagnosis >> Body & Frame >> Seats >> Front Seat Belt >> Components

Front Seat Belt: Components

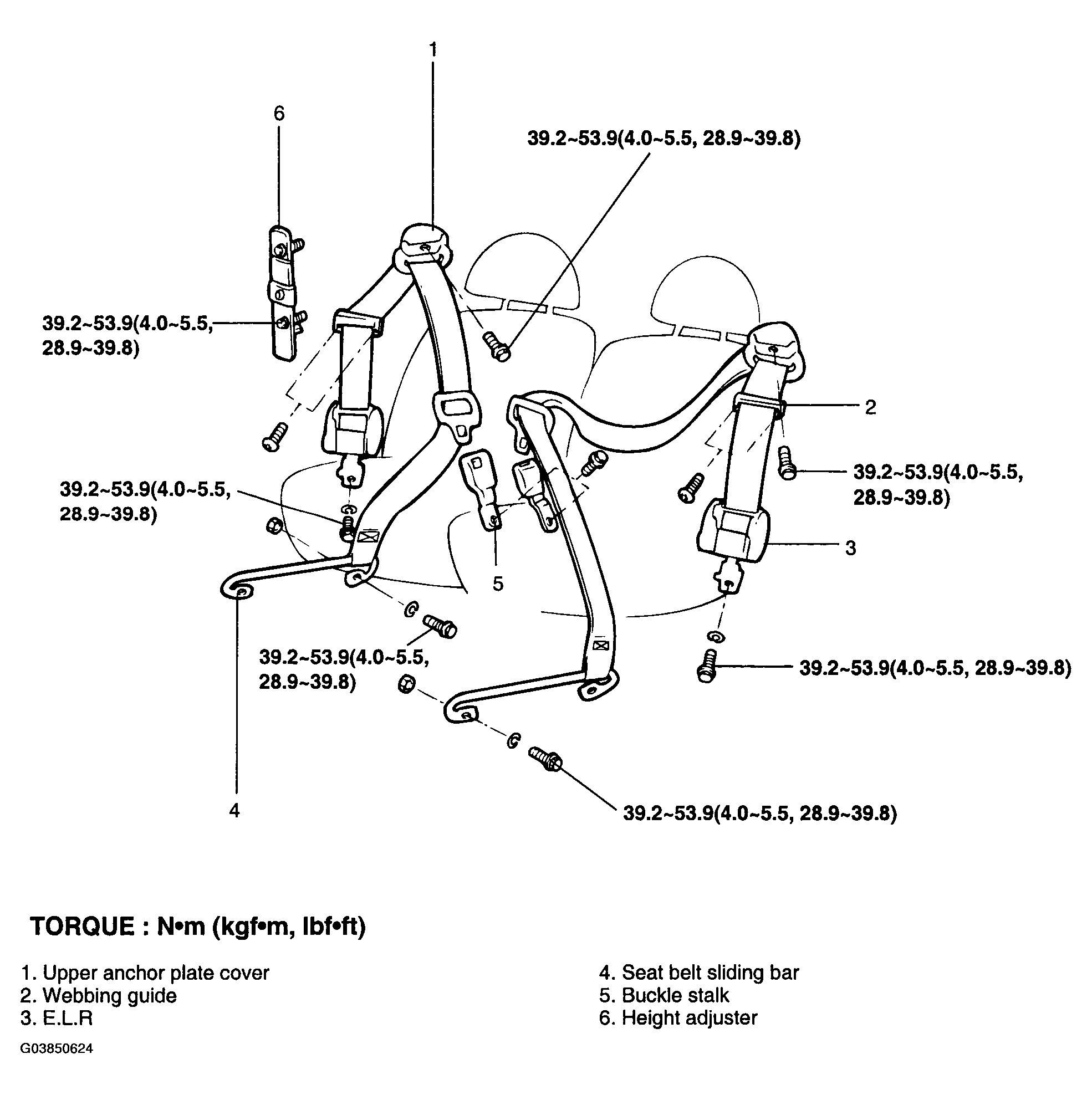

Fig 1: Front Seat Belt Replacement Components With Torque Specifications

G03850624

Courtesy of HYUNDAI MOTOR CO.
