Front Stabilizer Bar: Removal

  1. Remove the front wheel.
  2. Remove the stabilizer link assembly.

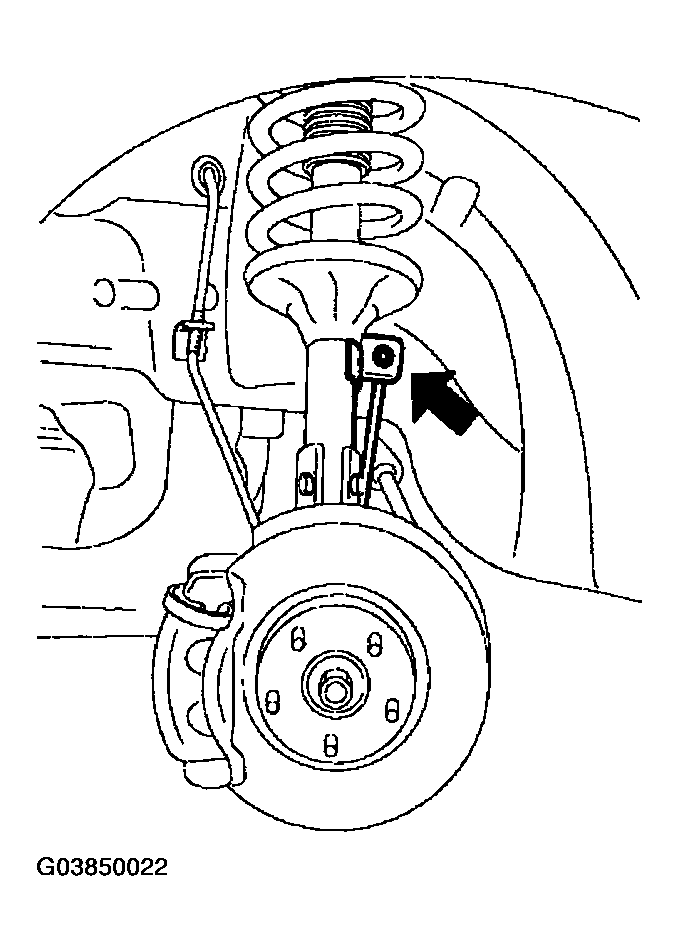

    Fig 1: Removing Stabilizer Link Assembly
    G03850022Courtesy of HYUNDAI MOTOR CO.
  3. Remove the stabilizer bracket and bushing.

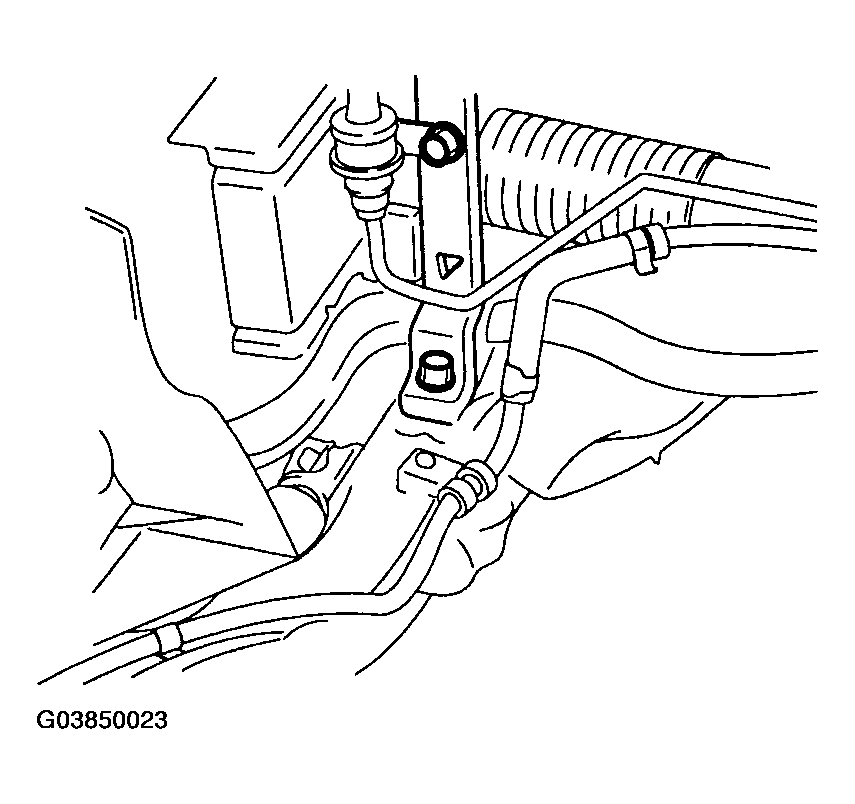

    Fig 2: Removing Stabilizer Bracket And Bushing
    G03850023Courtesy of HYUNDAI MOTOR CO.
  4. Remove the stabilizer bar.
