Front Strut Assembly: Removal

  1. Remove the front wheel.
  2. Detach the brake hose bracket from the strut assembly.
    NOTE: Do not apply excessive force to the components.
  3. Remove the stabilizer link.

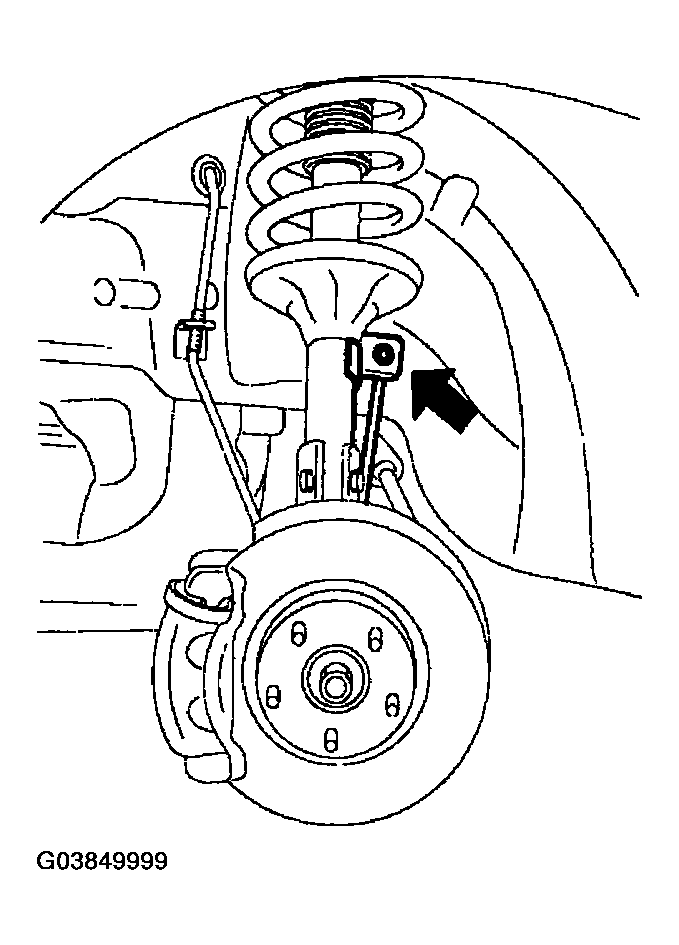

    Fig 1: Removing Stabilizer Link
    G03849999Courtesy of HYUNDAI MOTOR CO.
  4. Remove the strut upper mounting bolts(3).

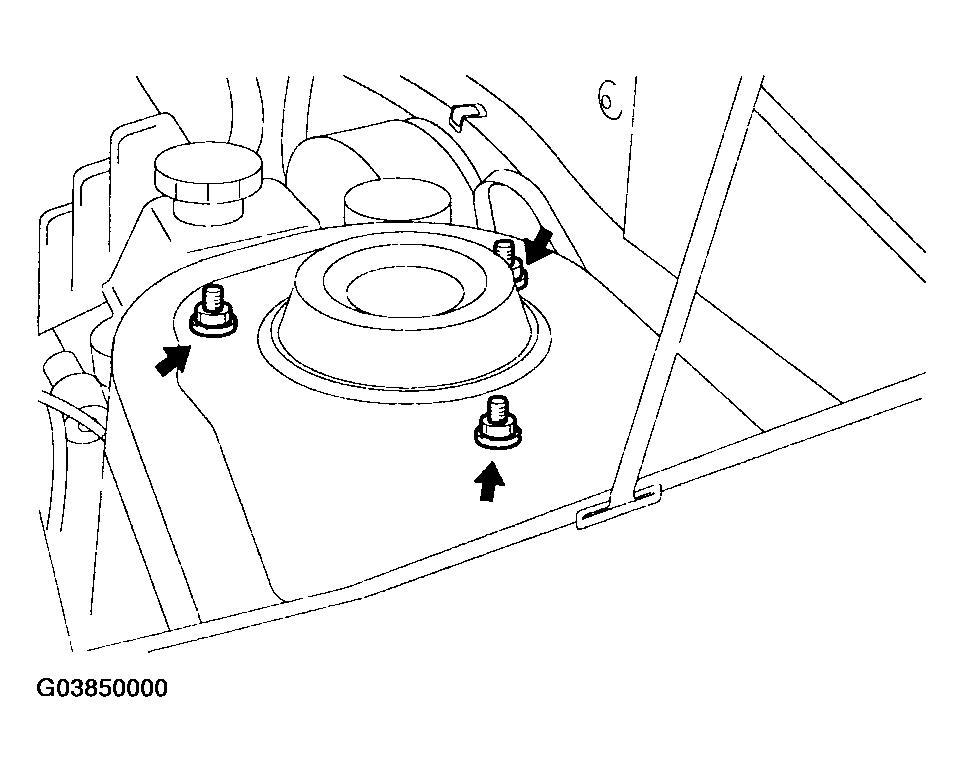

    Fig 2: Removing Strut Upper Mounting Bolts
    G03850000Courtesy of HYUNDAI MOTOR CO.
  5. Remove the strut assembly.

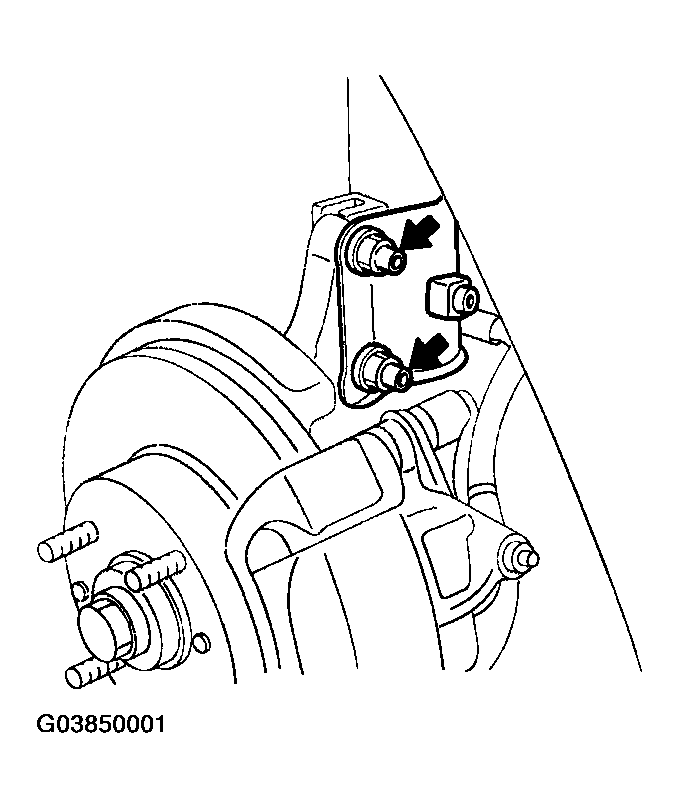

    Fig 3: Removing Strut Assembly
    G03850001Courtesy of HYUNDAI MOTOR CO.
