Front Strut Assembly: Installation

  1. When installing the front strut, be sure to clear the connecting surface.
  2. Install the strut assembly so the identification label on the strut insulator faces toward the inside of vehicle.

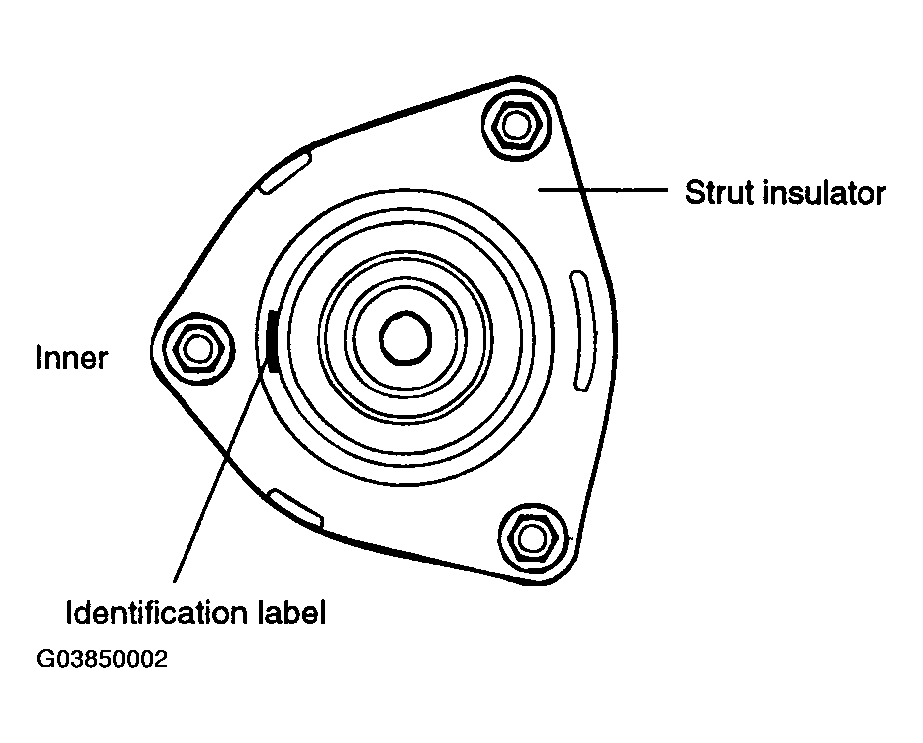

    Fig 1: Locating Identification Label
    G03850002Courtesy of HYUNDAI MOTOR CO.
  3. Tighten the components below to the specified torque as follows.
    TIGHTENING TORQUE

    Items Torque Nm (kgf.cm, lbf.ft)
    Front strut upper mounting nut 45~60 (450~600, 33~44)
    Front strut to knuckle 140~160 (1400~1600, 104~118)
    Stabilizer link nut 35~45 (350~450, 26~33)
  4. Install the brake hose and front wheel speed sensor wire on the front strut assembly.
