Home >> Hyundai >> 2005 >> Tiburon GS, Automatic >> Repair and Diagnosis >> Suspension >> Front Suspension System >> Front Strut Assembly >> Components

Front Strut Assembly: Components

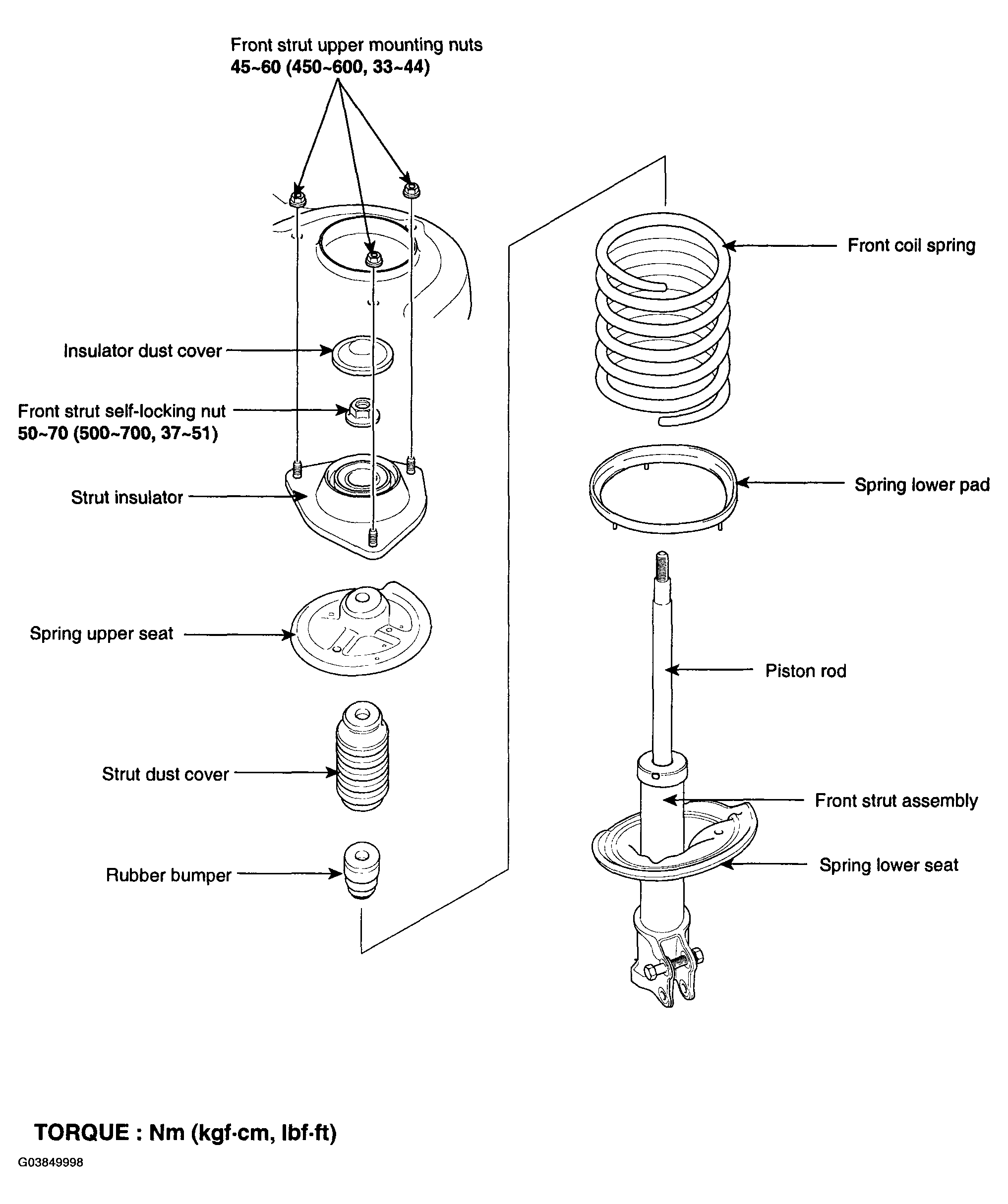

Fig 1: Front Strut Assembly Replacement Components With Torque Specifications

G03849998

Courtesy of HYUNDAI MOTOR CO.
