Front Stabilizer Bar: Components

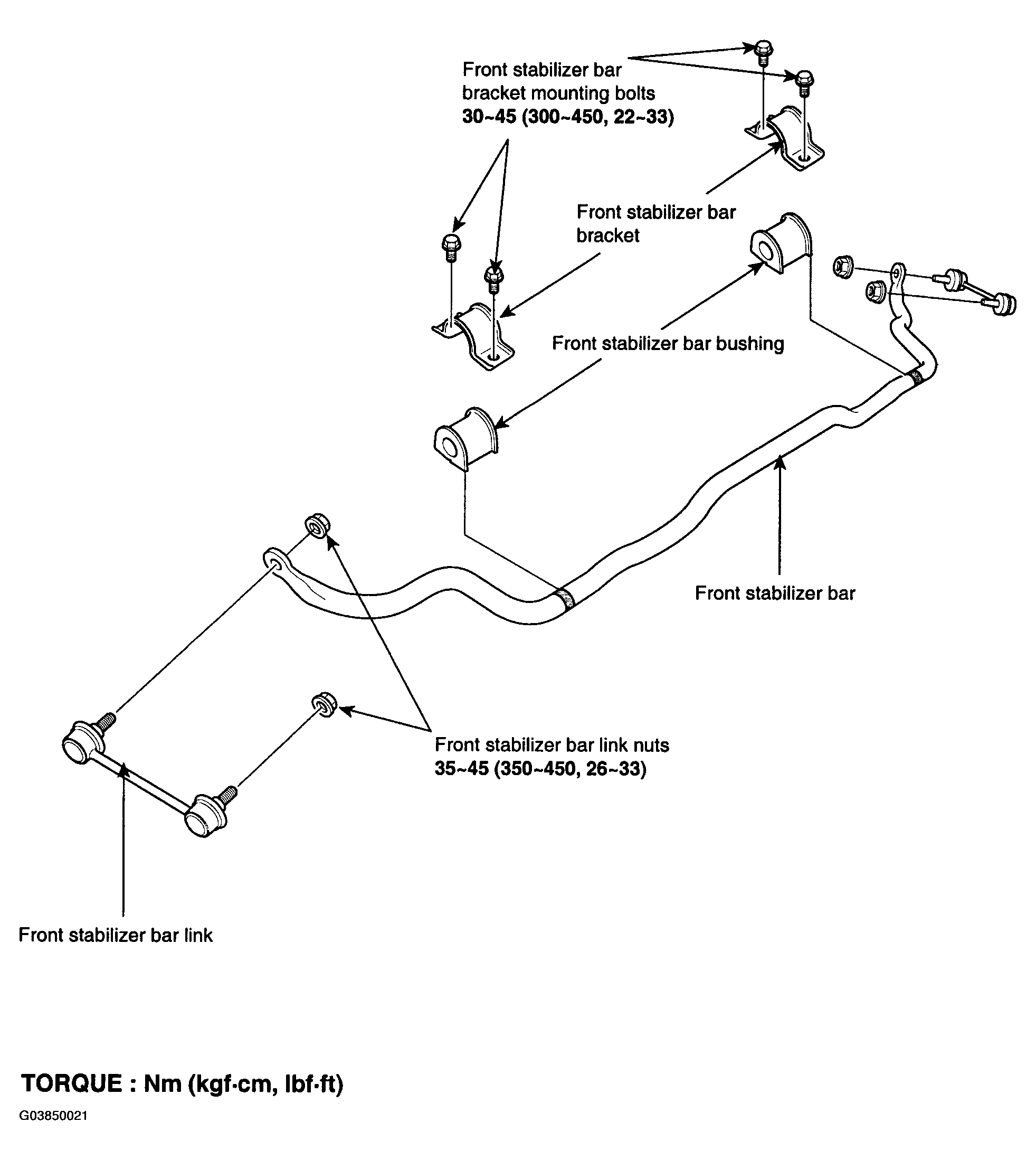

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications

G03850021

Courtesy of HYUNDAI MOTOR CO.
