Front Lower Arm: Components

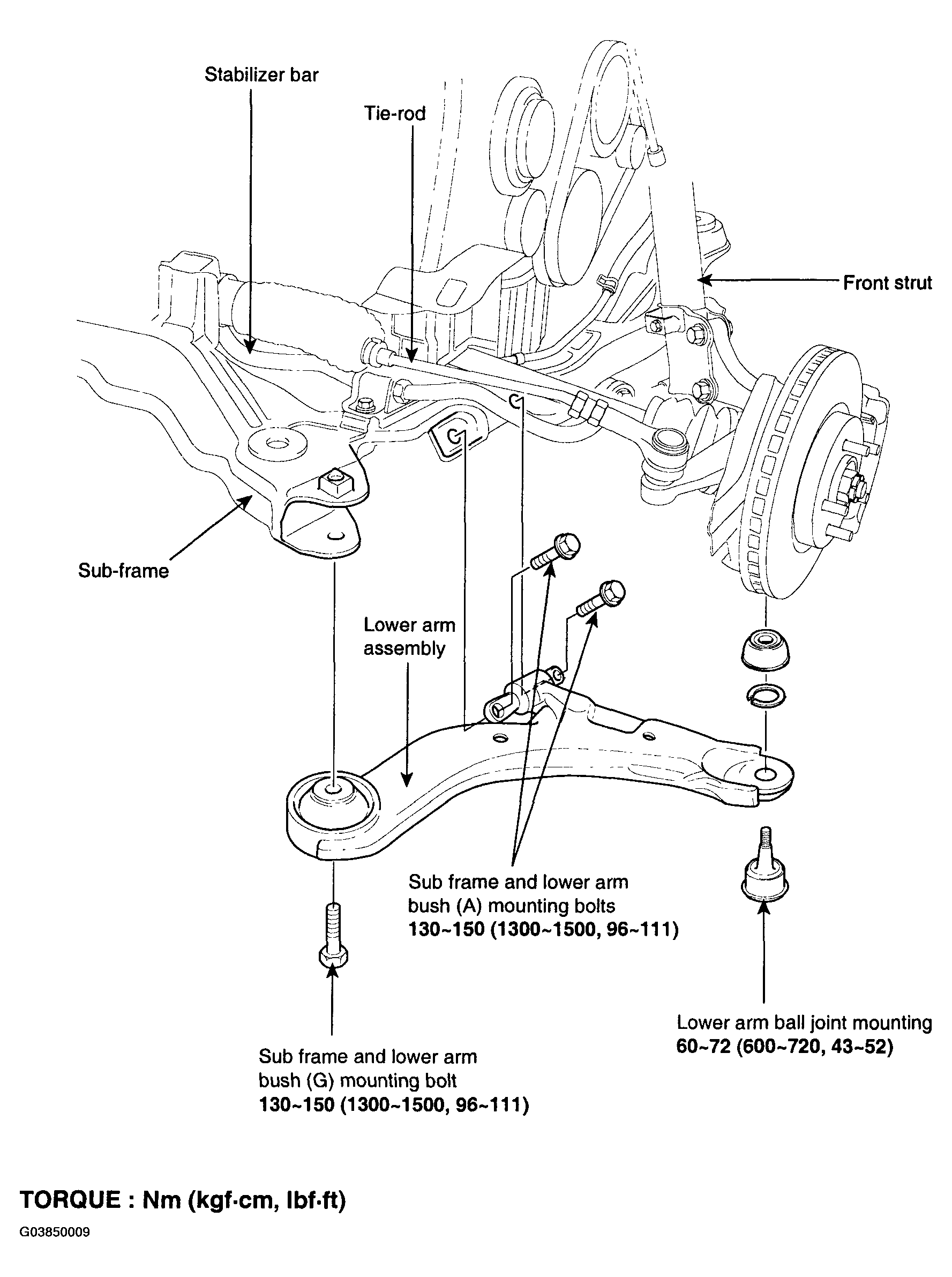

Fig 1: Front Lower Arm Replacement Components With Torque Specifications

G03850009

Courtesy of HYUNDAI MOTOR CO.
