Fuel Tank: Removal

  1. Remove the rear seat cushion (Refer to "REAR SEAT ").
  2. Open the service cover (A) under the rear seat cushion.

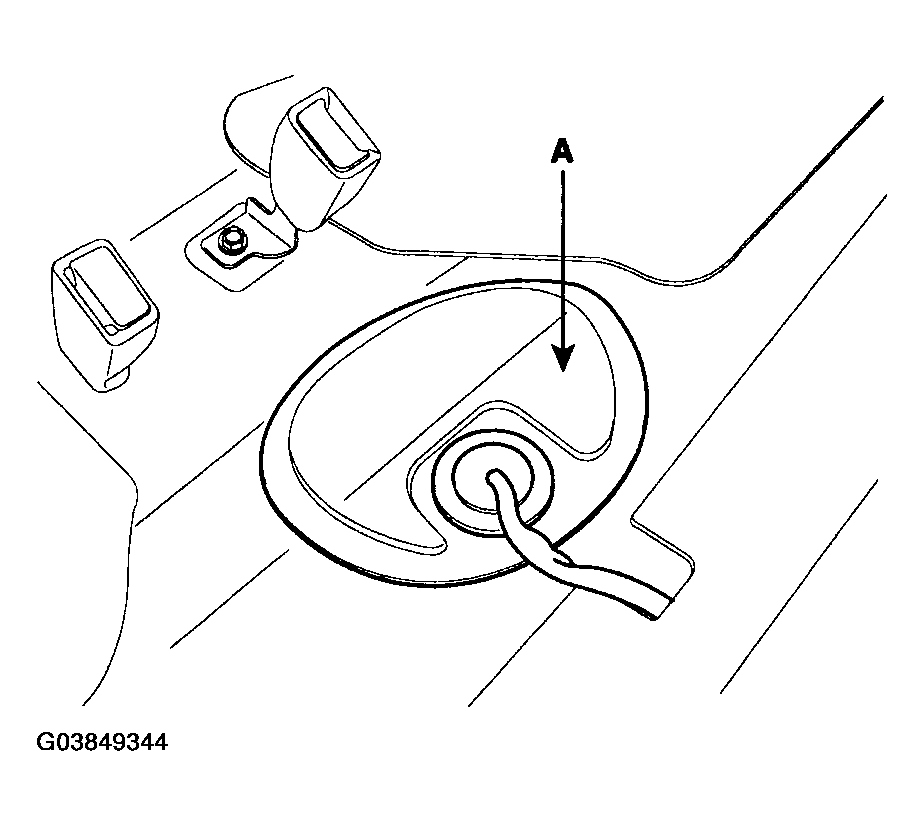

    Fig 1: Opening Service Cover Under The Rear Seat Cushion
    G03849344Courtesy of HYUNDAI MOTOR CO.
  3. Release the internal pressure of the fuel lines and hoses as following:
    1. Disconnect the fuel pump assembly harness connector (A).
    2. Start the engine and wait until fuel in fuel line is exhausted. After the engine stalls, turn the ignition switch to OFF position.
    3. Disconnect the negative (-) terminal from the battery.
  4. Disconnect the fuel feed line (B).

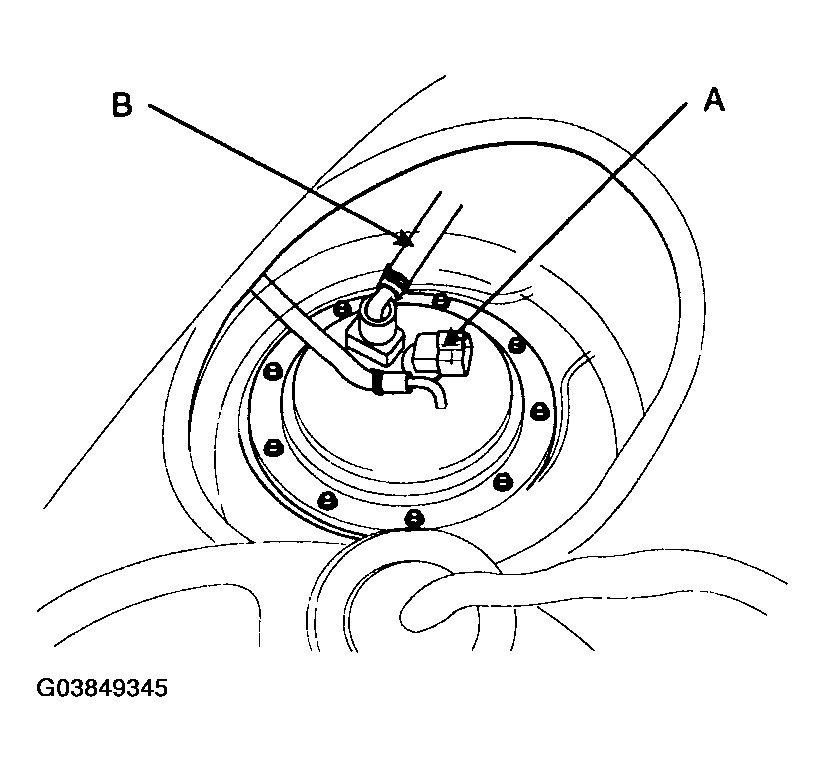

    Fig 2: Locating Fuel Pump Assembly Harness Connector And Fuel Feed Line
    G03849345Courtesy of HYUNDAI MOTOR CO.
    CAUTION: Cover the hose connection with a shop towel to prevent splashing of fuel caused by residual pressure in the fuel line
  5. Lift the vehicle.
  6. Disconnect the hoses connected to the fuel tank.
  7. Remove the muffler (A) (Refer to "INTAKE AND EXHAUST SYSTEM ").

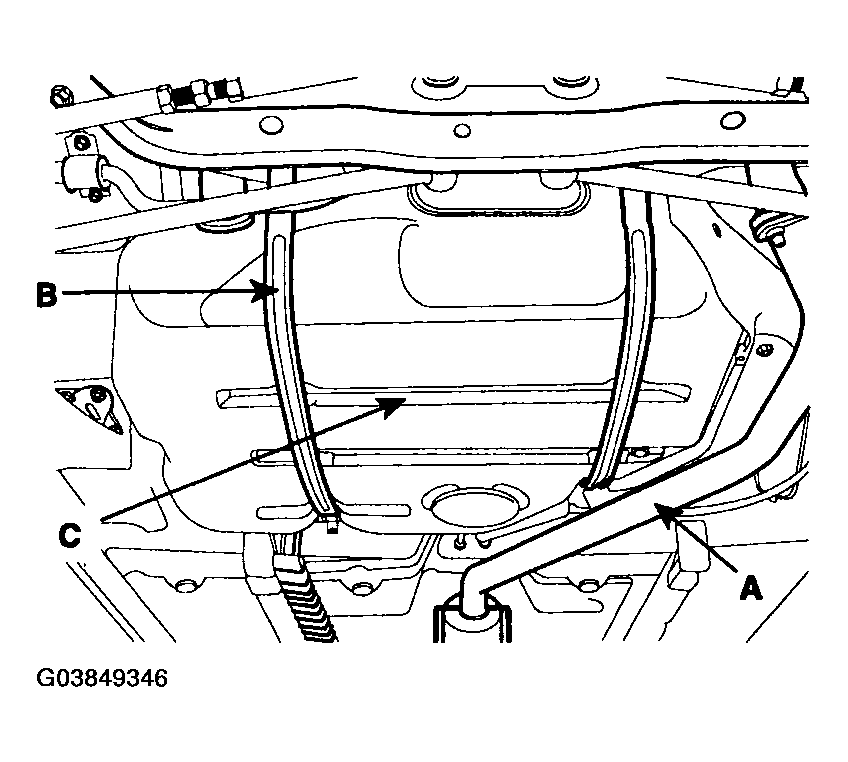

    Fig 3: Removing Fuel Tank Band And Fuel Tank
    G03849346Courtesy of HYUNDAI MOTOR CO.
  8. Remove the fuel tank band (B) and remove the fuel tank (C).
