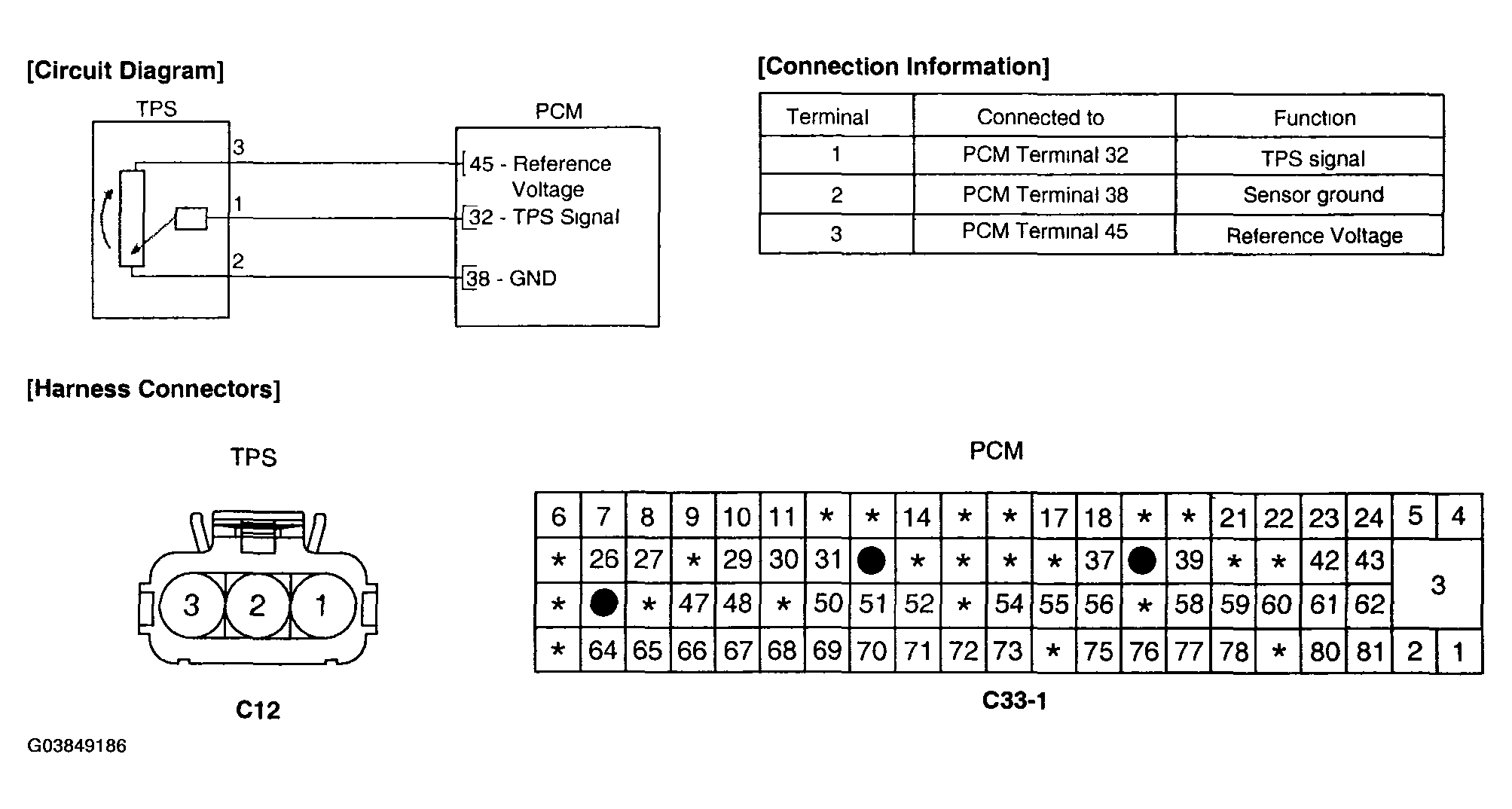

Home >> Hyundai >> 2005 >> Tiburon GS, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G4GC-GSL 2.0L) >> DTC Troubleshooting Procedures >> DTC P0121 Throttle/Pedal Position Sensor/Switch "A" Circuit Range/Performance >> Schematic Diagram
