Starter Relay: Inspection

Remove the fuse box cover.
Remove the starter relay (A).

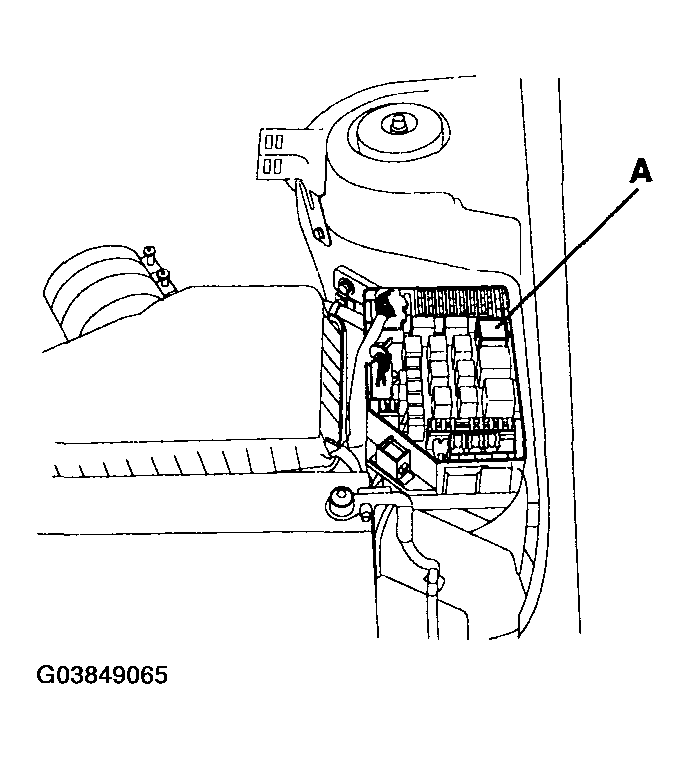

Fig 1: Removing Starter Relay
Courtesy of HYUNDAI MOTOR CO.
Inspect the relay continuity.
- Using an ohmmeter, check that there is continuity between terminals 2 and 4.
  If there is no continuity, replace the relay.
- Check that there is no continuity between terminals 1 and 5.
  If there is continuity, replace the relay.

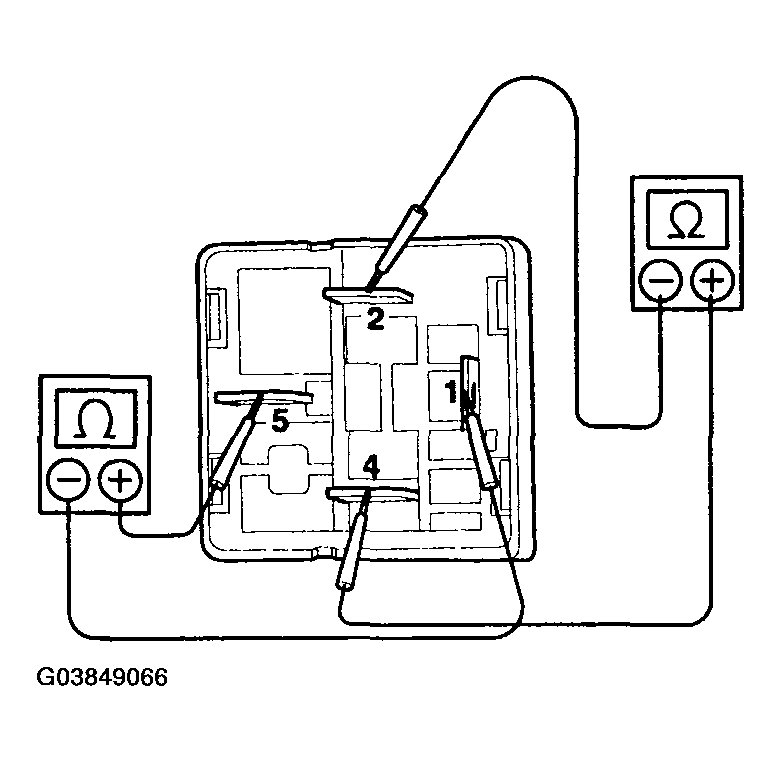

Fig 2: Inspecting Relay Continuity
Courtesy of HYUNDAI MOTOR CO.
Inspect the relay operation.
- Apply battery positive voltage across terminals 2 and 4.
- Using an ohmmeter, check that there is continuity between terminals 1 and 5.
  If there is no continuity, replace the relay.

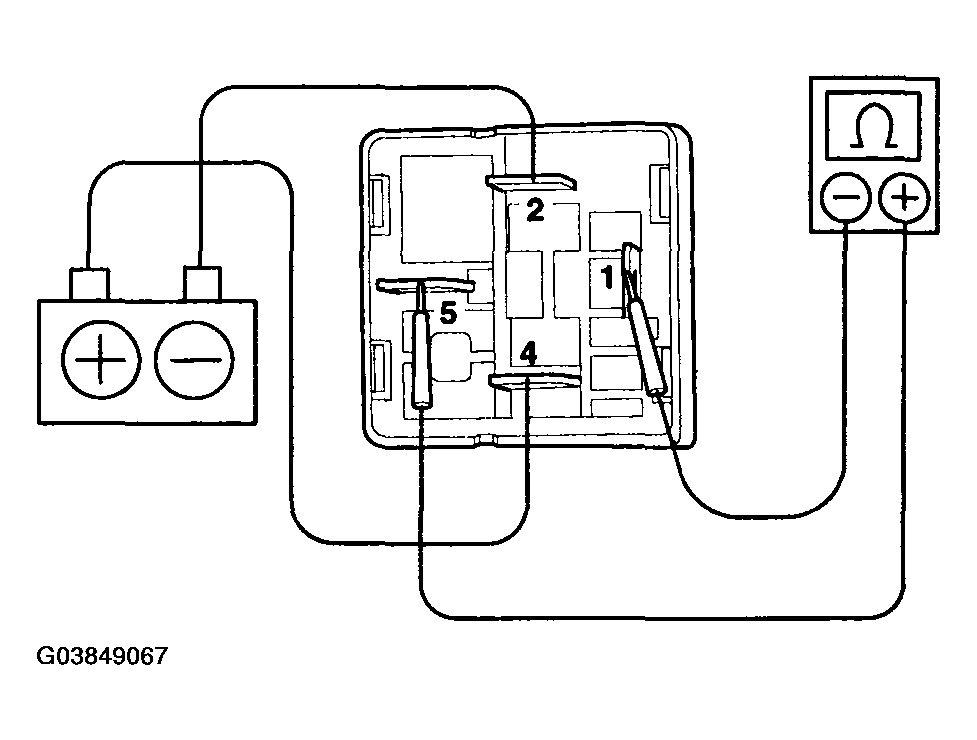

Fig 3: Inspecting Relay Operation
Courtesy of HYUNDAI MOTOR CO.
Install the starter relay.
Install the fuse box cover.
