2.7 V6 Engine

Disconnect the battery negative terminal first then the positive terminal.
Loosen the drive belt tension adjusting bolt, then remove the drive belt (A).

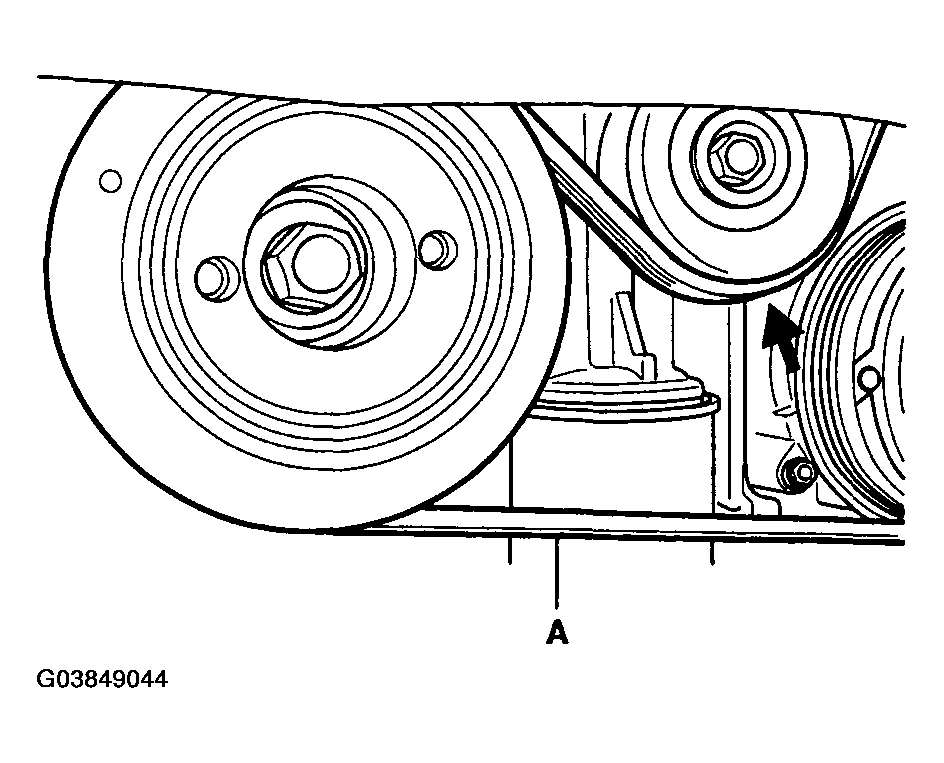

Fig 1: Loosening Drive Belt Tension Adjusting Bolt
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A) and "B" terminal cable (B).

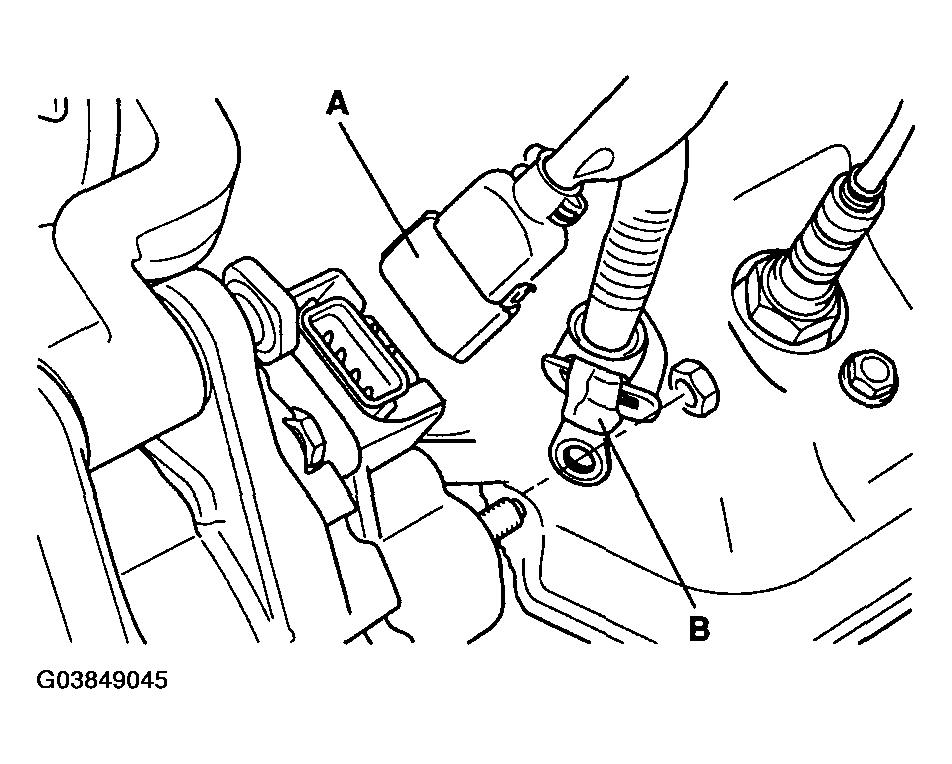

Fig 2: Disconnecting Connector And "B" Terminal Cable
Courtesy of HYUNDAI MOTOR CO.
Pull out the through bolts (A) and nuts (B) then remove the generator (C).

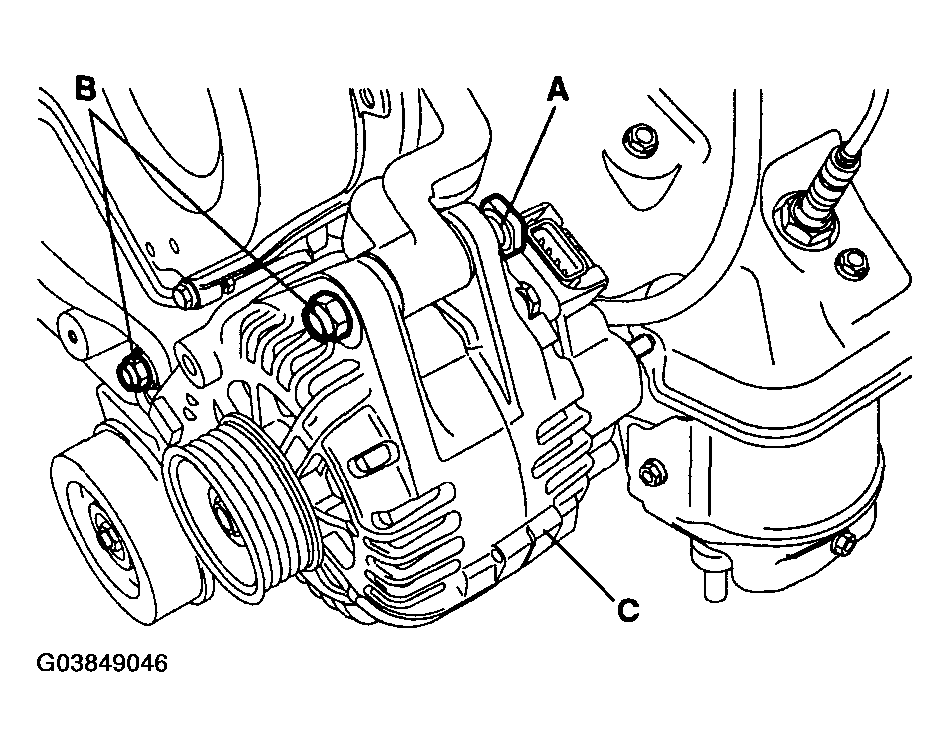

Fig 3: Pulling Out Through Bolts, Nuts And Generator
Courtesy of HYUNDAI MOTOR CO.
Installation Is Reverse Of Removal.
NOTE:
- Adjust The Generator Belt. (Refer To ALTERNATOR BELT INSPECTION AND ADJUSTMENT )
- Place The Alternator And Insert A Support Bolt (Do Not Insert A Nut This Time).
- After Pushing The Alternator Forward, Count That How Many Spacers (A Spacer Thickness: 0.198 Mm) Should Be Inserted Between The Alternator Front Leg And Front Case As Shown In "A".
- After Inserting Spacers, Insert And Tighten A Nut Securely.
Fig 4: Identifying Spacer Thickness
Courtesy of HYUNDAI MOTOR CO.
