2.0 DOHC Engine

  1. Disconnect the battery negative terminal first, then the positive terminal.
  2. Disconnect the generator connector (A) and "B" terminal cable (B) from the generator (C).

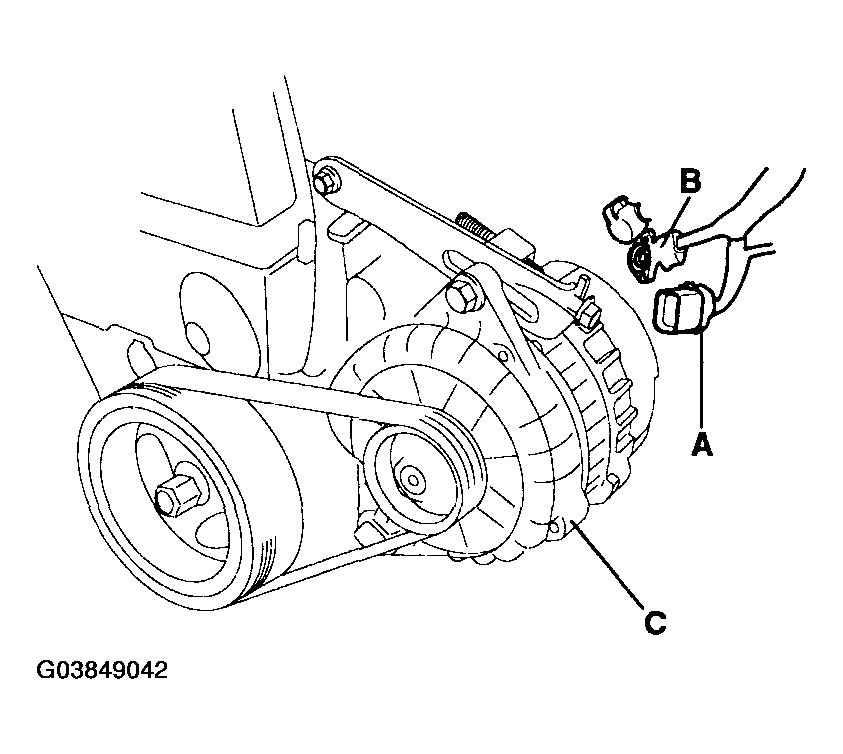

    Fig 1: Disconnecting Generator Connector And Terminal Cable From Generator
    G03849042Courtesy of HYUNDAI MOTOR CO.
  3. Remove the adjusting bolt (A) and mounting bolt (B), then remove the generator belt (C).
  4. Pull out the through bolt (C), then remove the generator (D).

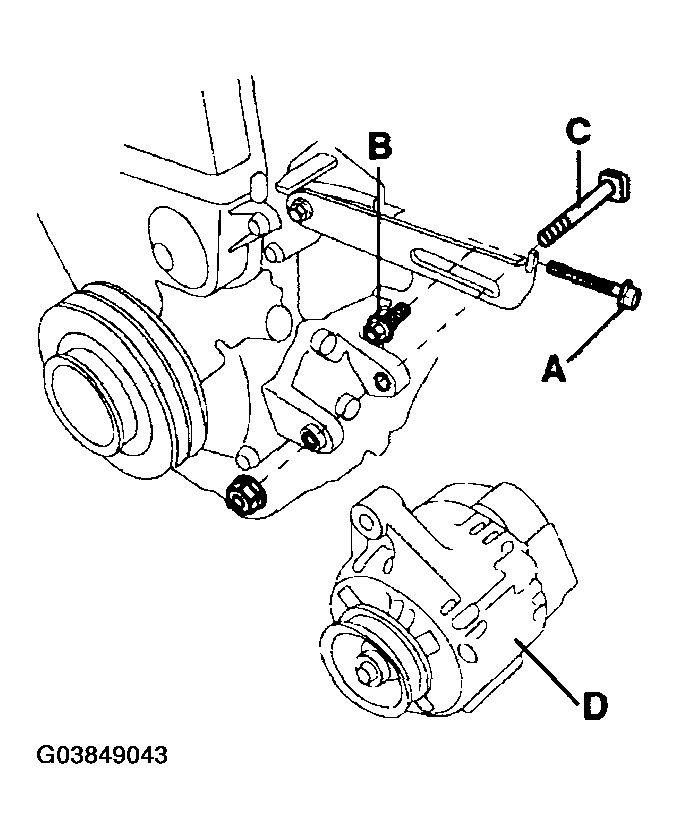

    Fig 2: Removing Adjusting Bolt, Mounting Bolt, Through Bolt And Generator
    G03849043Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
  6. Adjust the generator belt tension after installation (See ALTERNATOR BELT INSPECTION AND ADJUSTMENT  ).
