2.0 DOHC Engine

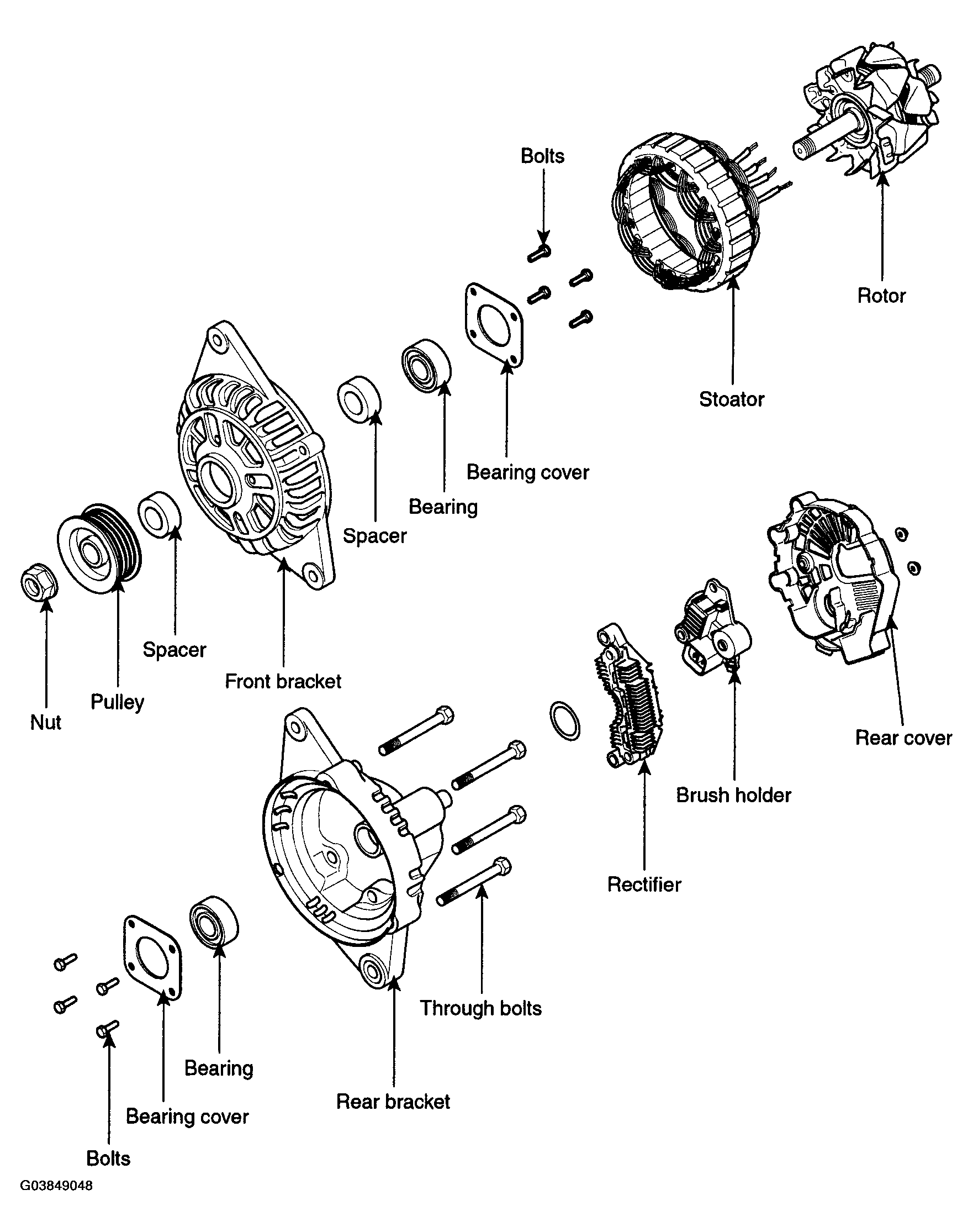

Fig 1: Identifying Components Charging System- 2.0 DOHC Engine

G03849048

Courtesy of HYUNDAI MOTOR CO.
