Output Characteristic

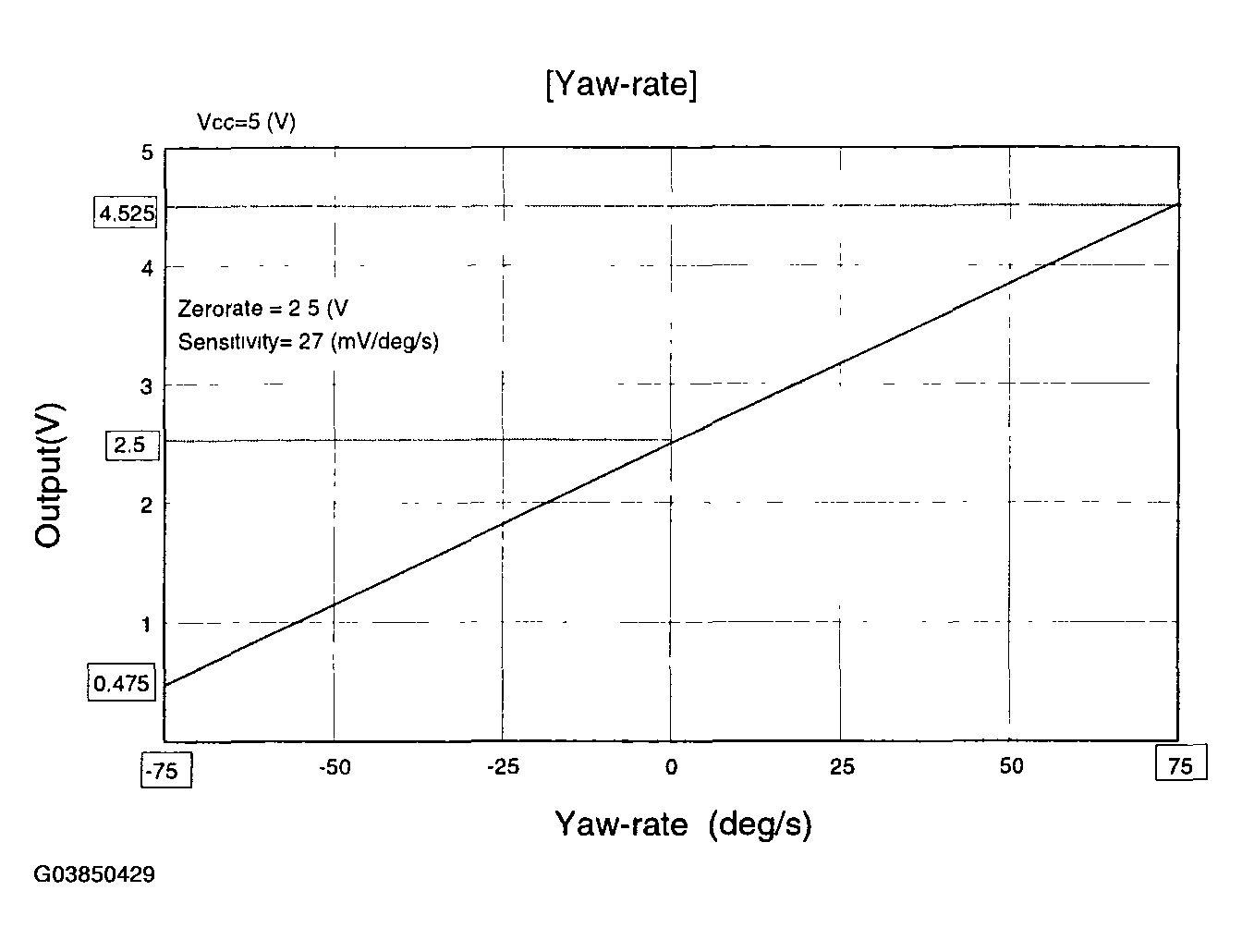

Fig 1: Identifying Output Characteristic Graph (1 Of 2)

G03850429

Courtesy of HYUNDAI MOTOR CO.

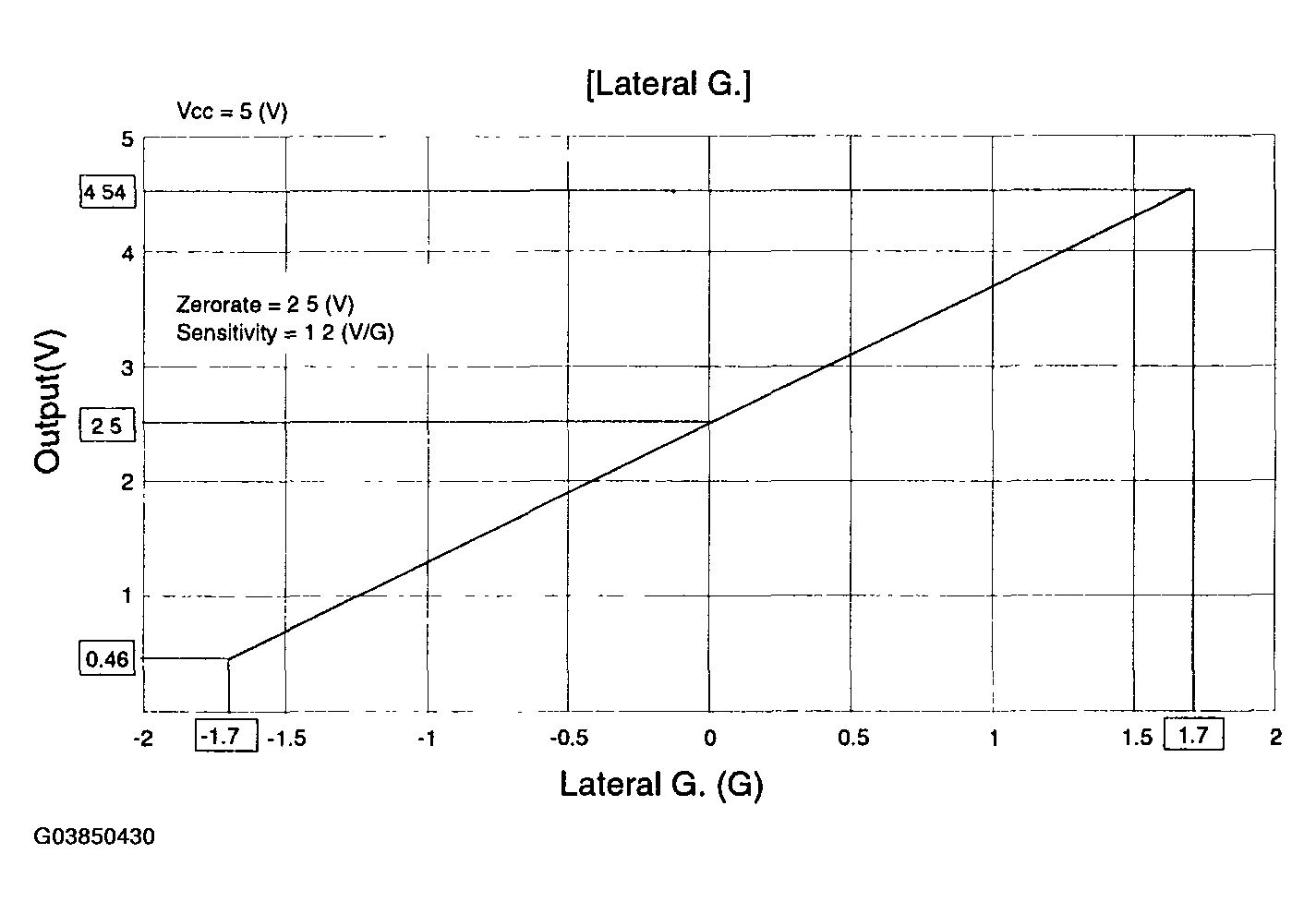

Fig 2: Identifying Output Characteristic Graph (2 Of 2)

G03850430

Courtesy of HYUNDAI MOTOR CO.
