Esp Switch: Inspection

  1. Remove the ESP OFF switch from the switch panel on the crush pad of the driver's side.

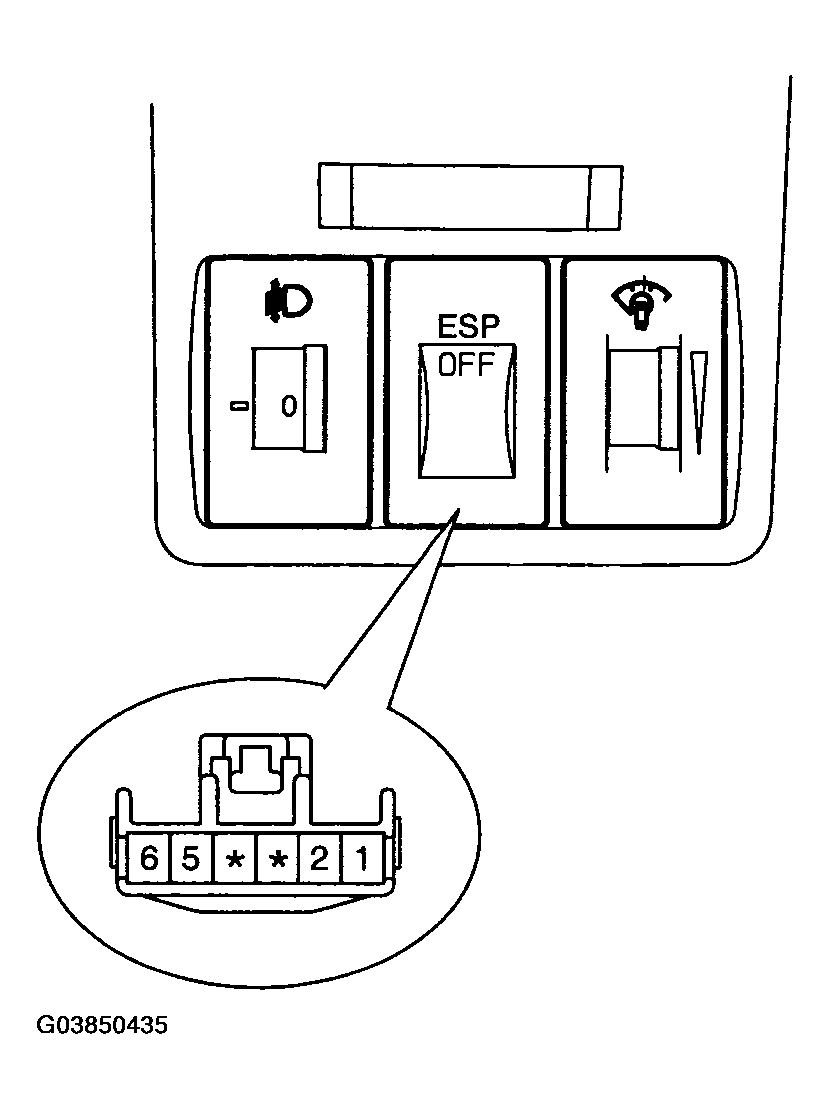

    Fig 1: Removing ESP Off Switch From Switch Panel
    G03850435Courtesy of HYUNDAI MOTOR CO.
  2. Check the continuity between the switch terminals as the ESP OFF switch is engaged.
    Fig 2: Checking Continuity Between ESP Switch Terminals
    G03850436Courtesy of HYUNDAI MOTOR CO.
