Anti-Lock Braking System Wheel Speed Sensor: Components

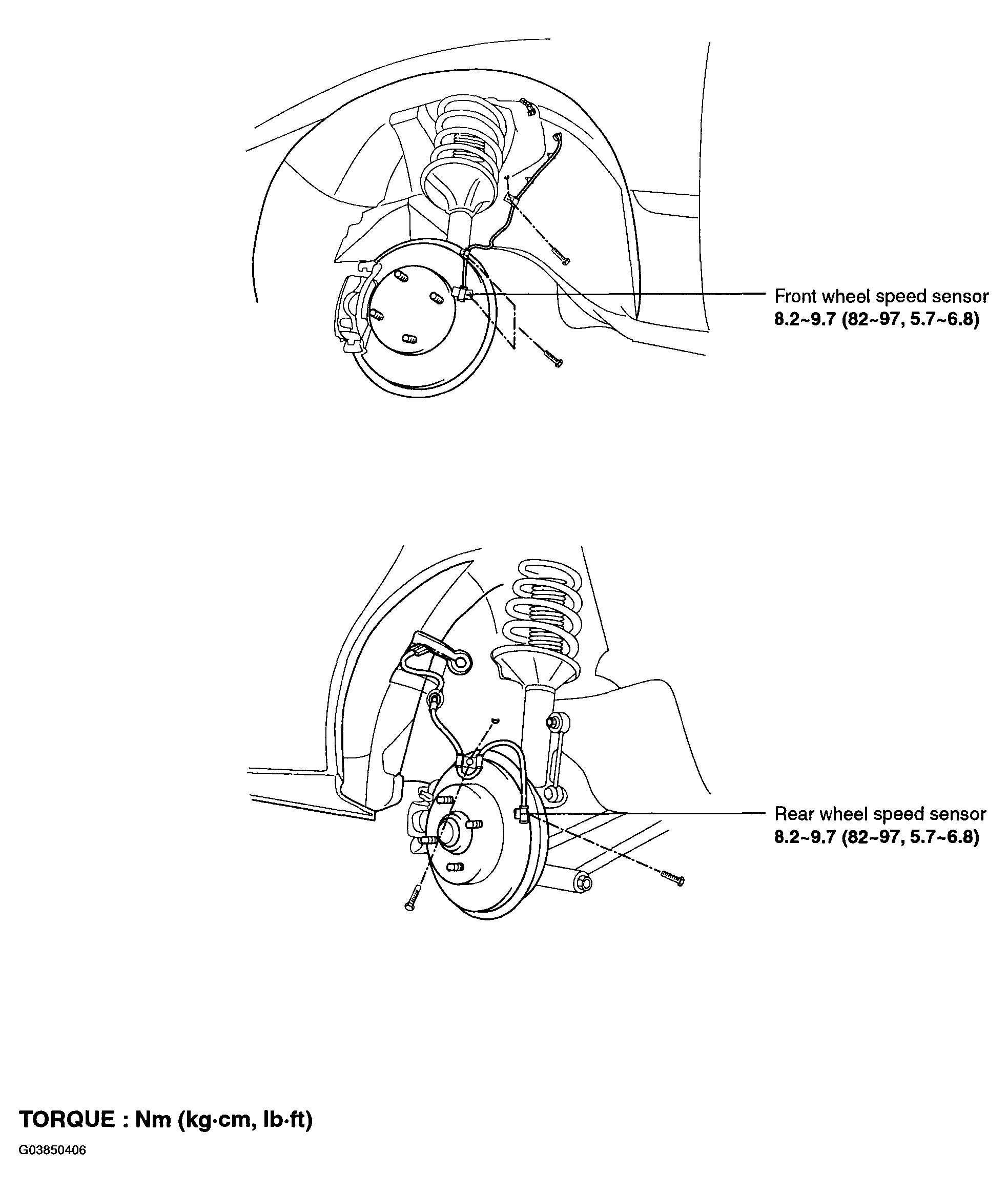

Fig 1: Anti-Lock Braking System Wheel Speed Sensor Component With Torque Specs.

G03850406

Courtesy of HYUNDAI MOTOR CO.
