Circuit Diagram

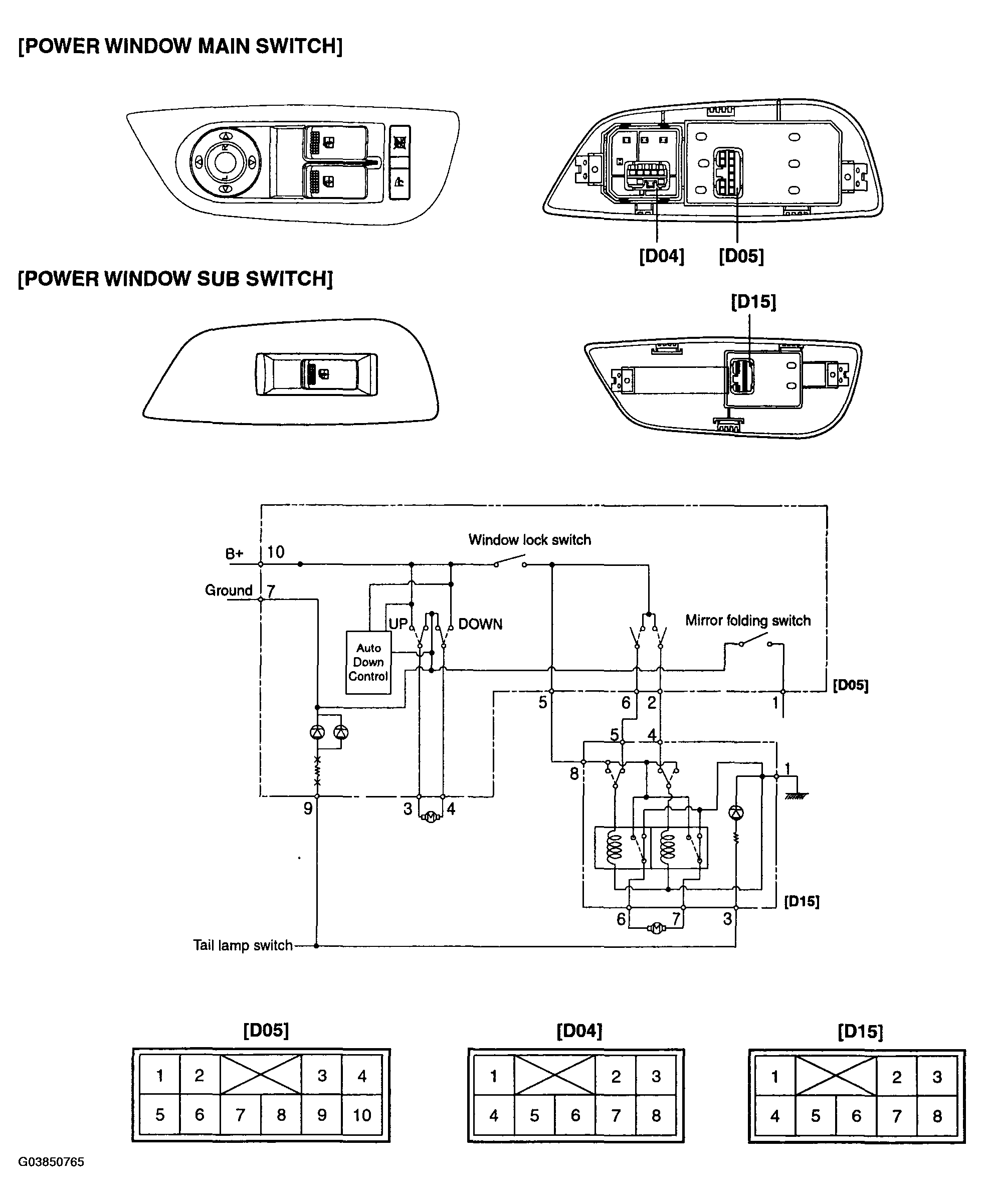

Fig 1: Power Window Switch Circuit Diagram

G03850765

Courtesy of HYUNDAI MOTOR CO.
