Tail Gate: Adjustment

  1. Adjust the striker upward or downward, and rightward or leftward until the tailgate is flush with the rear edge of the body.

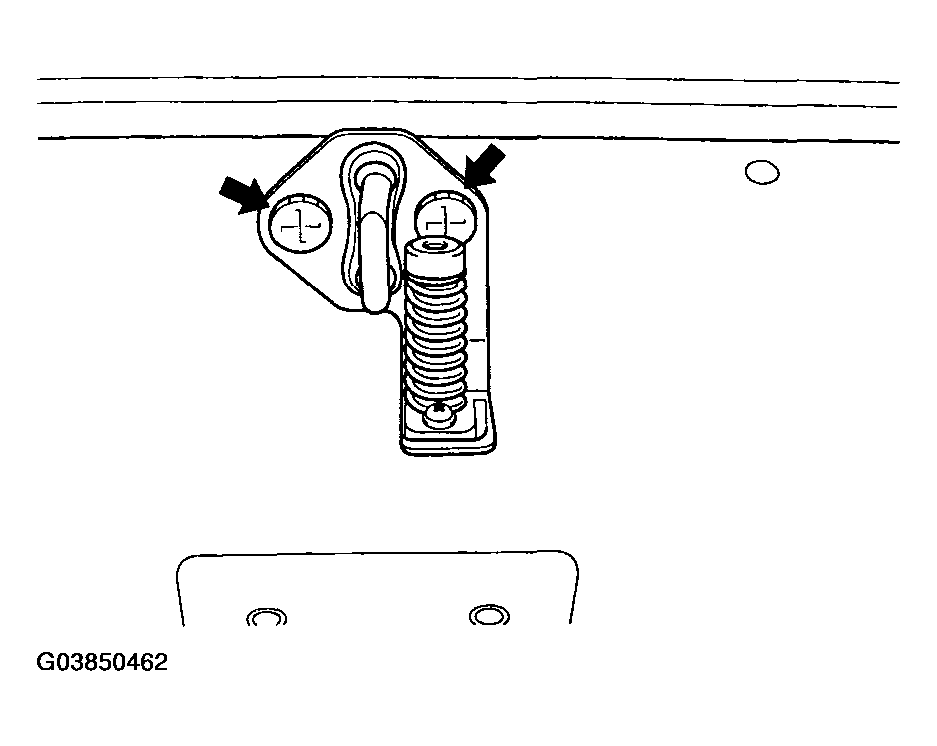

    Fig 1: Adjusting Striker
    G03850462Courtesy of HYUNDAI MOTOR CO.
  2. Adjust the tailgate hinges rightward or leftward as necessary to equalizer the gap between the tailgate and body.

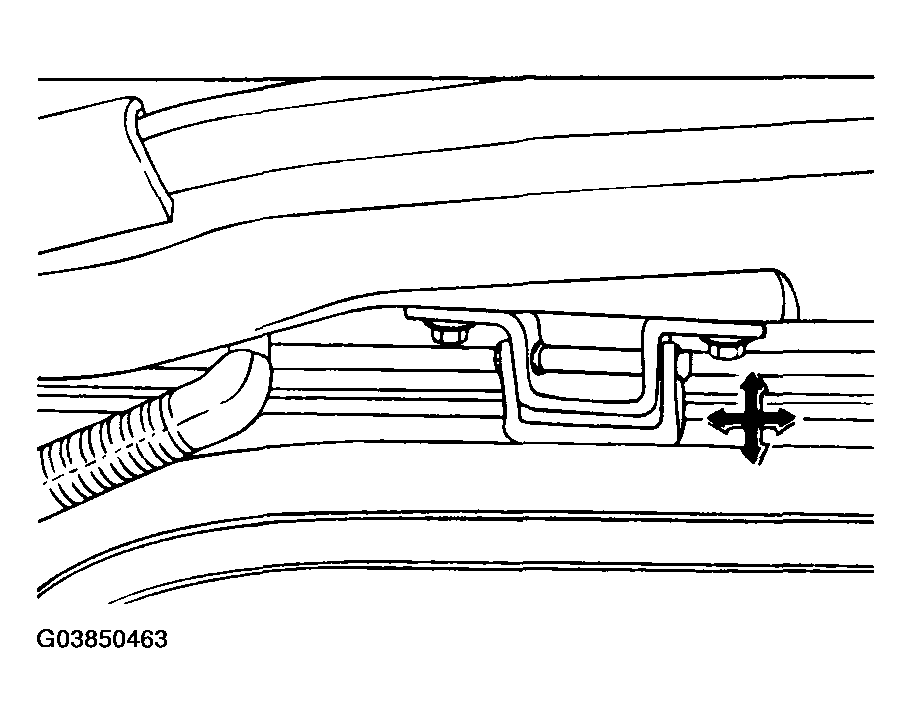

    Fig 2: Adjusting Tailgate Hinges
    G03850463Courtesy of HYUNDAI MOTOR CO.
