Removal And Installation: Fender

  1. Remove the front mud guard and wheel guard.

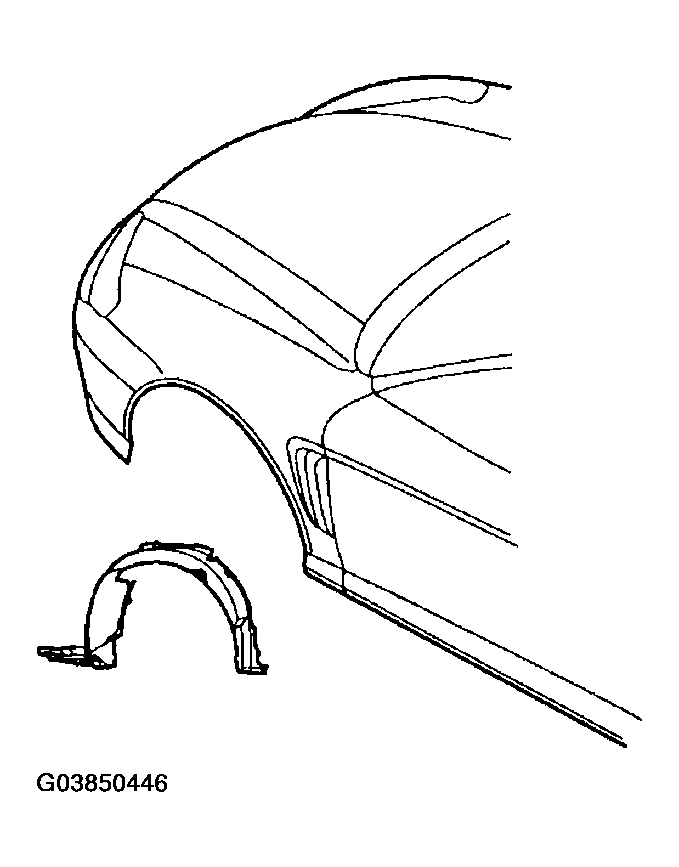

    Fig 1: Removing Front Mud Guard And Wheel Guard
    G03850446Courtesy of HYUNDAI MOTOR CO.
  2. Remove the 3 bolts holding the head lamp and disconnect the wire connector.

    Remove the head lamp assembly.

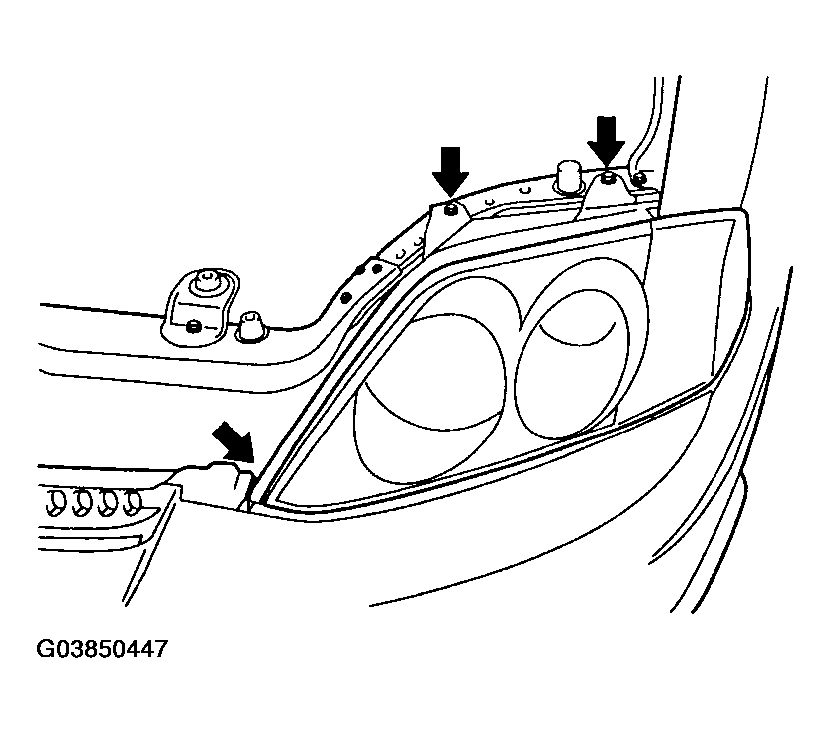

    Fig 2: Removing 3 Head Lamp Bolts
    G03850447Courtesy of HYUNDAI MOTOR CO.
  3. Remove the front bumper, (refer to FRONT BUMPER )
  4. Remove the fender mounting bolts and remove the fender panel assembly.
    CAUTION: Use care to avoid damaging the paint.

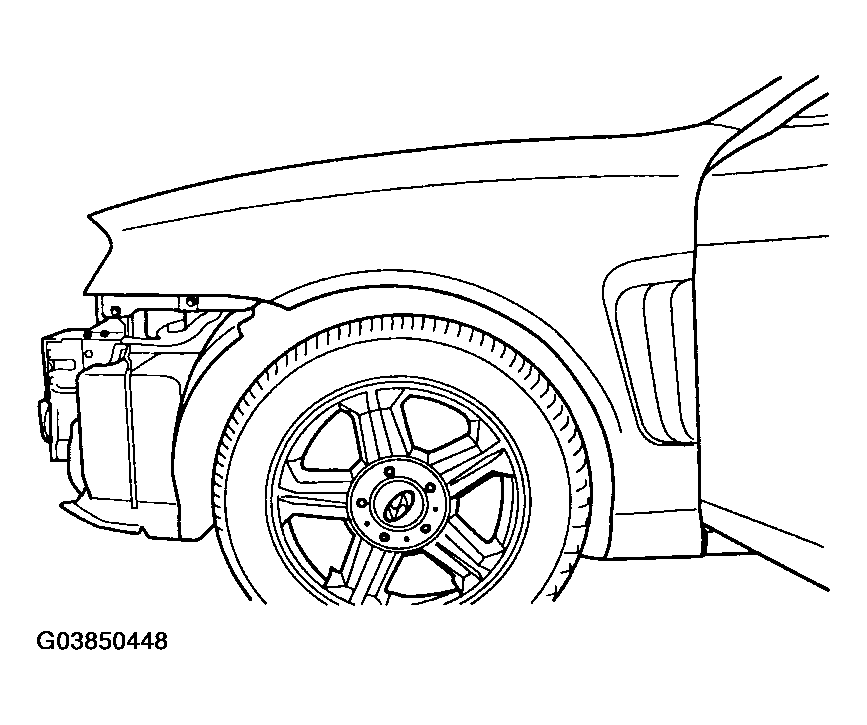

    Fig 3: Removing Fender Panel Assembly
    G03850448Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of the removal.
    NOTE: In order to prevent the fender mounting bolt area from forming rust, apply tape sealer between the fender and the body panel.
