Home >> Hyundai >> 2005 >> Tiburon GS, Automatic >> Repair and Diagnosis >> Body & Frame >> Seats >> Front Seat >> Components

Front Seat: Components

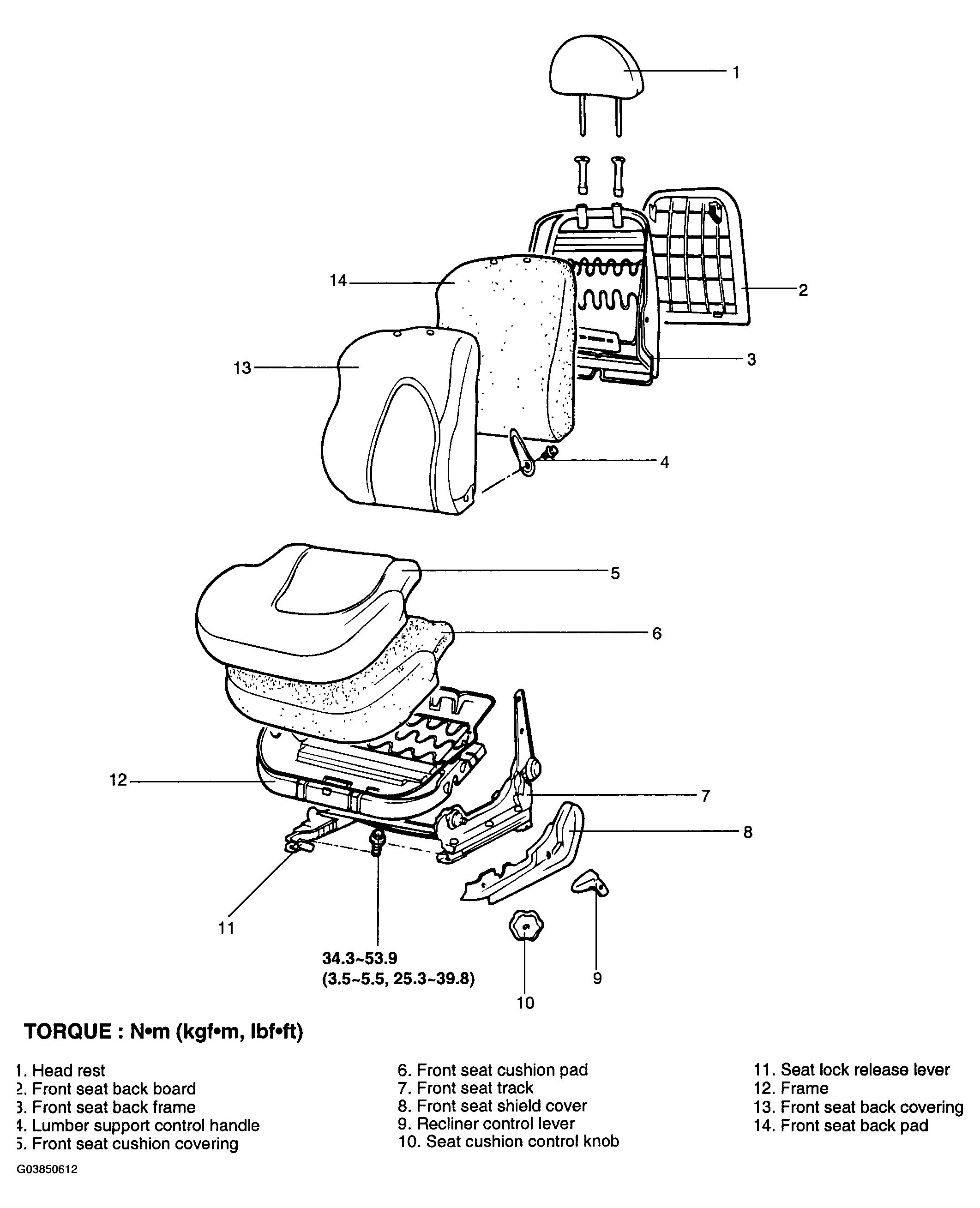

Fig 1: Front Seat Replacement Components With Torque Specifications

G03850612

Courtesy of HYUNDAI MOTOR CO.
