Immobilizer Control System: Components

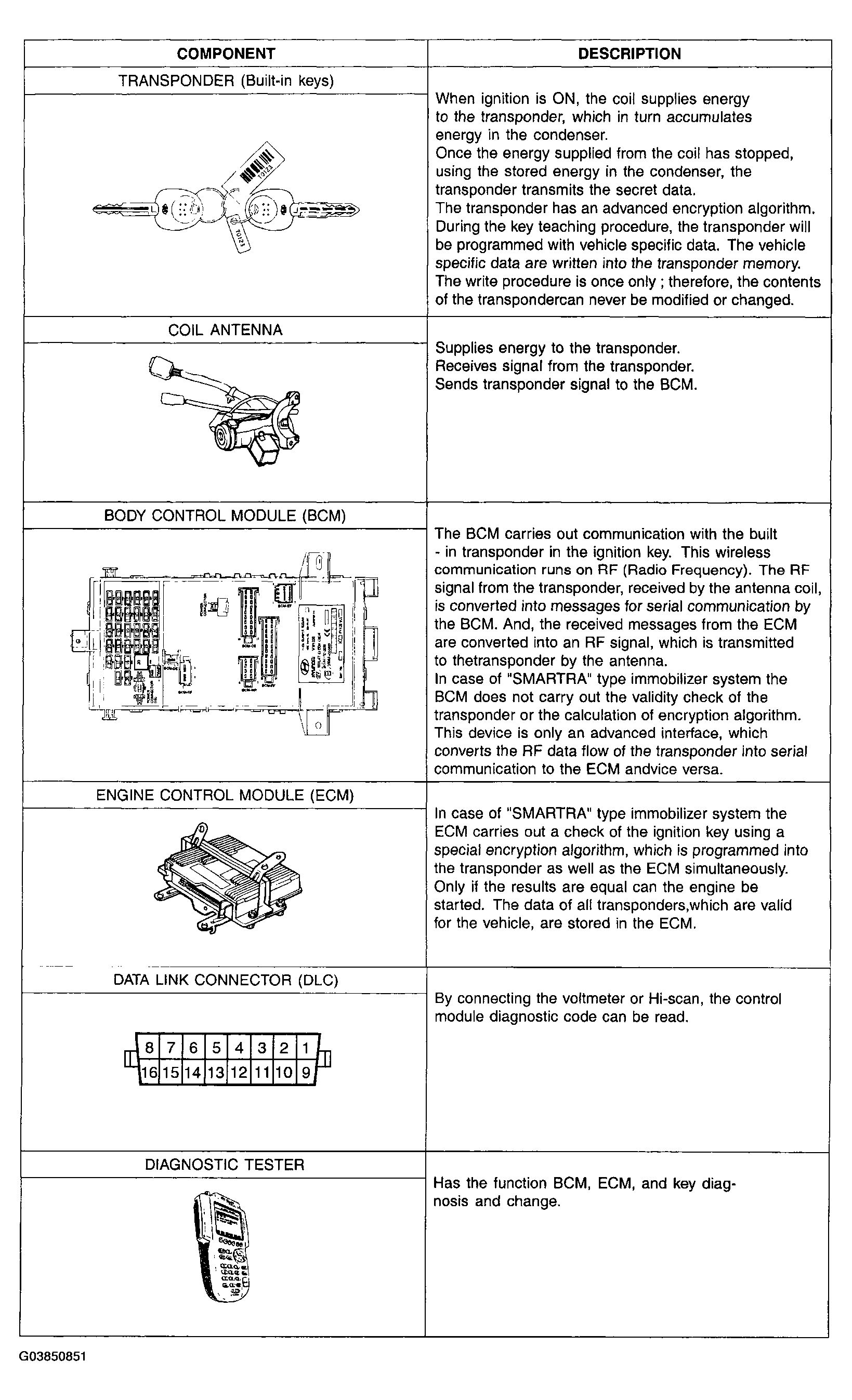

Fig 1: Immobilizer Control System Components Description Chart

G03850851

Courtesy of HYUNDAI MOTOR CO.
