Inspection Procedure 13

INSPECTION PROCEDURE 13 - TROUBLESHOOTING SYMPTOM

No diagnostic trouble codes (Does not shift) Probable cause
If shifting does not occur while driving and no diagnostic trouble codes are output, the cause is probably a malfunction of the Park/Neutral position switch, or TCM.
  • Malfunction of the Park/Neutral position switch
  • Malfunction of the TCM

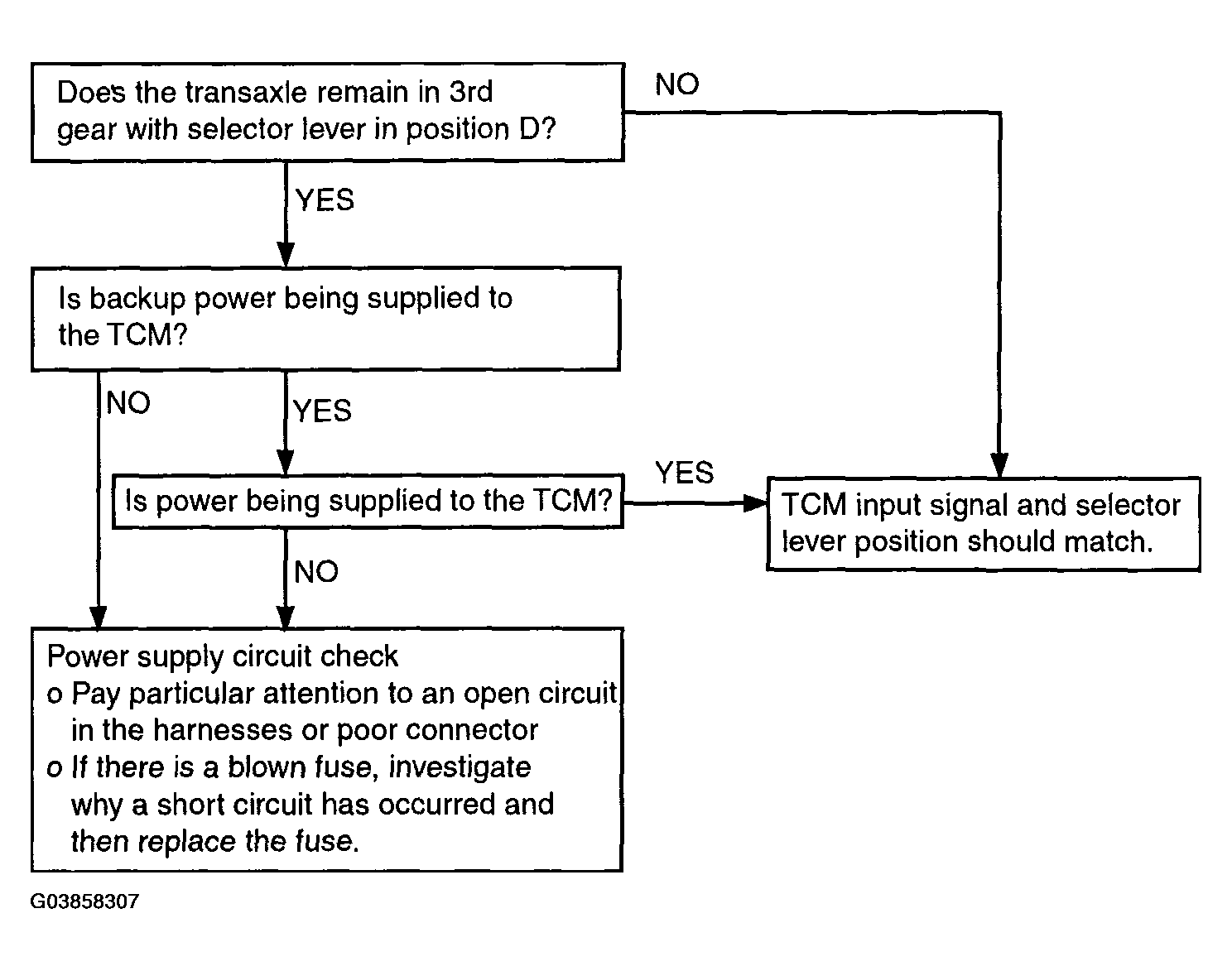

Fig 1: No Diagnostic Trouble Codes (Does Not Shift) - Troubleshooting Flow Chart
G03858307Courtesy of HYUNDAI MOTOR CO.
