Inspection Procedure 12

INSPECTION PROCEDURE 12 - TROUBLESHOOTING SYMPTOM

Some points (Displaced shifting points) Probable cause
If some of the shift points are displaced while driving, the cause is probably a malfunction of the valve body, or it is related to control and is not an abnormality.
  • Malfunction of the valve body

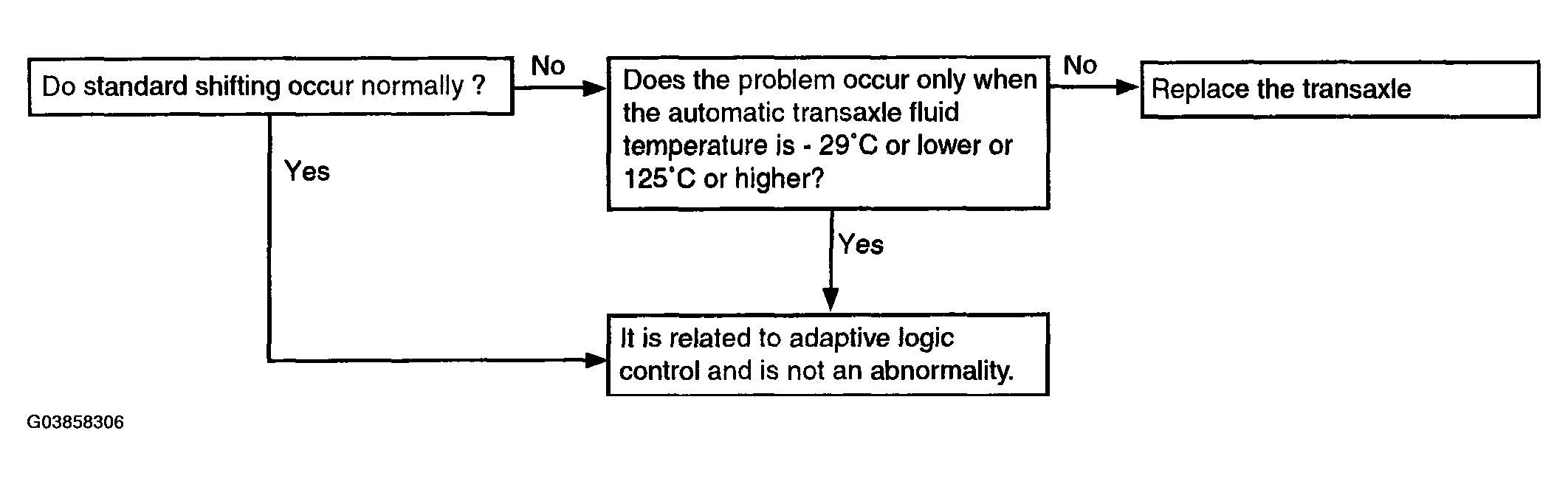

Fig 1: Some Points (Displaced Shifting Points) - Troubleshooting Flow Chart
G03858306Courtesy of HYUNDAI MOTOR CO.
