Inspection Procedure 11

INSPECTION PROCEDURE 11 - TROUBLESHOOTING SYMPTOM

All points (Displaced shifting points)	Probable cause
If all shift points are displaced while driving, the cause is probably a malfunction of the output shaft speed sensor, TPS or a solenoid valve.	Malfunction of the output shaft speed sensor Malfunction of the throttle position sensor Malfunction of each solenoid valve Abnormal line pressure Malfunction of the valve body Malfunction of the TCM

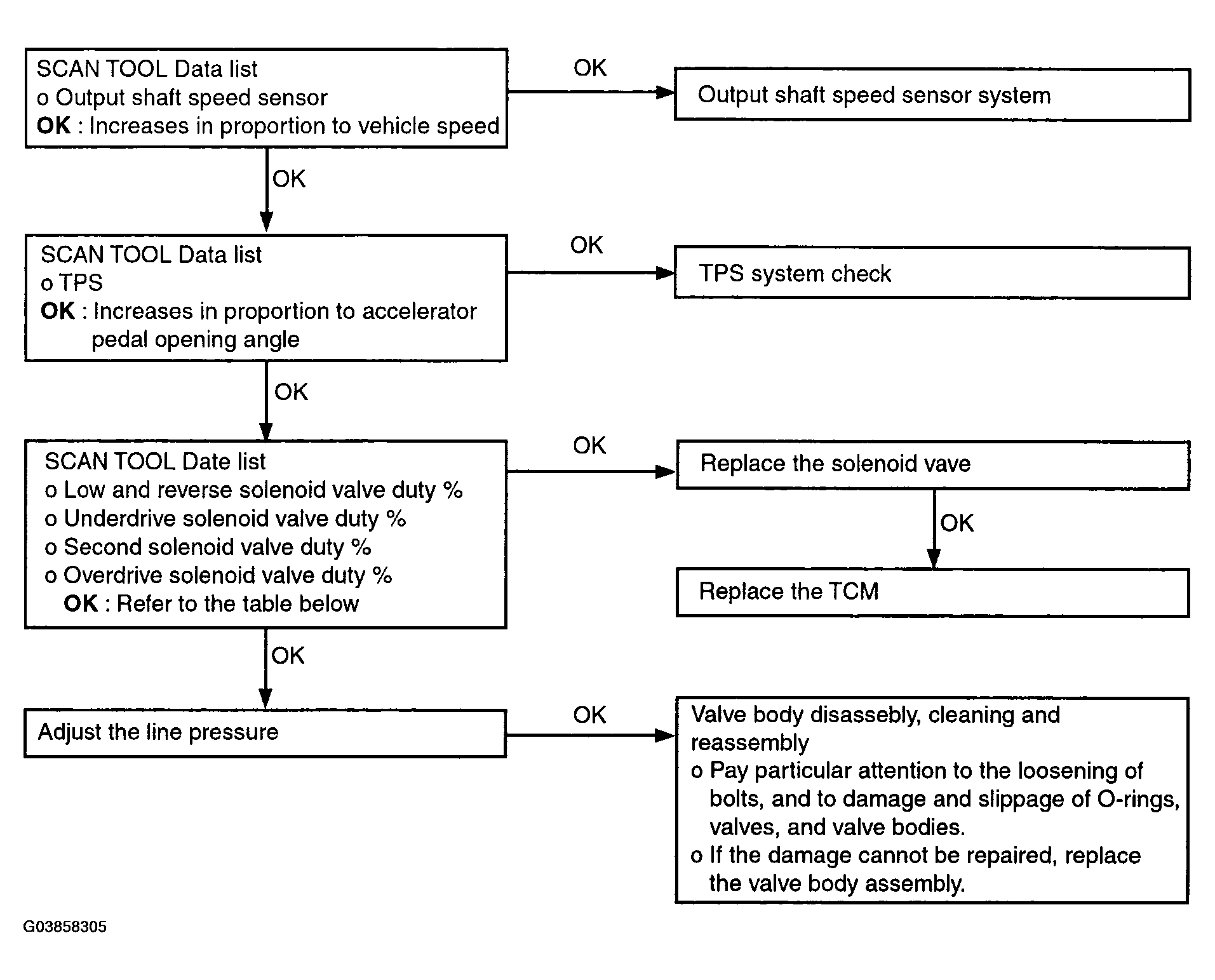

Fig 1: All Points (Displaced Shifting Points) - Troubleshooting Flow Chart

Courtesy of HYUNDAI MOTOR CO.
