Inspection Procedure 10

INSPECTION PROCEDURE 10 - TROUBLESHOOTING SYMPTOM

Shocks and running up	Probable cause
If shocks occur when driving due to upshifting or downshifting and the transaxle speed becomes higher than the engine speed, the cause is probably abnormal line pressure or a malfunction of a solenoid valve, oil pump, valve body, brake or clutch.	Abnormal line pressure Malfunction of each solenoid valve Malfunction of the oil pump Malfunction of the valve body Malfunction of brake or clutch

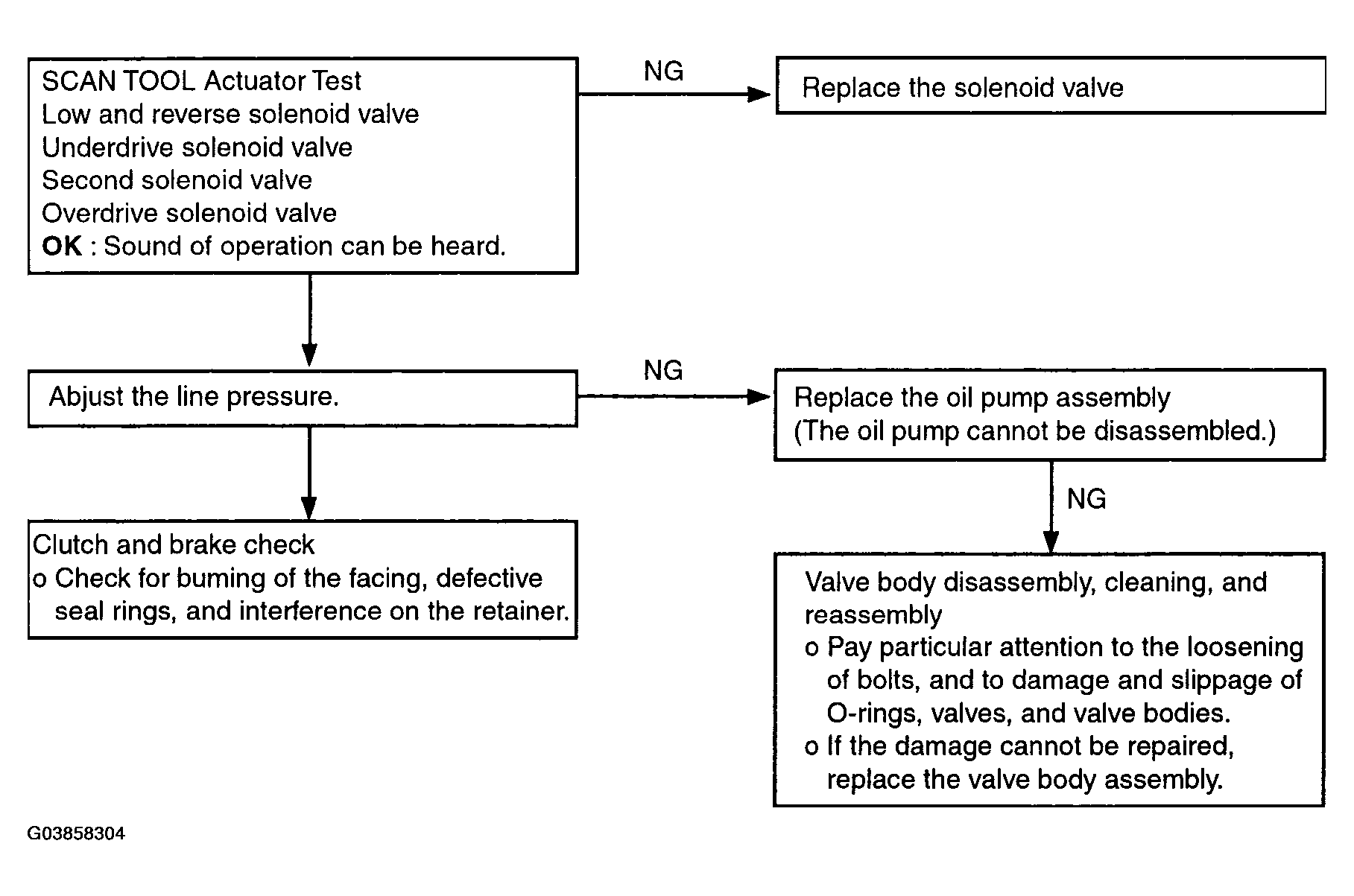

Fig 1: Shocks And Running Up - Troubleshooting Flow Chart

Courtesy of HYUNDAI MOTOR CO.
