Code No. P0703 Stop light switch system

CODE NO. P0703 STOP LIGHT SWITCH TROUBLESHOOTING SYMPTOM

Code No. P0703 Stop light switch system Probable cause
If the stop light switch is on for 5 minutes or more while driving, it is judged that there is a short circuit in the stop light switch and diagnostic trouble code P0703 is set.
  • Malfunction of the stop light switch
  • Malfunction of connector
  • Malfunction of the TCM

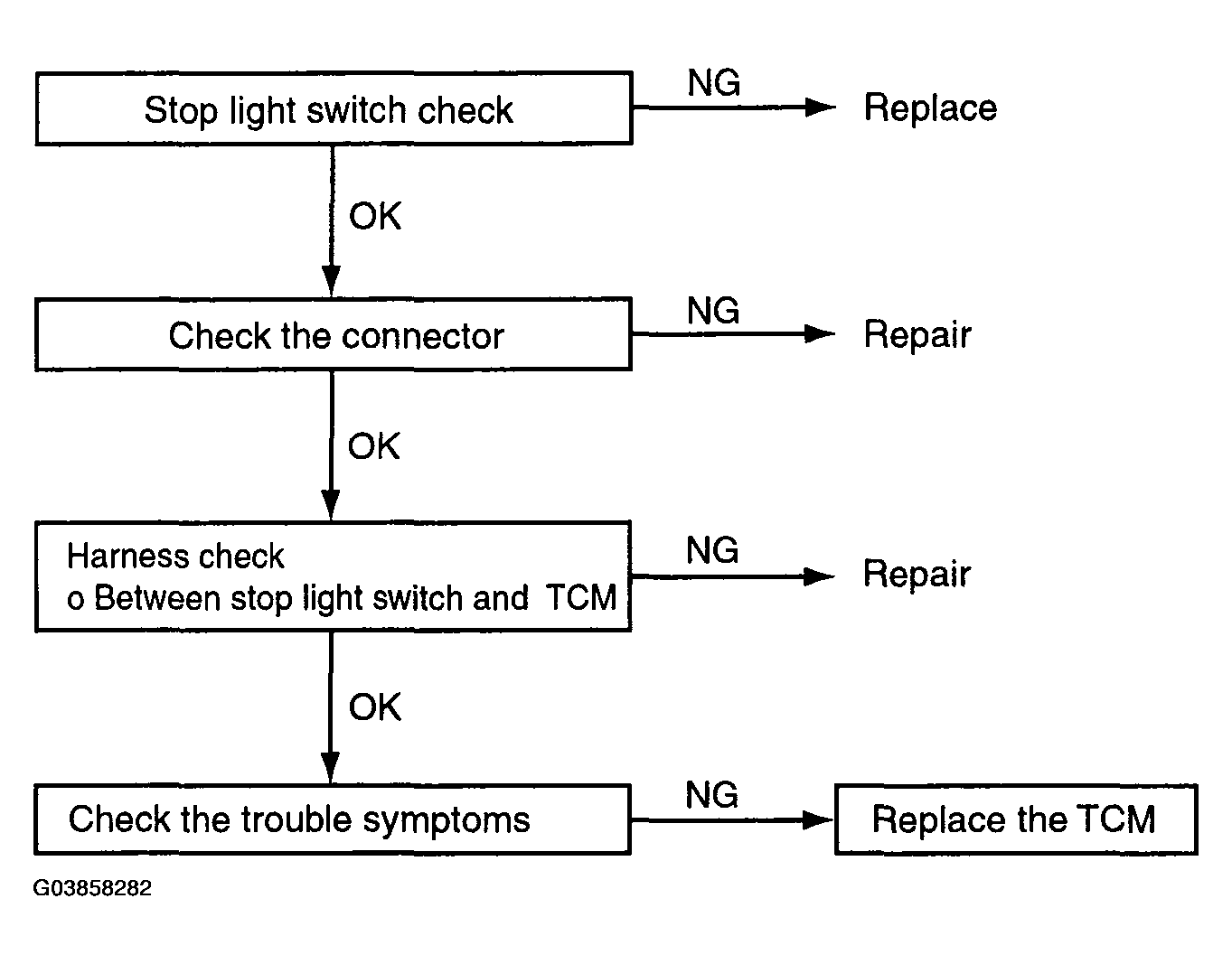

Fig 1: Code No. P0703 Stop Light Switch Troubleshooting Flow Chart
G03858282Courtesy of HYUNDAI MOTOR CO.
