(F4A42 Model)

Remove the battery terminal and battery.
Remove the drain plug and drain the automatic transaxle fluid

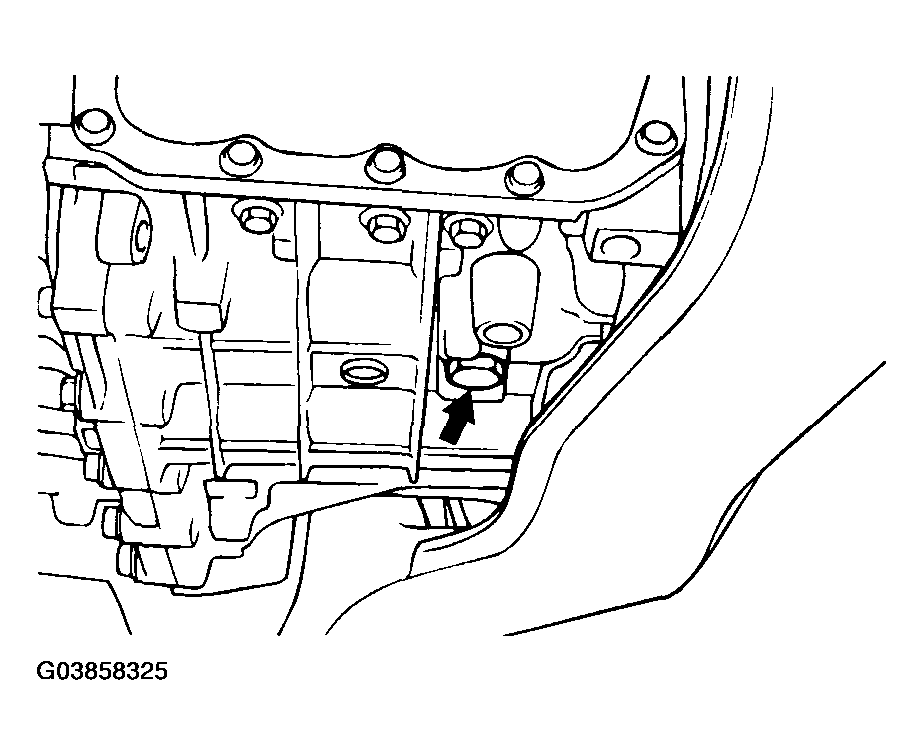

Fig 1: Identifying Drain Plug
Courtesy of HYUNDAI MOTOR CO.
Remove the air cleaner assembly.
Disconnect the speedometer sensor connector.
Disconnect the transaxle range switch connector, solenoid connector, and oil temperature sensor connector.

Fig 2: Identifying Transaxle Range Switch Connector
Courtesy of HYUNDAI MOTOR CO.

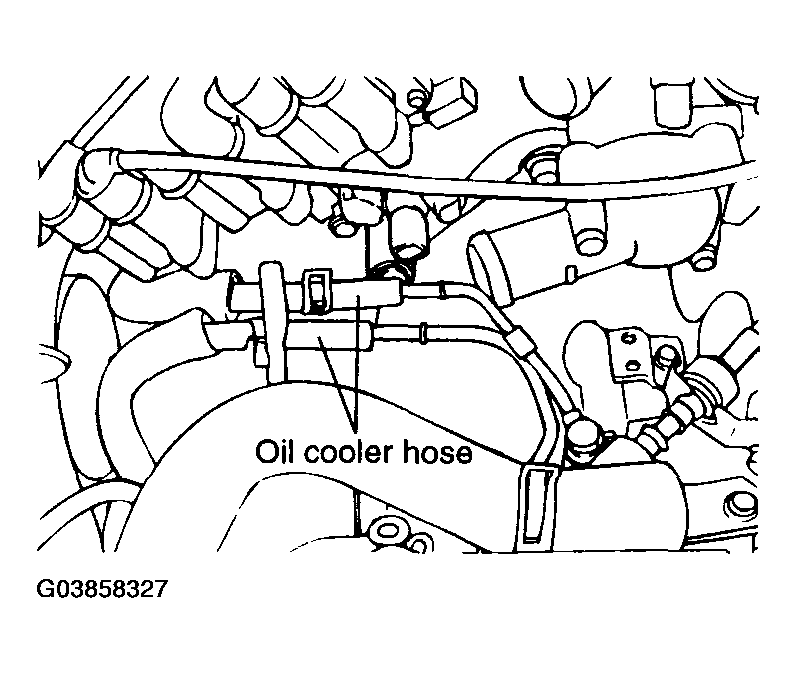

Remove the oil cooler hose.

Fig 3: Identifying Oil Cooler Hose
Courtesy of HYUNDAI MOTOR CO.

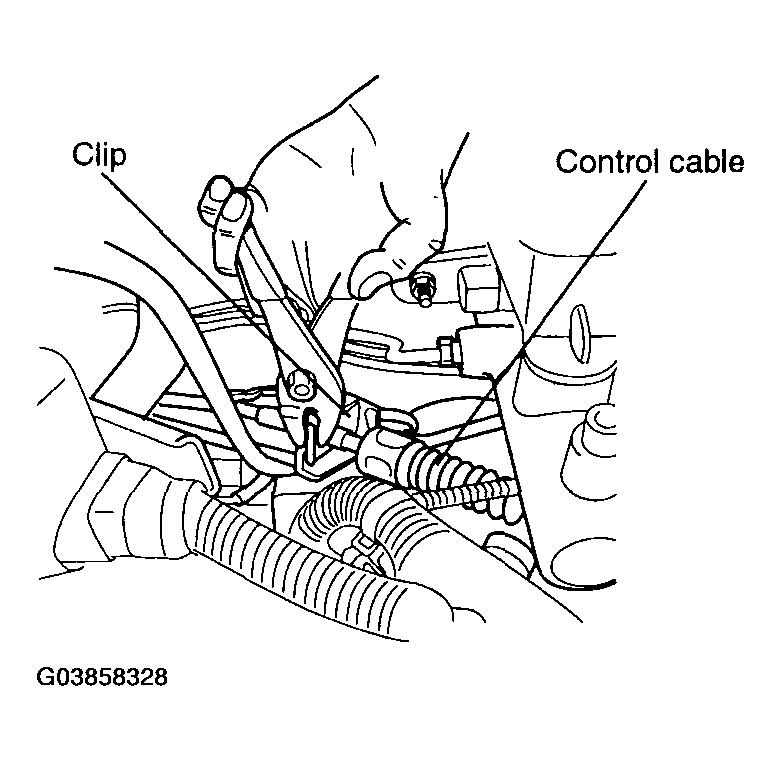

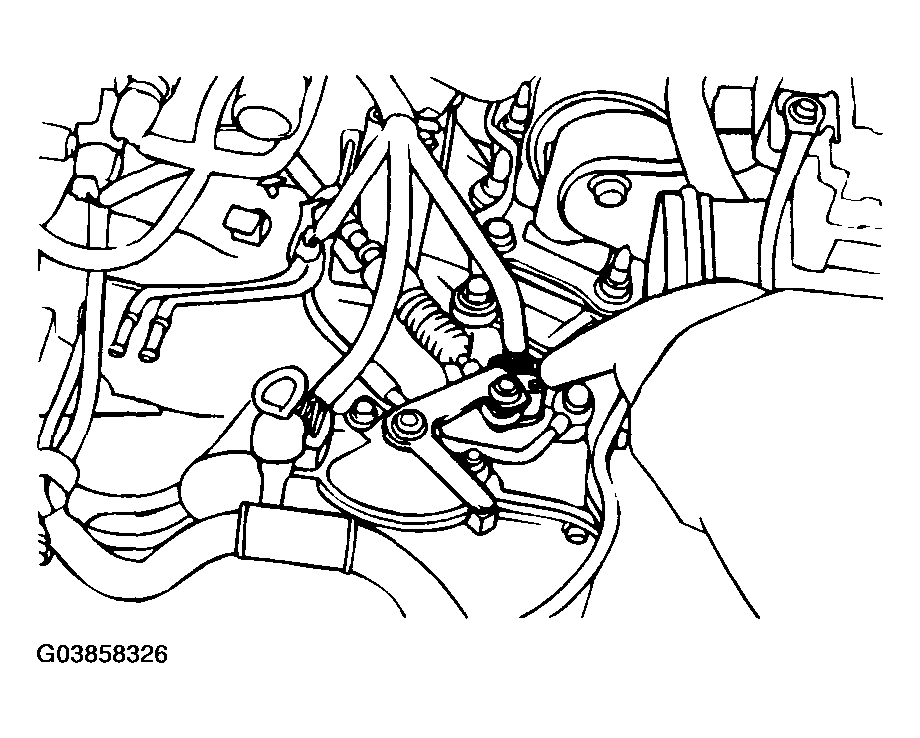

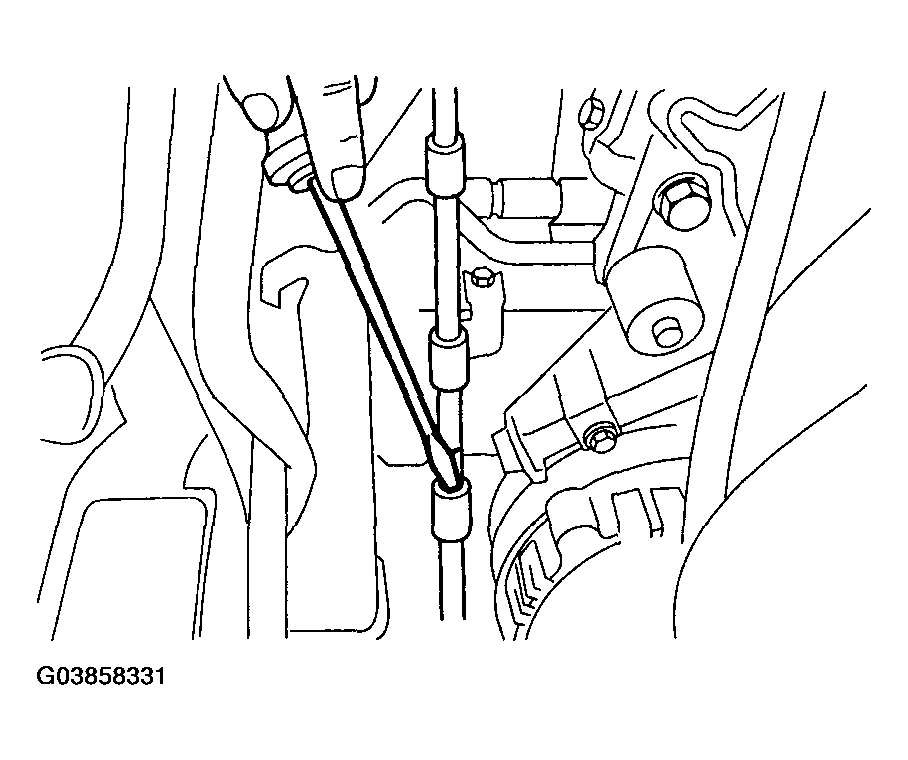

Remove the control cable.

Fig 4: Removing Control Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the steering u-joint bolt and return tube mounting bolts.
NOTE: Mark a mating line on the steering column universal joint and the gear box before disassembling to make the installation easier.

Fig 5: Identifying Steering U-Joint Bolt
Courtesy of HYUNDAI MOTOR CO.

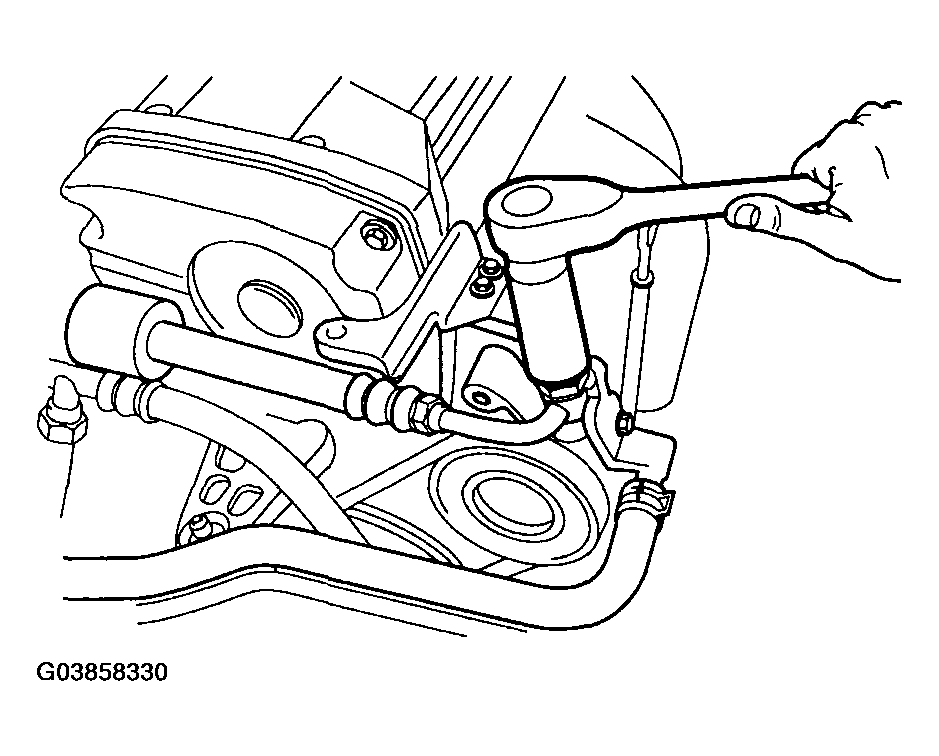

Separate the power steering oil pump hose.

Fig 6: Disconnecting Power Steering Oil Pump Hose
Courtesy of HYUNDAI MOTOR CO.
Separate the power steering return hose.

Fig 7: Identifying Power Steering Return Hose
Courtesy of HYUNDAI MOTOR CO.
Remove the upper connecting transaxle bolt.
Attach the special tools, engine support fixture, (J28467-B, J28467-125) to the engine hooks.

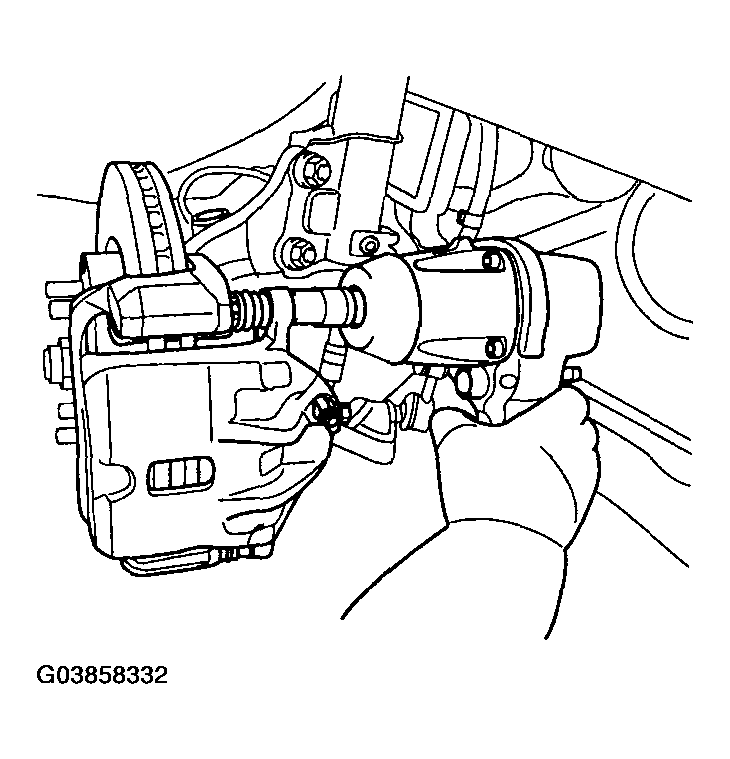

Remove the tire and caliper

Fig 8: Connecting Transaxle Bolt
Courtesy of HYUNDAI MOTOR CO.

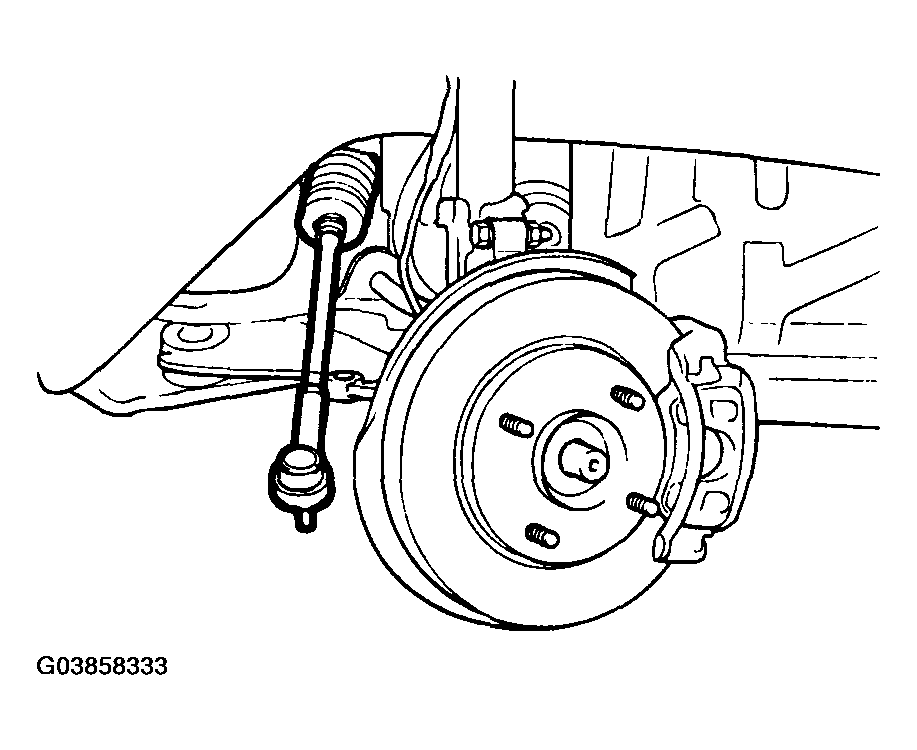

Separate the tie rod end.

Fig 9: Identifying Tie Rod
Courtesy of HYUNDAI MOTOR CO.

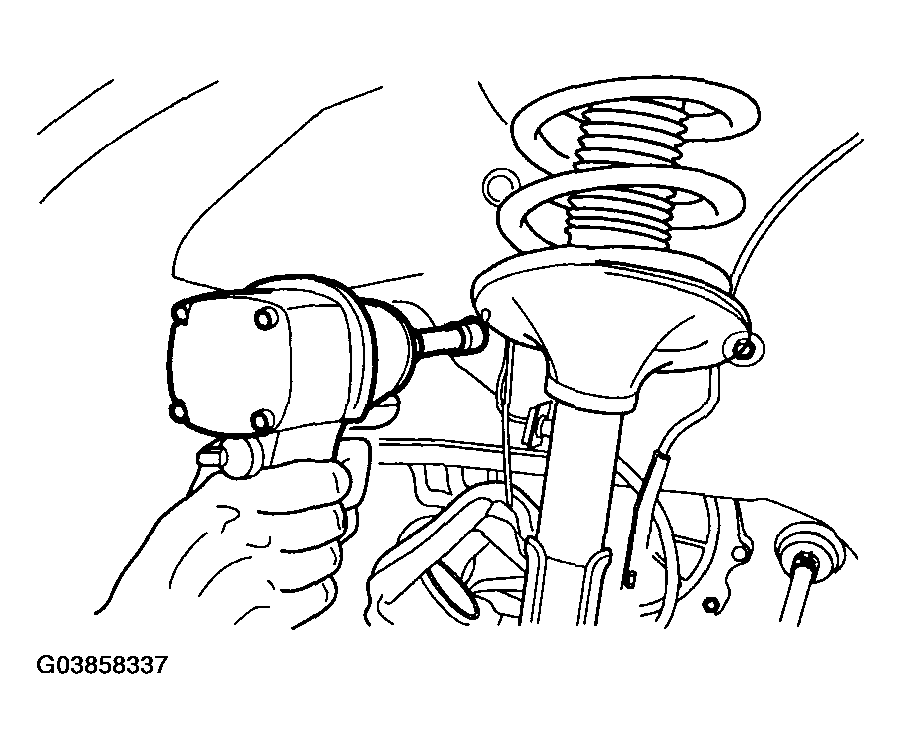

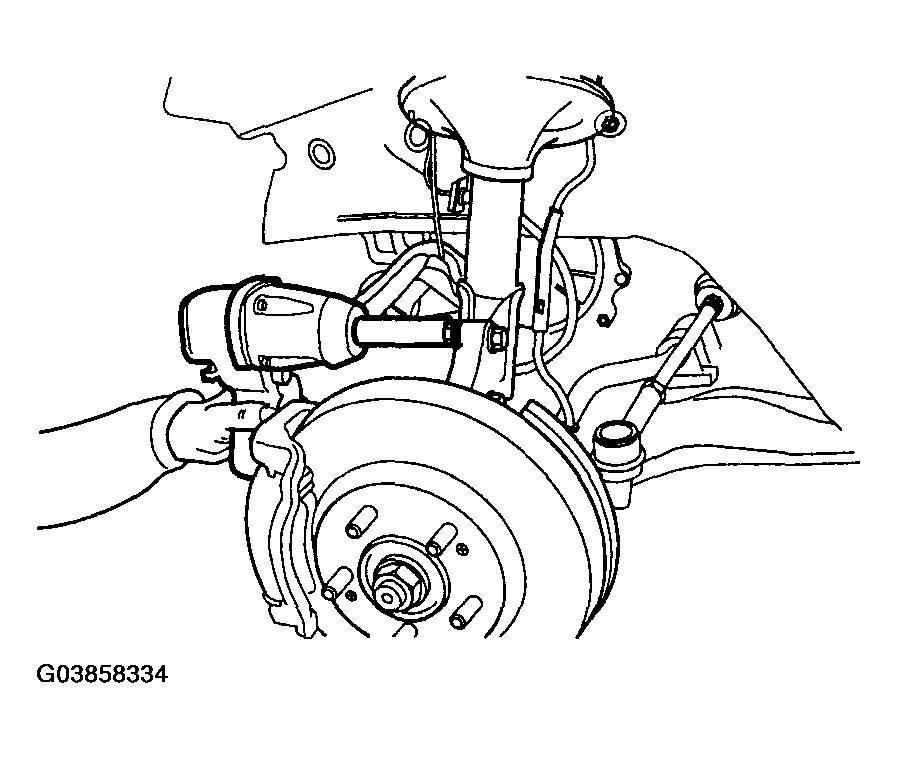

Remove the wheel speed sensor and the knuckle mounting bolt.

Fig 10: Removing Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.

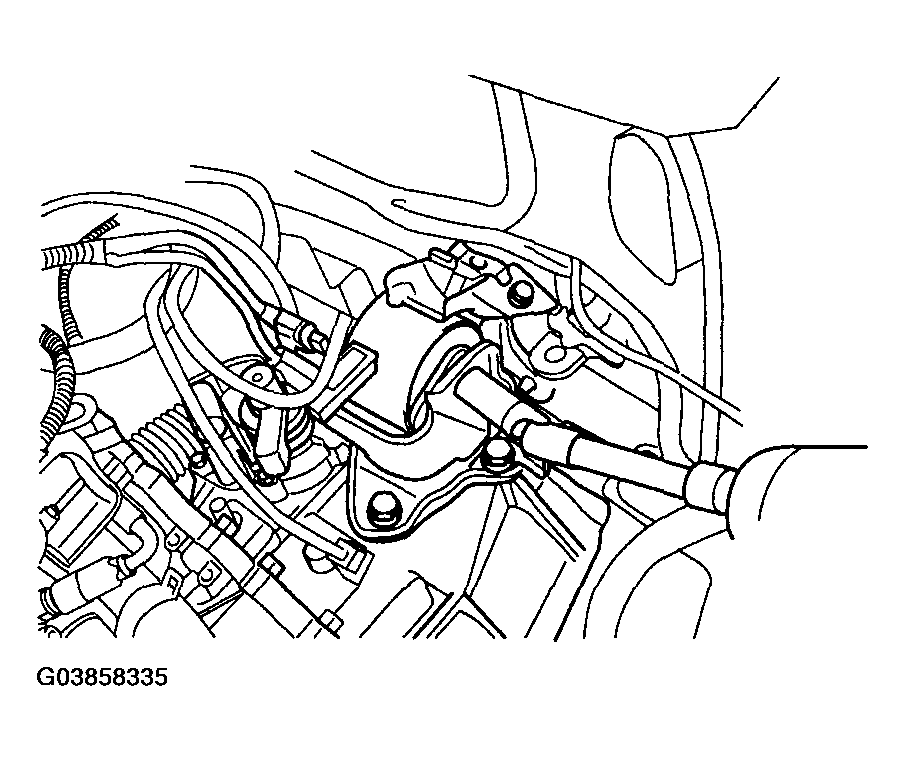

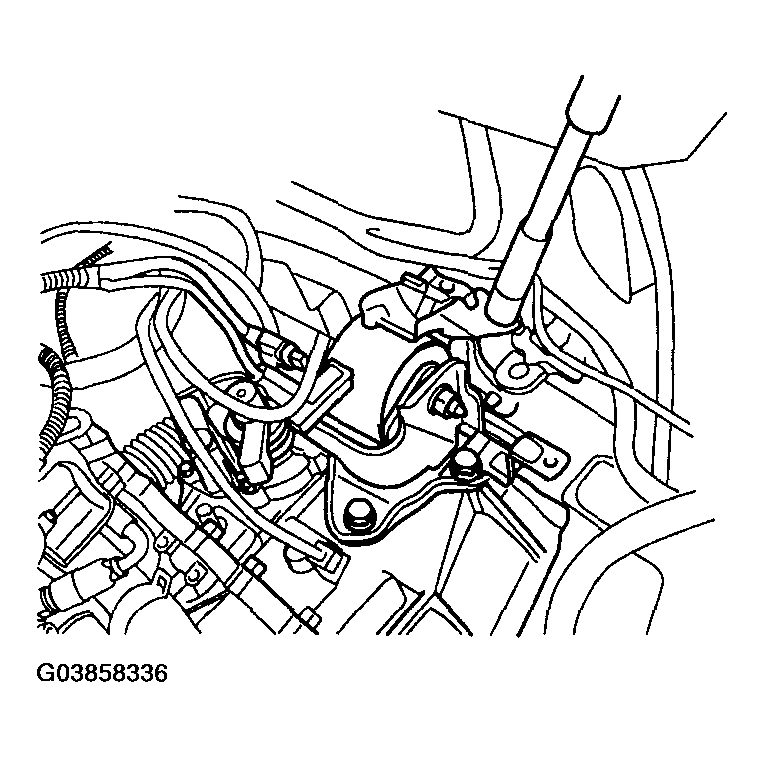

Remove the transaxle mounting bracket.
1. Insulator bolt

  Fig 11: Removing Transaxle Mounting Bracket
  Courtesy of HYUNDAI MOTOR CO.
2. Body mounting bolt (Upper)

  Fig 12: Identifying Body Mounting Bolt (Upper)
  Courtesy of HYUNDAI MOTOR CO.
3. Body mounting bolt (Side)

  Fig 13: Identifying Body Mounting Bolt (Side)
  Courtesy of HYUNDAI MOTOR CO.
4. Transaxle side mounting bolt.

  Fig 14: Identifying Transaxle Side Mounting Bolt
  Courtesy of HYUNDAI MOTOR CO.

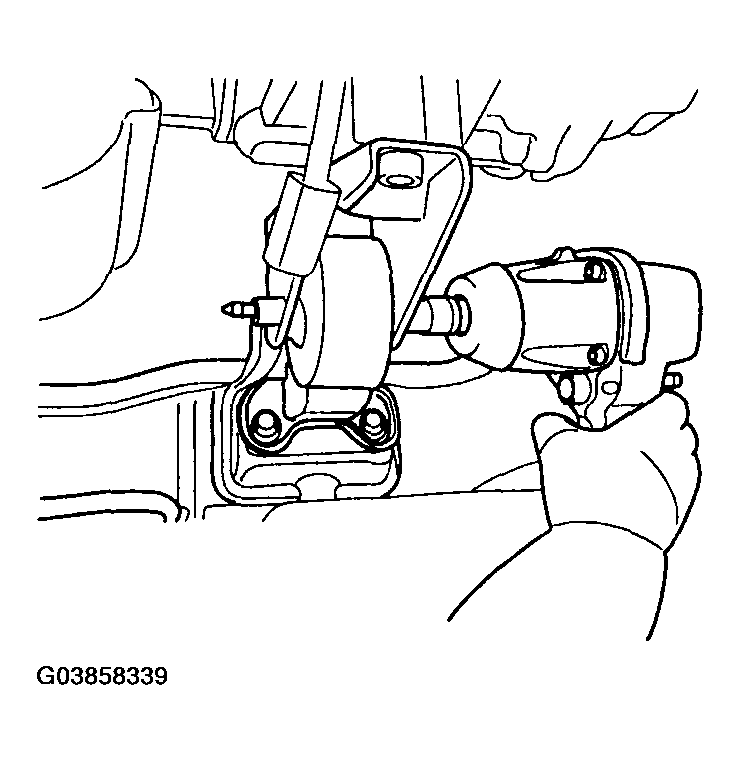

Remove the front roll stopper.

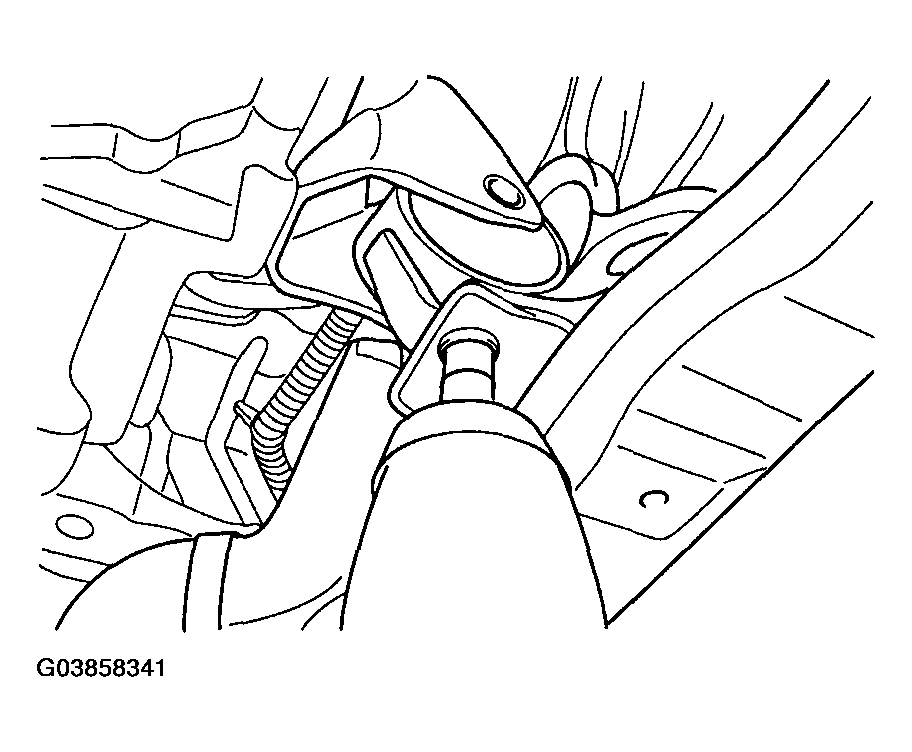

1. Insulator bolt

  Fig 15: Removing Front Roll Stopper
  Courtesy of HYUNDAI MOTOR CO.
2. Stopper bolt (Upper)

  Fig 16: Identifying Stopper Bolt (Upper)
  Courtesy of HYUNDAI MOTOR CO.

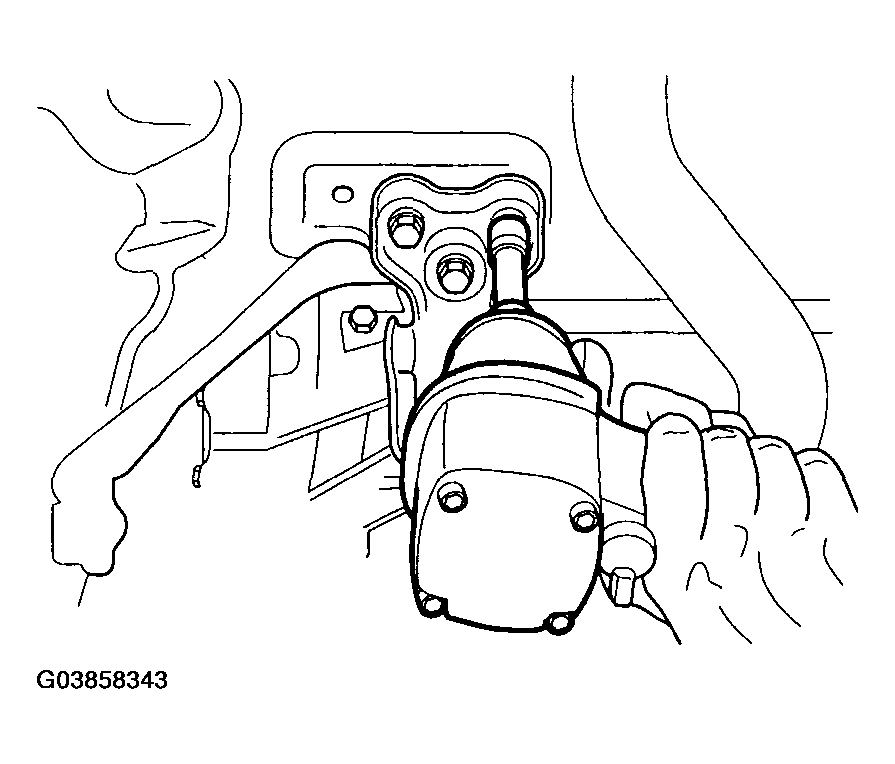

3. Stopper bolt (Lower)

  Fig 17: Identifying Stopper Bolt (Lower)
  Courtesy of HYUNDAI MOTOR CO.

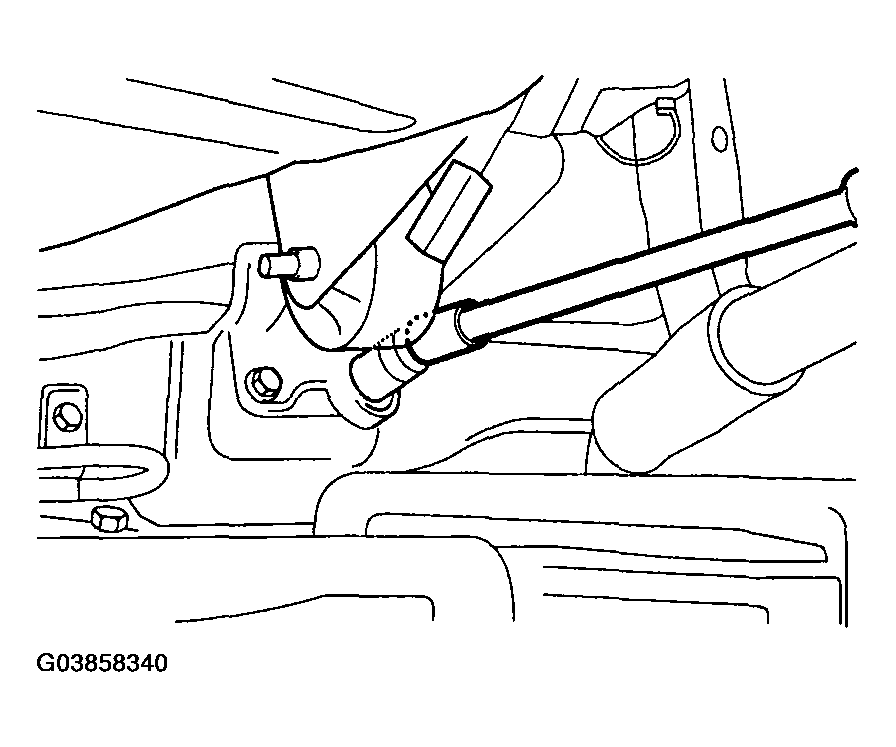

Remove the rear roll stopper.

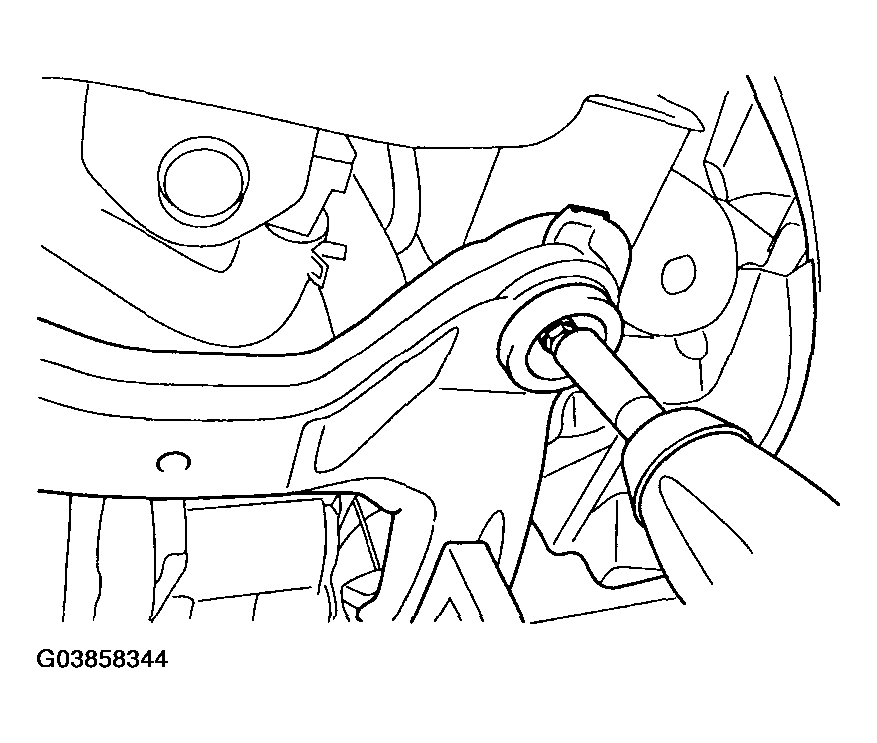

1. Insulator bolt

  Fig 18: Removing Rear Roll Stopper
  Courtesy of HYUNDAI MOTOR CO.
2. Stopper bolt

  Fig 19: Identifying Stopper Bolt
  Courtesy of HYUNDAI MOTOR CO.
Remove the drive shaft.
Remove the subframe mounting bolts and the subframe.

Fig 20: Removing Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

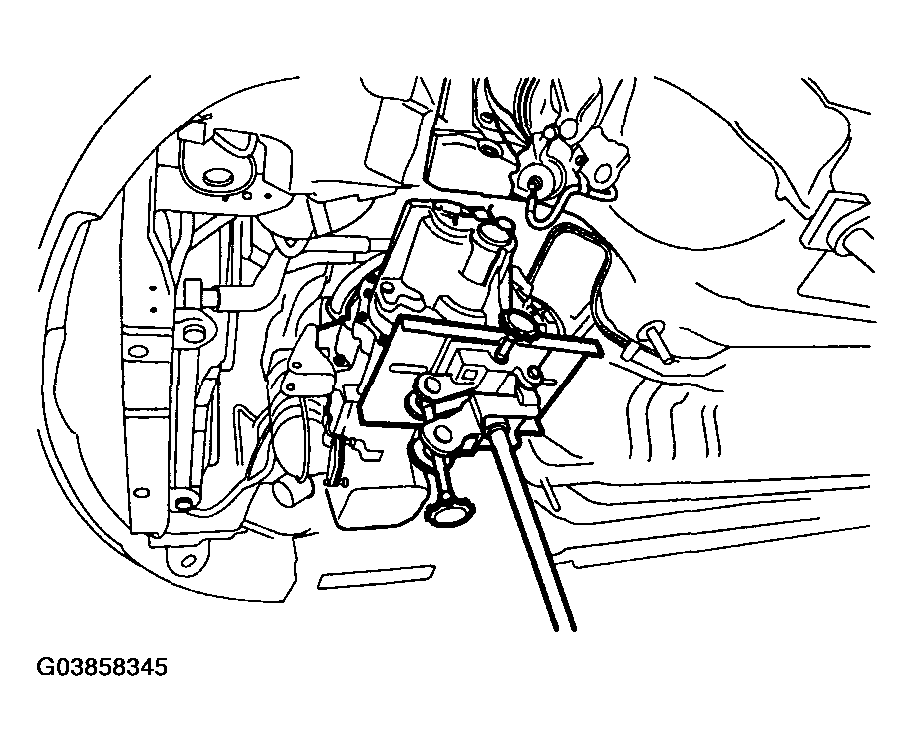

Install the jack under the transaxle assembly.

Fig 21: Installing Jack Under The Transaxle Assembly
Courtesy of HYUNDAI MOTOR CO.

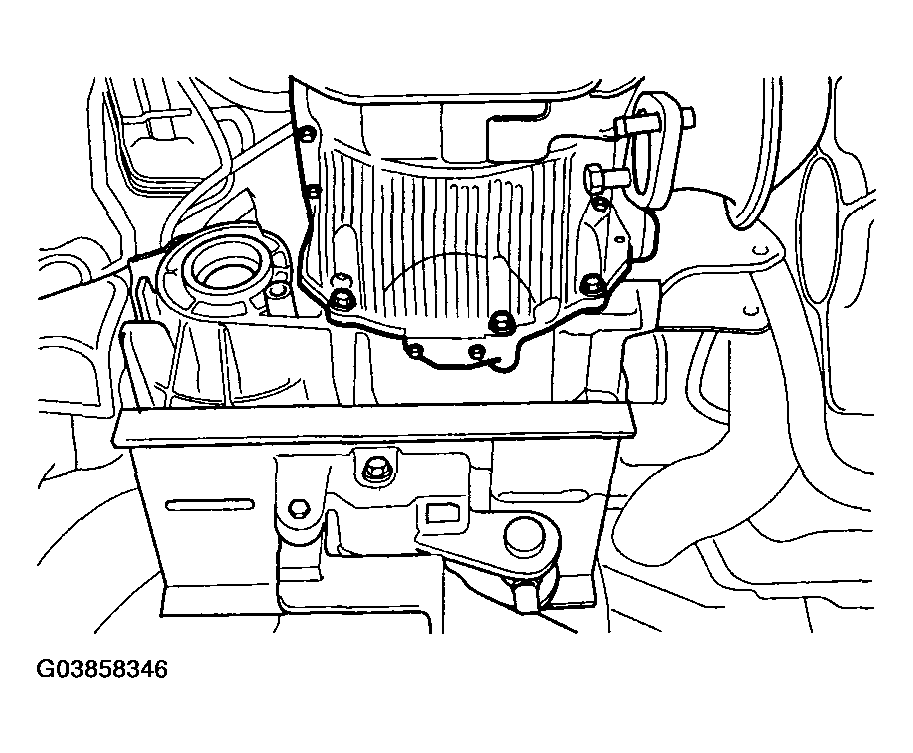

Remove the automatic transaxle mounting lower bolts.

Fig 22: Removing Automatic Transaxle Mounting Lower Bolts
Courtesy of HYUNDAI MOTOR CO.

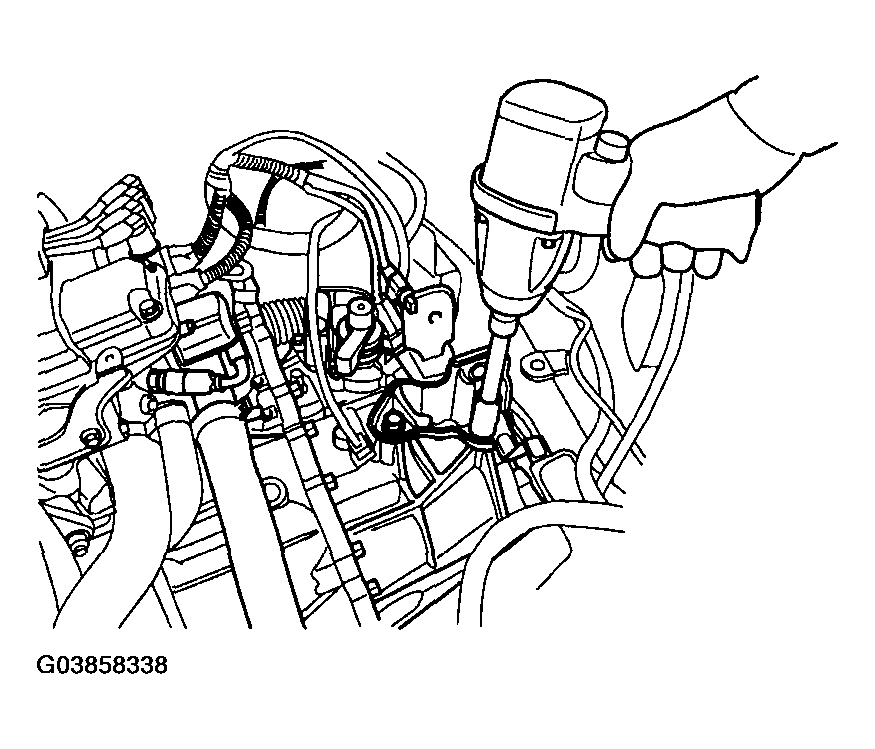

Remove the engine to automatic transaxle bolts.
Remove the automatic transaxle assembly by jack.

CAUTION:

Engine and transmission mounting insulators should be installed as specified orders.
Mounting bracket installation procedures.
1. Engine mounting bracket.
2. T/M mounting bracket.
3. Rear roll stopper mounting bracket.
4. Front roll stopper mounting bracket.
When installing the front roll stopper mounting bracket, be especially careful not to crush the insulator. If crushed, idle vibration may occur.
