Starting System: Starter: Disassembly

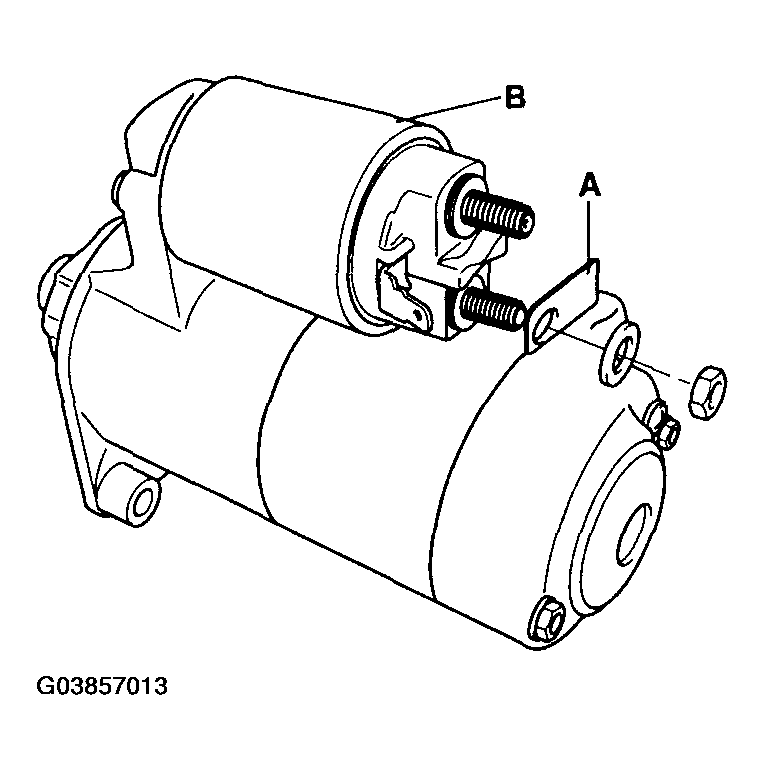

Disconnect the M-terminal(A) on he magnet switch assembly(B).

Fig 1: Disconnecting M-Terminal On Magnet Switch Assembly
Courtesy of HYUNDAI MOTOR CO.

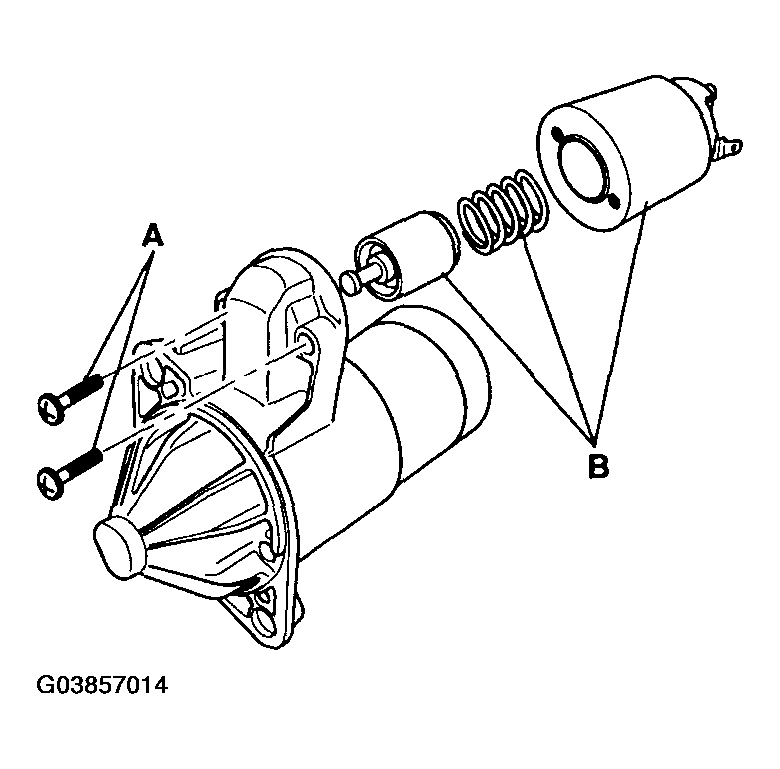

After loosening the 2 screws(A), detach the magnet switch assembly(B).

Fig 2: Detaching Magnet Switch Assembly
Courtesy of HYUNDAI MOTOR CO.
Loosen the brush holder mounting screws(A) and through bolts(B).

Fig 3: Loosening Brush Holder Mounting Screws And Through Bolts
Courtesy of HYUNDAI MOTOR CO.

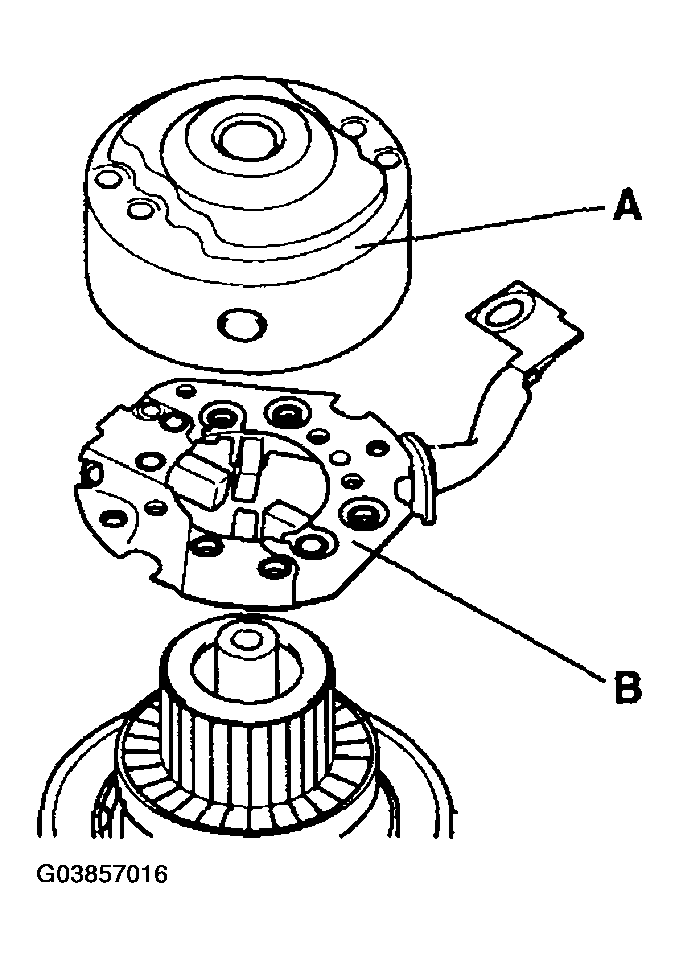

Remove the rear bracket(A) and brush holder assembly(B).

Fig 4: Removing Rear Bracket And Brush Holder Assembly
Courtesy of HYUNDAI MOTOR CO.

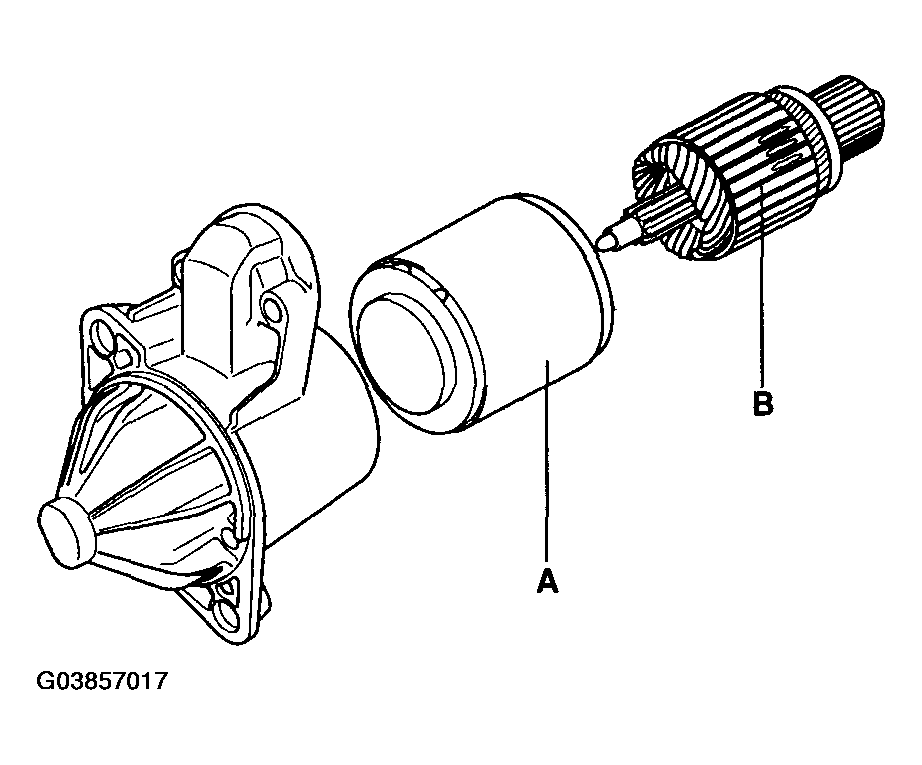

Remove the yoke(A) and armature(B).

Fig 5: Removing Yoke And Armature
Courtesy of HYUNDAI MOTOR CO.

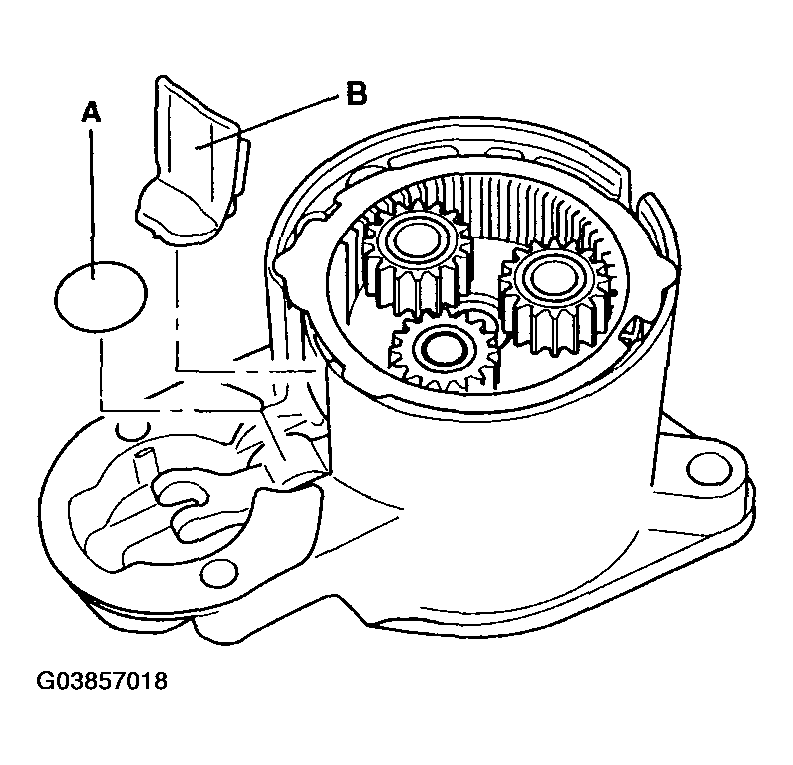

Remove the, lever plate(A) and planet shaft packing(B).

Fig 6: Removing, Lever Plate(A) And Planet Shaft Packing
Courtesy of HYUNDAI MOTOR CO.

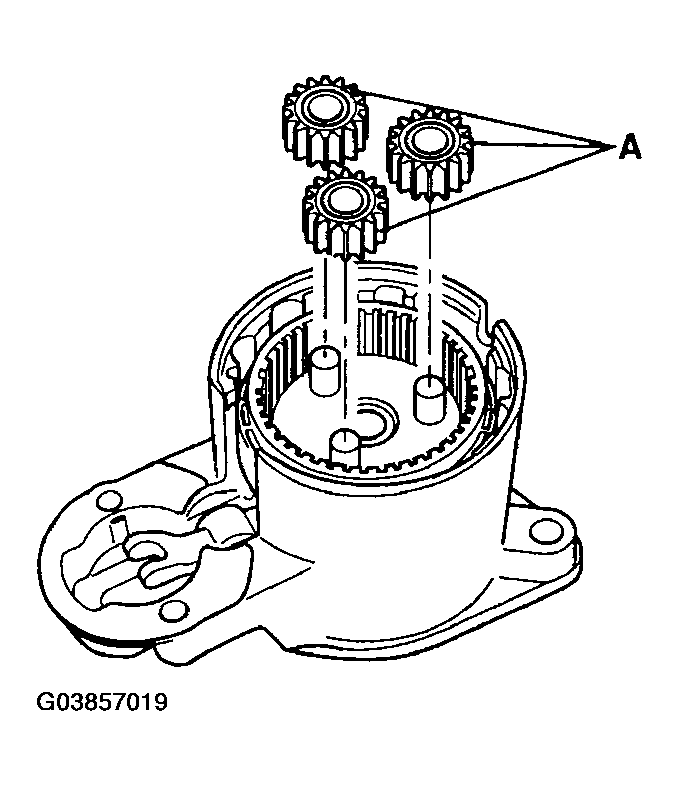

Disconnect the planet gear(A).

Fig 7: Disconnecting Planet Gear
Courtesy of HYUNDAI MOTOR CO.

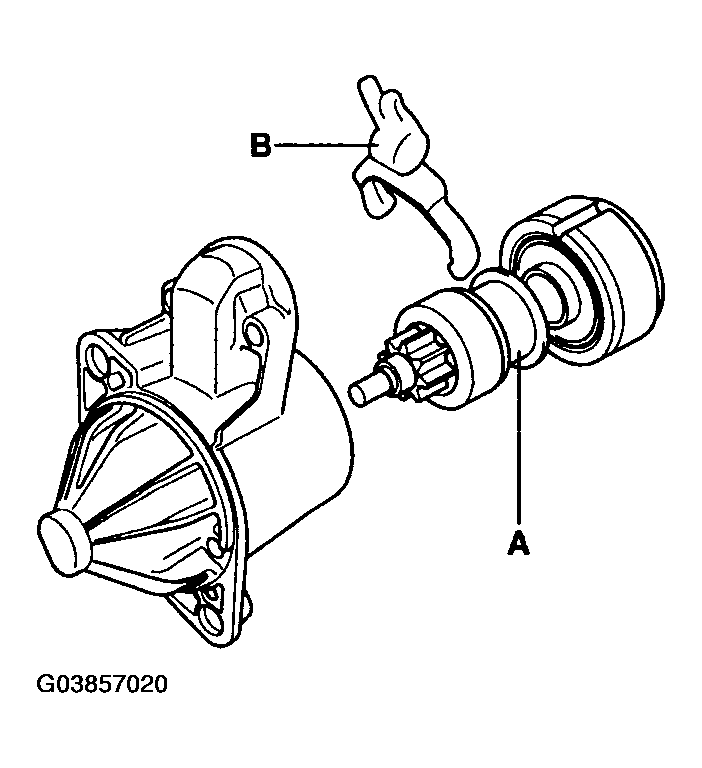

Disconnect the planet shaft assembly(A) and lever(B).

Fig 8: Disconnecting Planet Shaft Assembly And Lever
Courtesy of HYUNDAI MOTOR CO.

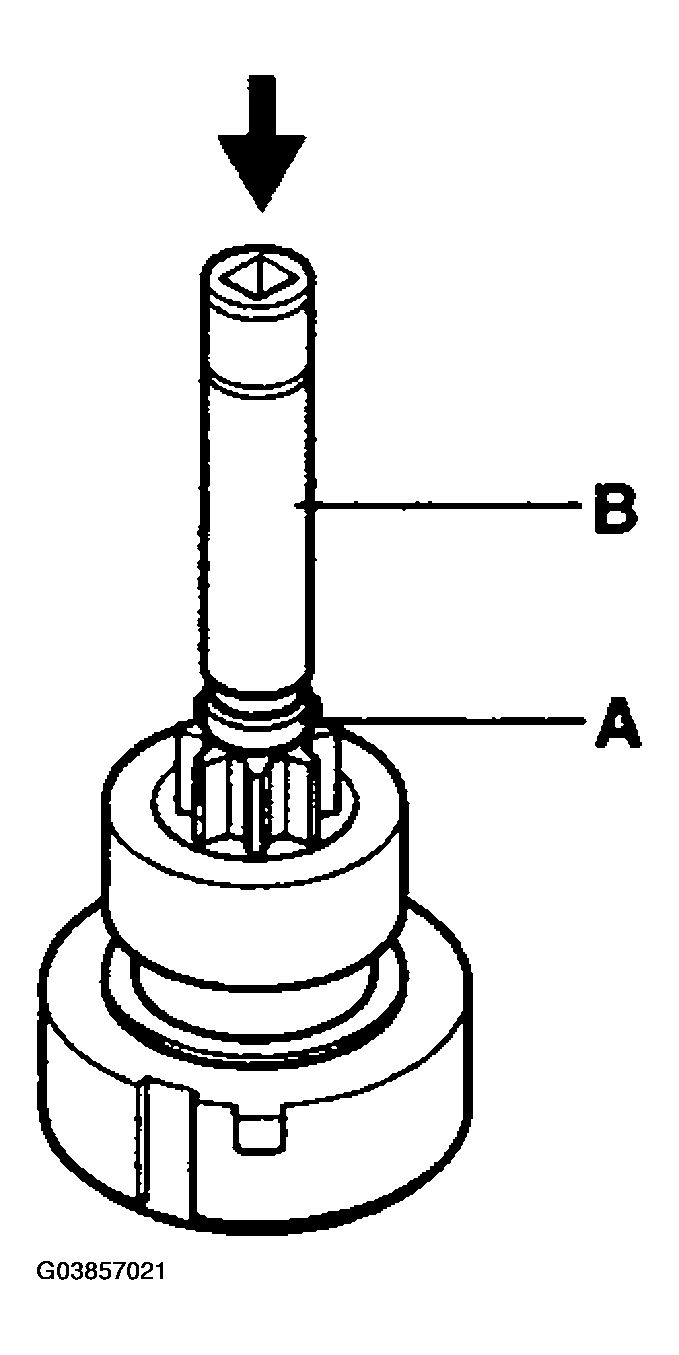

Press the stop ring(A) using s socket(B).

Fig 9: Pressing Stop Ring
Courtesy of HYUNDAI MOTOR CO.

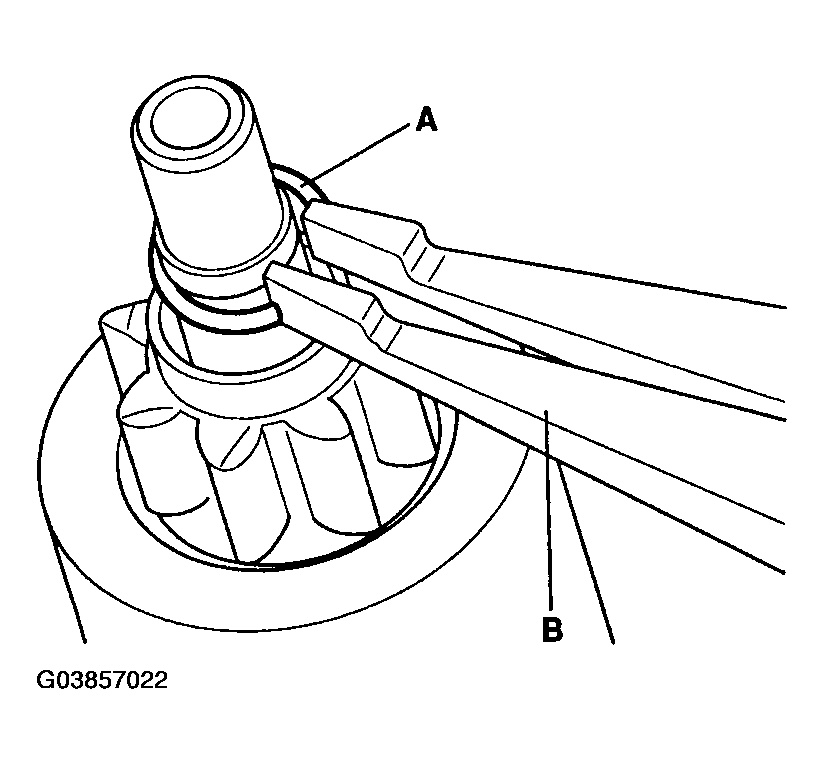

After removing the stopper(A) using stopper pliers(B).

Fig 10: Removing Stopper
Courtesy of HYUNDAI MOTOR CO.

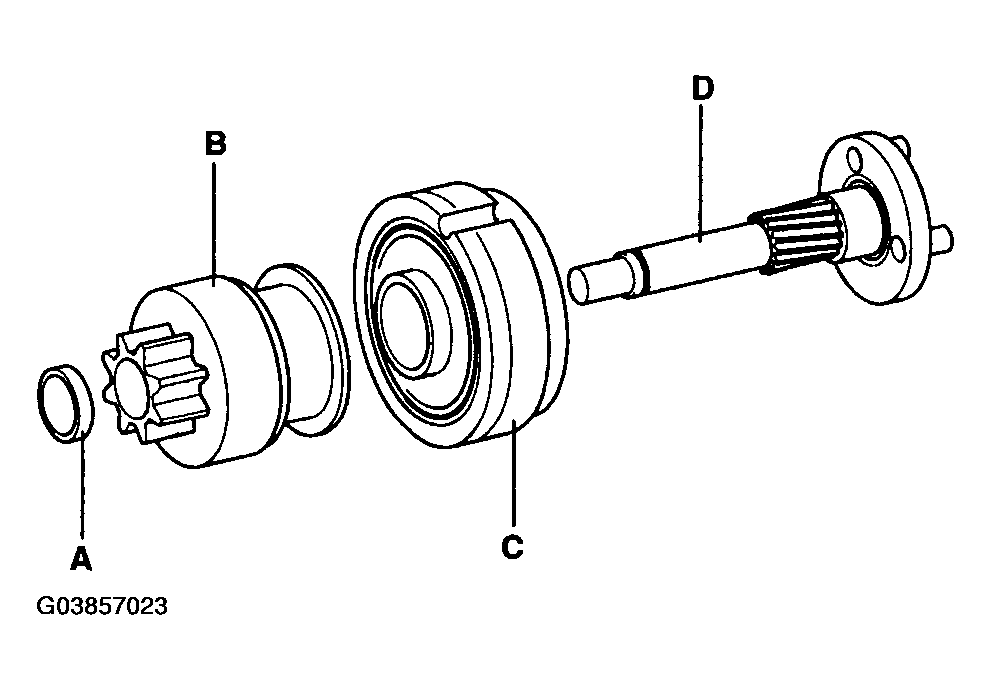

Disconnect the stop ring(A), overrunning clutch(B), internal gear(C) and planet shaft(D).

Fig 11: Disconnecting Stop Ring, Overrunning Clutch, Internal Gear And Planet Shaft
Courtesy of HYUNDAI MOTOR CO.
Reassembly is the reverse of disassembly.
NOTE: Using a suitable pulling tool(A), pull the overrunning clutch stopring(B) over the stopper(C).

Fig 12: Pulling Overrunning Clutch Stopring Over Stopper
Courtesy of HYUNDAI MOTOR CO.
