2.4 DOHC Engine: Stator

  1. Make a continuity check on the stator coil. Check that there is continuity between the coil leads. If there is no continuity, replace the stator assembly.

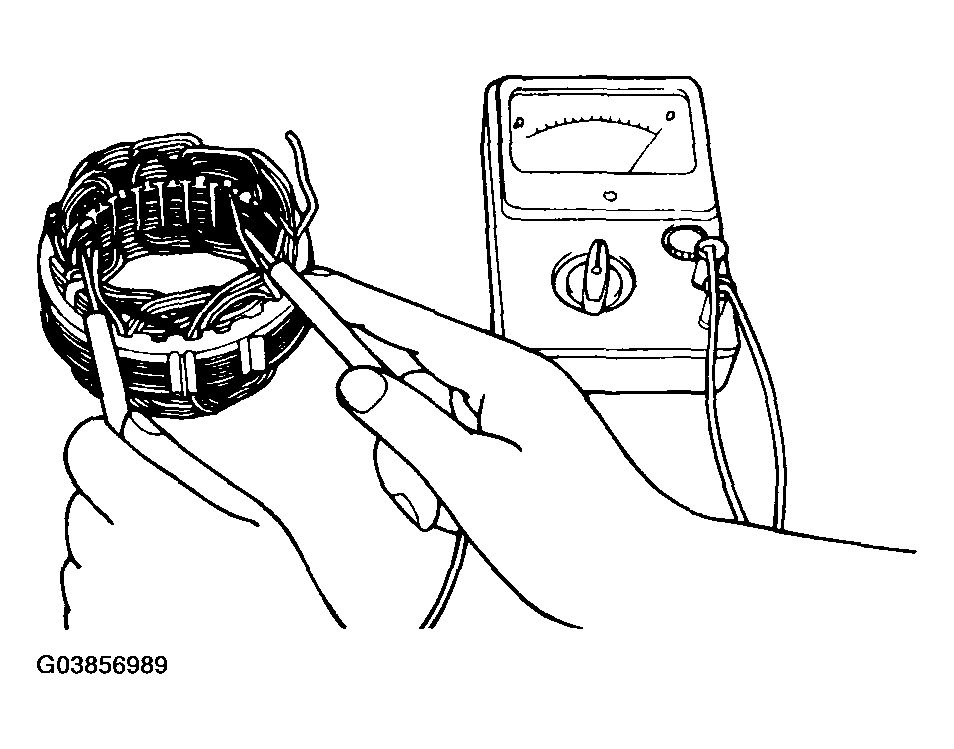

    Fig 1: Inspecting Stator Continuity (1 Of 2)
    G03856989Courtesy of HYUNDAI MOTOR CO.
  2. Check the coil for grounding. Check that there is no continuity between the coil and the core. If there is continuity, replace the stator assembly.

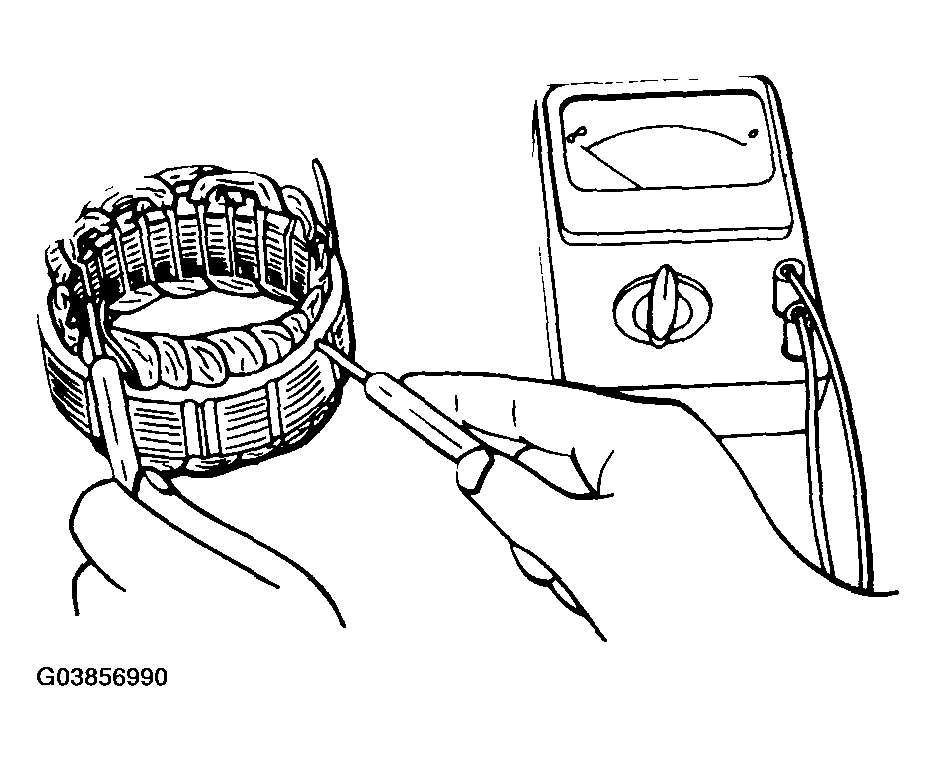

    Fig 2: Inspecting Stator Continuity (2 Of 2)
    G03856990Courtesy of HYUNDAI MOTOR CO.
