Hi-Scan (Pro) Check

  1. Turn the ignition "OFF".
  2. Connect the Hi-scan to the data link connector located underneath low crash pad panel.
  3. Turn the ignition "ON".
  4. Use the Hi-scan to check the self-diagnosis codes.
  5. After completion of the repair or correction of the problems, turn the ignition switch; then erase the stored faults codes using the clear key.
  6. Disconnect the Hi-scan.

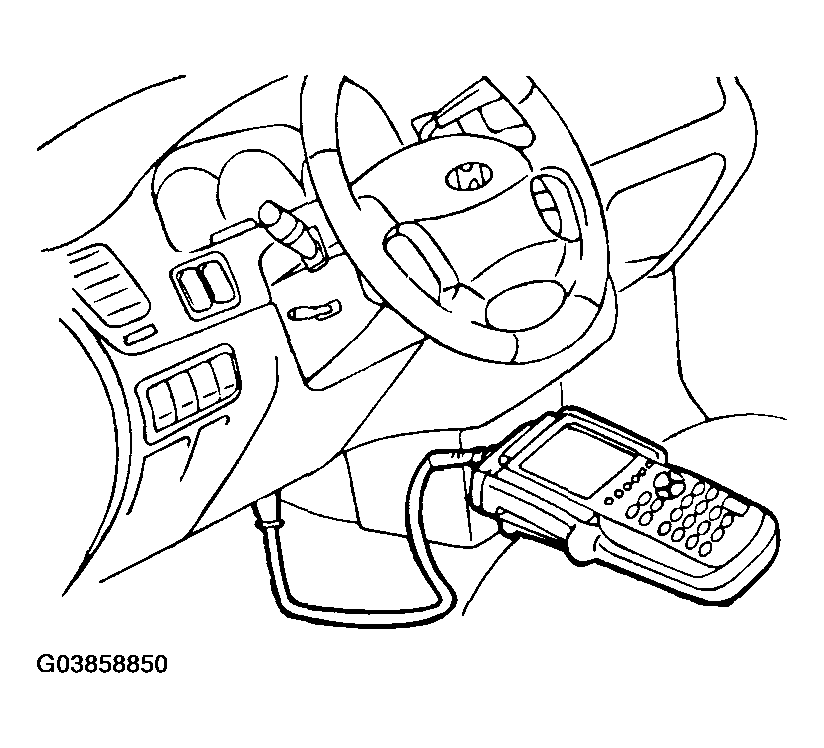

    Fig 1: Connecting Hi-Scan To Data Link Connector
    G03858850Courtesy of HYUNDAI MOTOR CO.

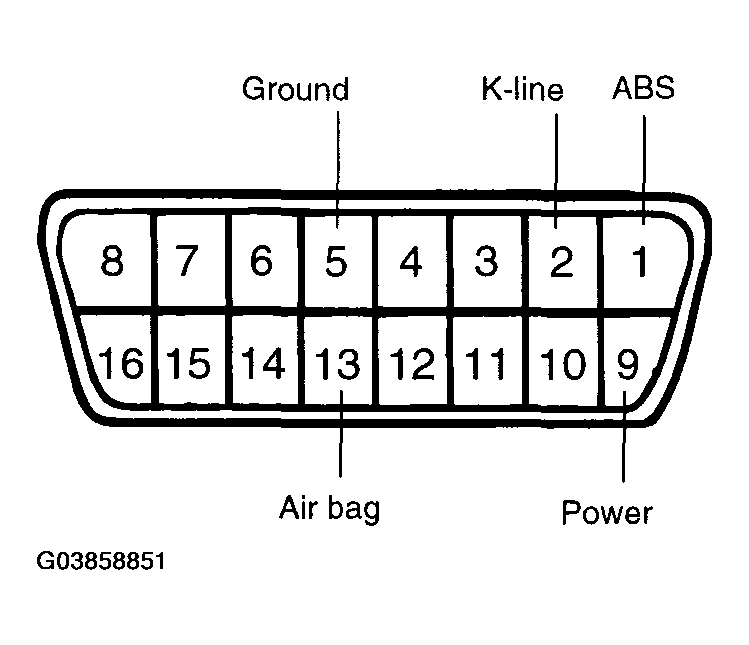

    Fig 2: Identifying Data Link Connector
    G03858851Courtesy of HYUNDAI MOTOR CO.
