Home >> Hyundai >> 2005 >> Sonata GLS >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs (Anti-Lock Brake System) >> Anti-Lock Braking System Wheel Speed Sensor >> Components

Anti-Lock Braking System Wheel Speed Sensor: Components

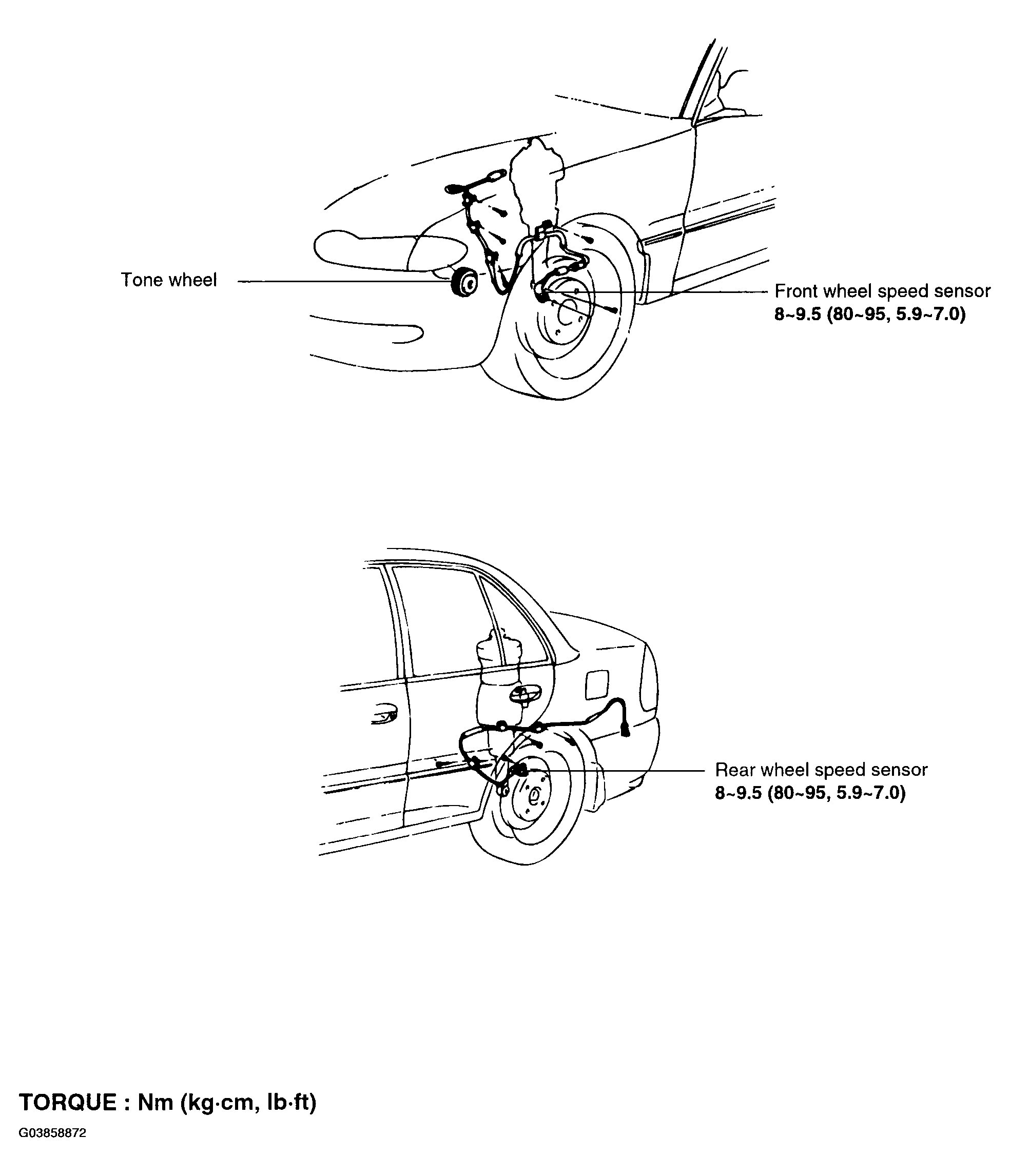

Fig 1: Front/Rear ABS Wheel Speed Sensor Torque Specifications

G03858872

Courtesy of HYUNDAI MOTOR CO.
