Sonata GLS
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows
>>
Power Window Switch
>>
Circuit Diagrams
Circuit Diagrams

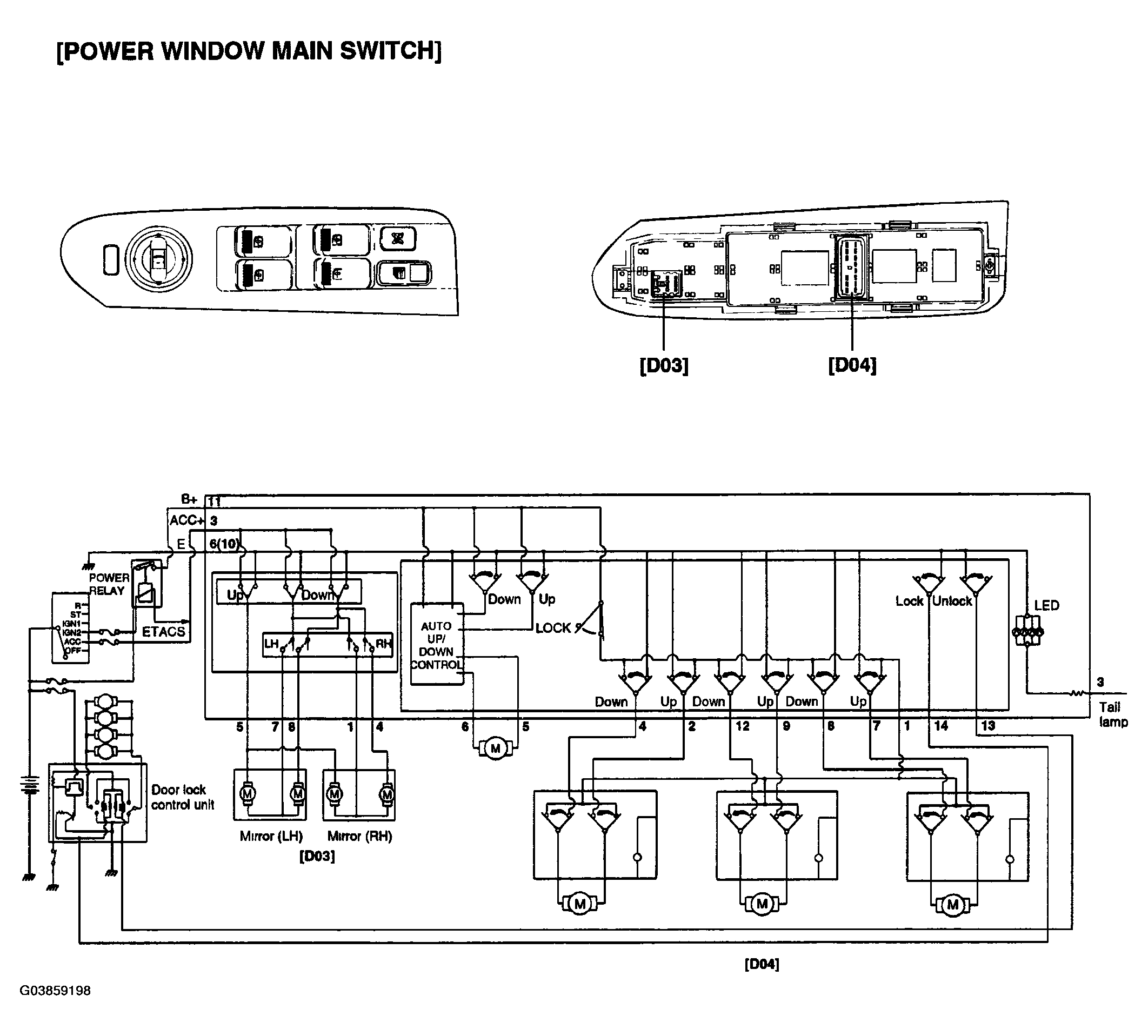

Fig 1: Power Window Main Switch - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.

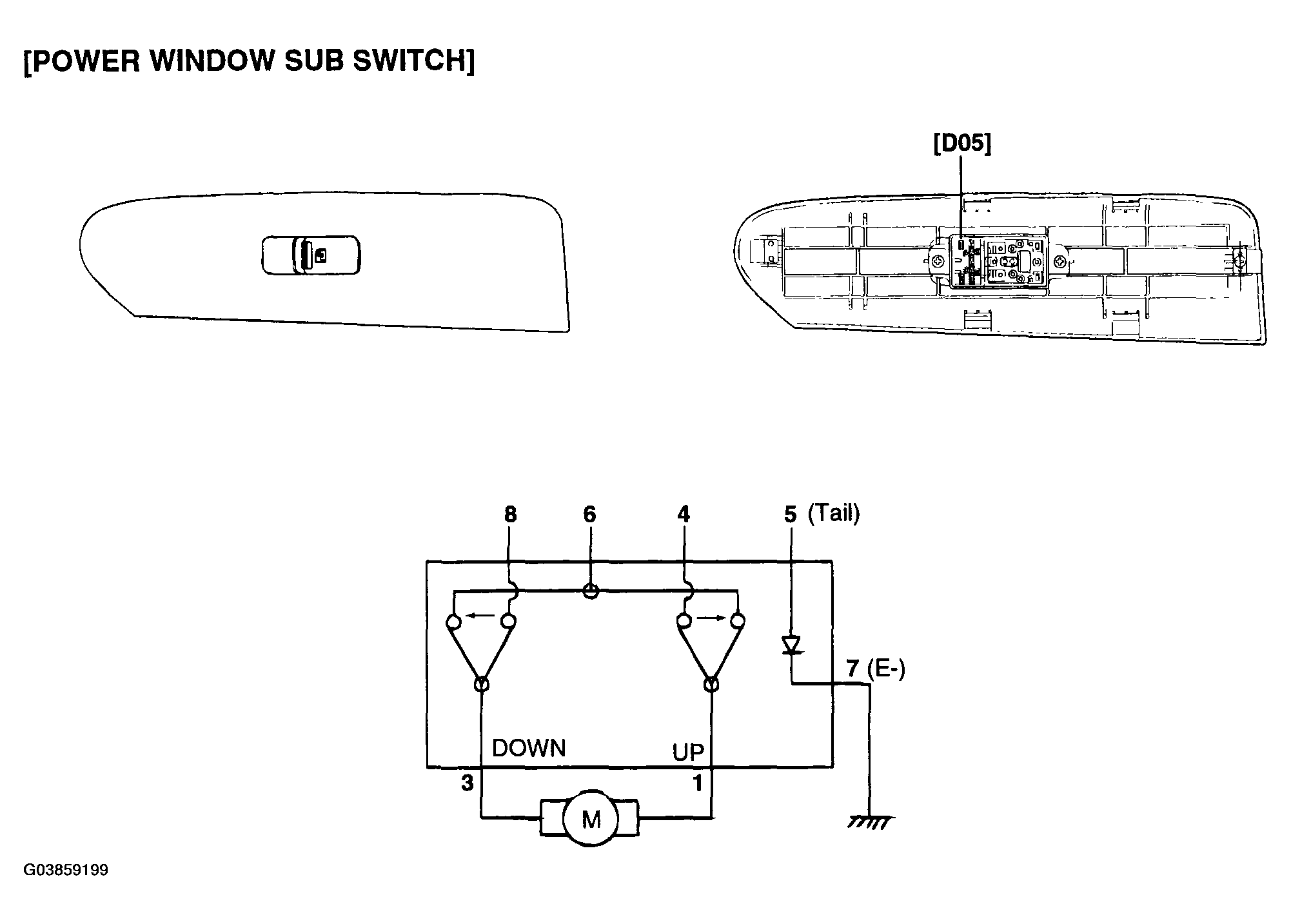

Fig 2: Power Window Sub-Switch - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
