LEMON Manuals
: Even more car manuals for everyone
Home
>>
Hyundai
>>
2005
>>
Sonata GLS
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Immobilizer Control System
>>
Description
>>
System Components
System Components

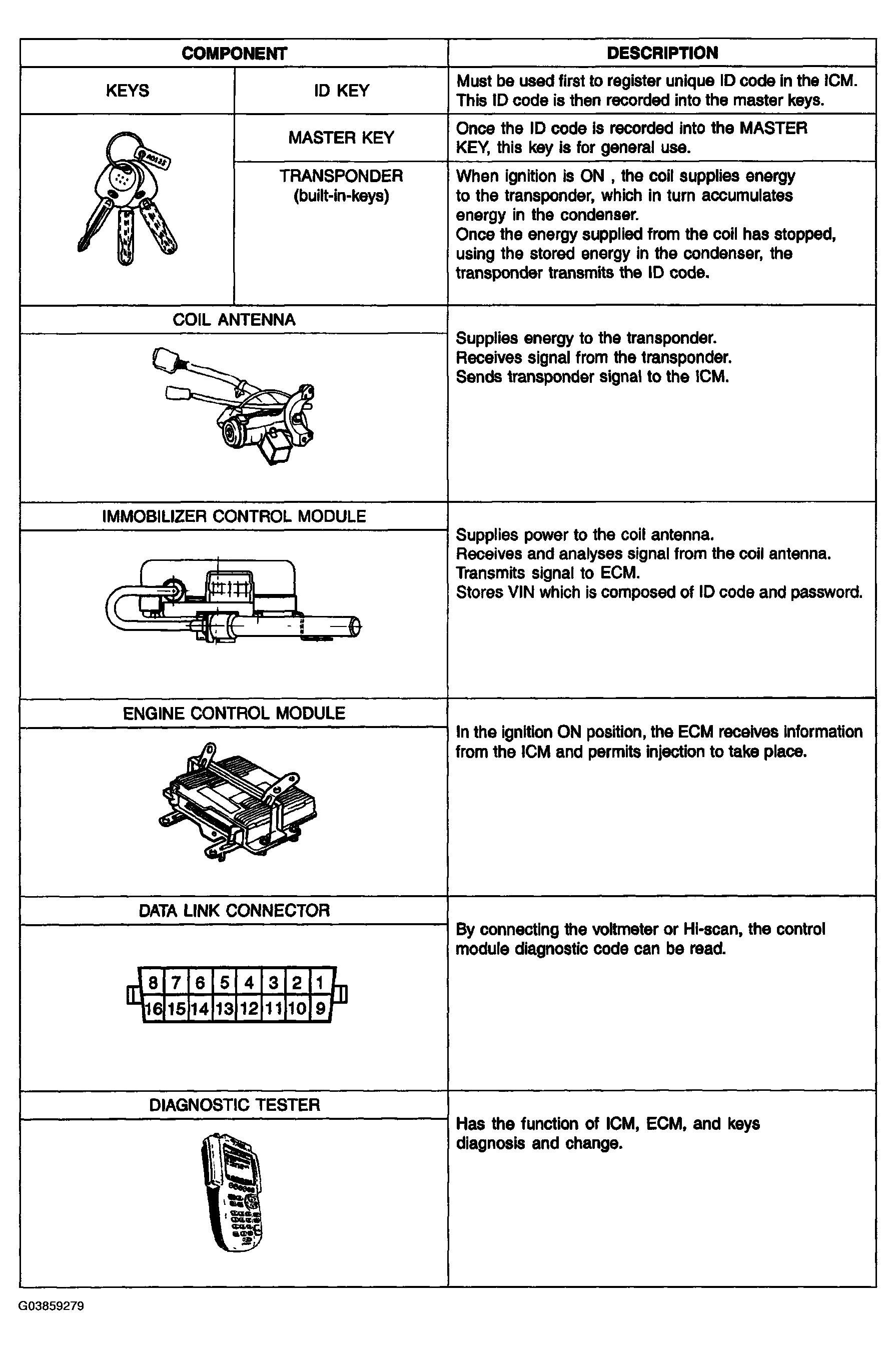

Fig 1: Identifying Immobilizer Control System Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
