Pin Connection

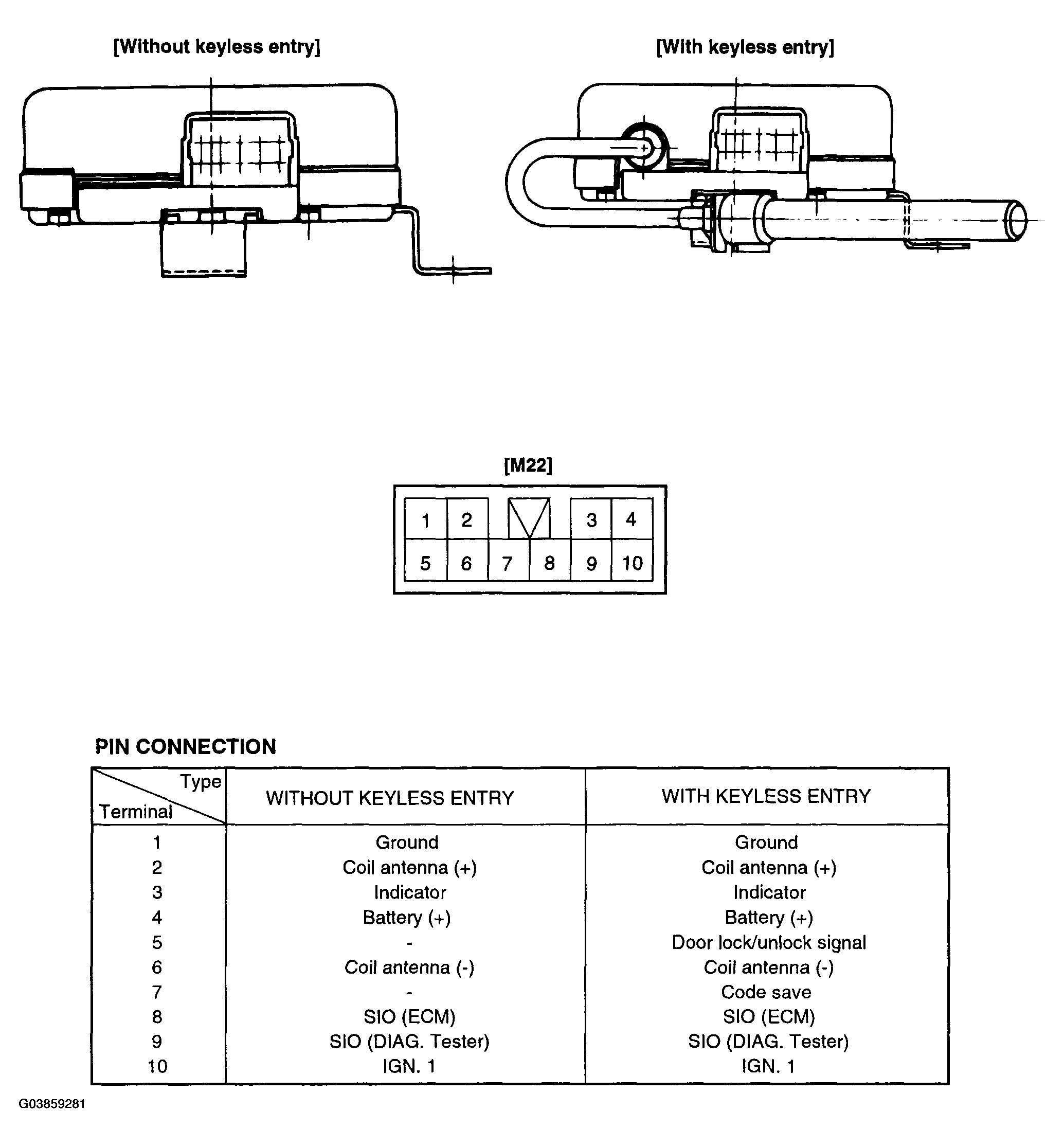

Fig 1: Identifying Immobilizer Control Module Connector Terminals

G03859281

Courtesy of HYUNDAI MOTOR CO.
