LEMON Manuals
: Even more car manuals for everyone
Home
>>
Hyundai
>>
2005
>>
Sonata GLS
>>
Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Door Locks
>>
Immobilizer Control System
>>
Immobilizer Control Module
>>
Keys Registration And Correction
>>
Initial Registration Method
Initial Registration Method

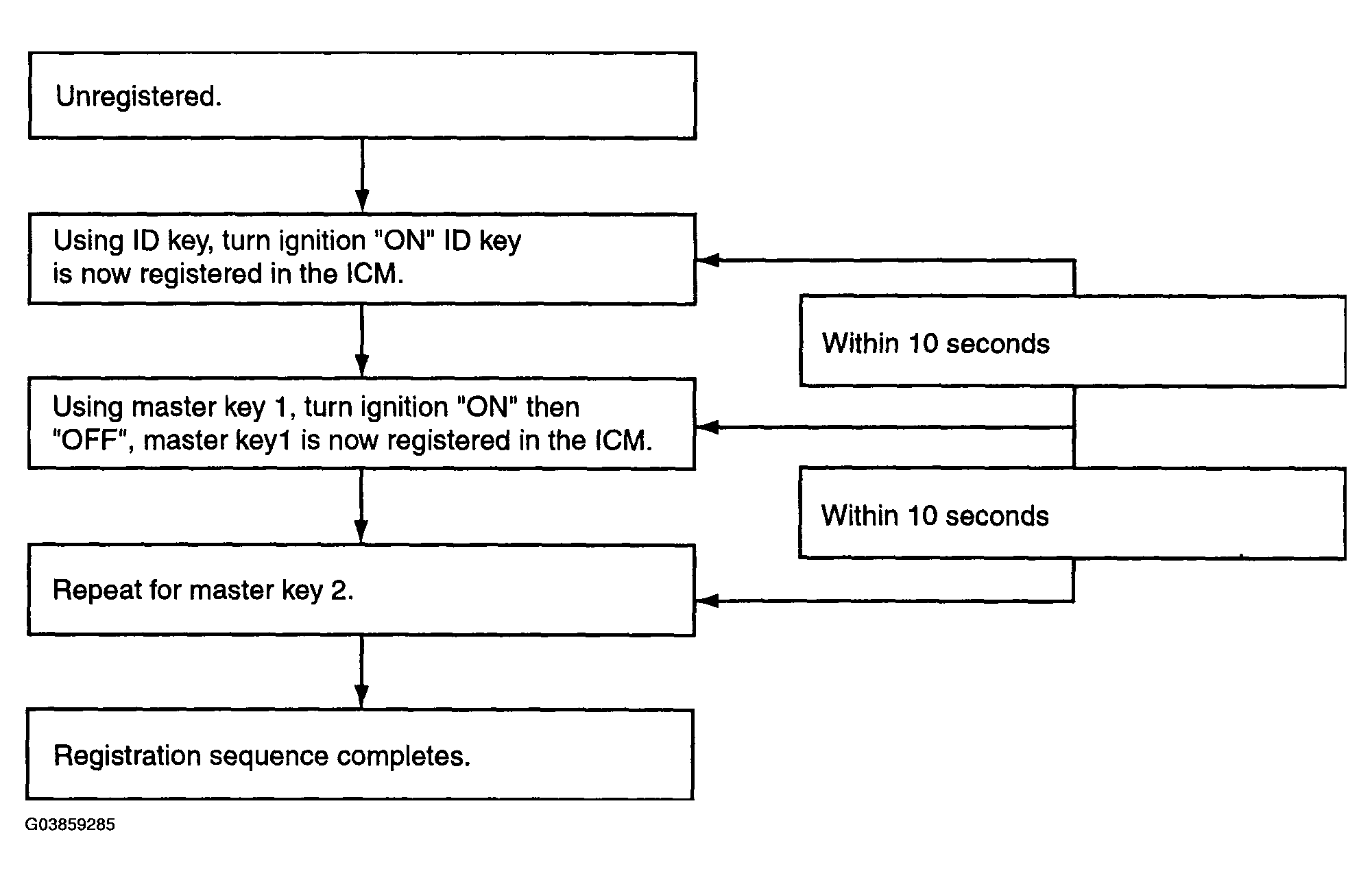

Fig 1: Initial Registration Method Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
