Charging System: Generator: Replacement

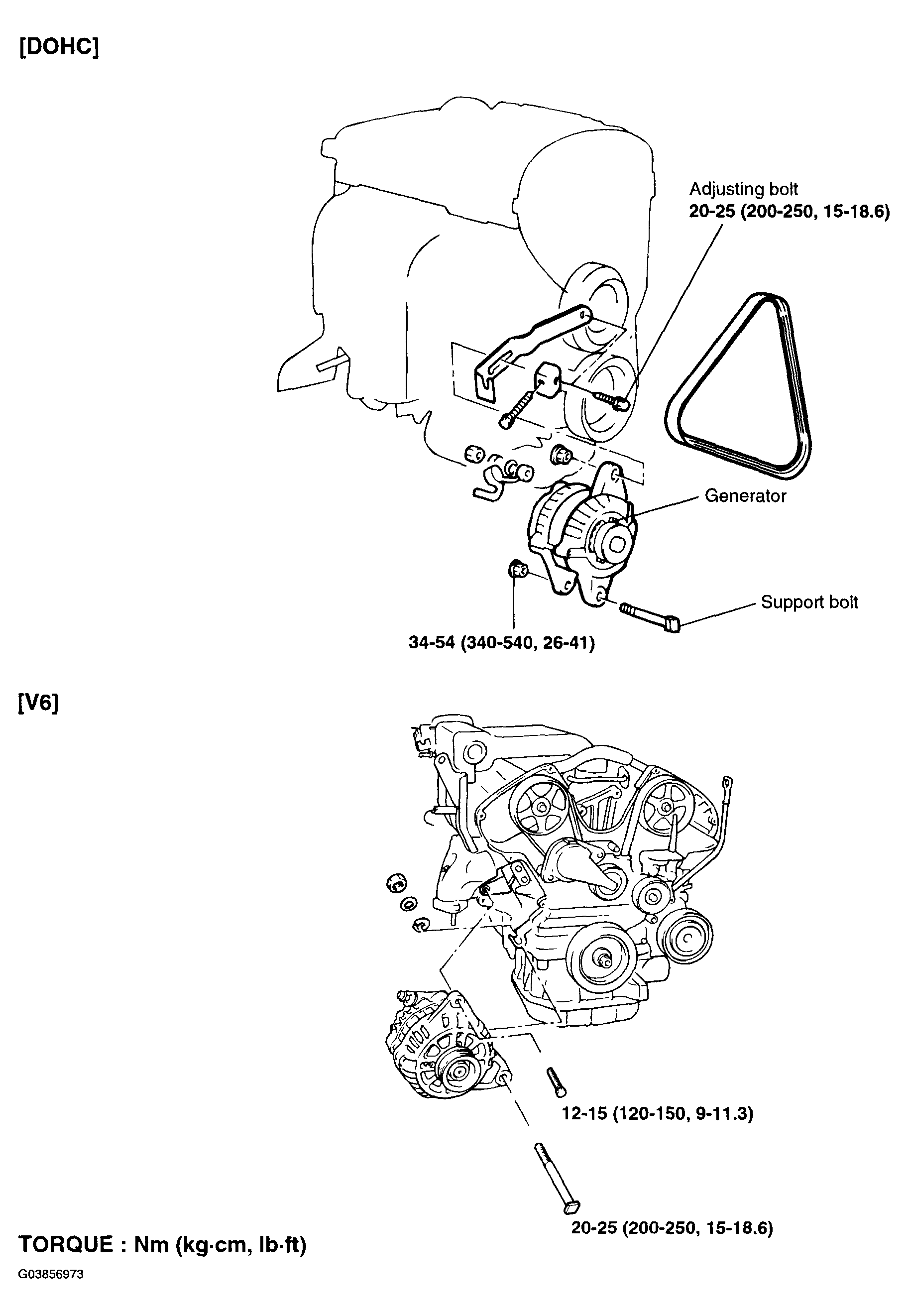

Fig 1: Replacing Generator (DOHC And V6 Engines)

G03856973

Courtesy of HYUNDAI MOTOR CO.
