Charging System: Generator: Components: V6

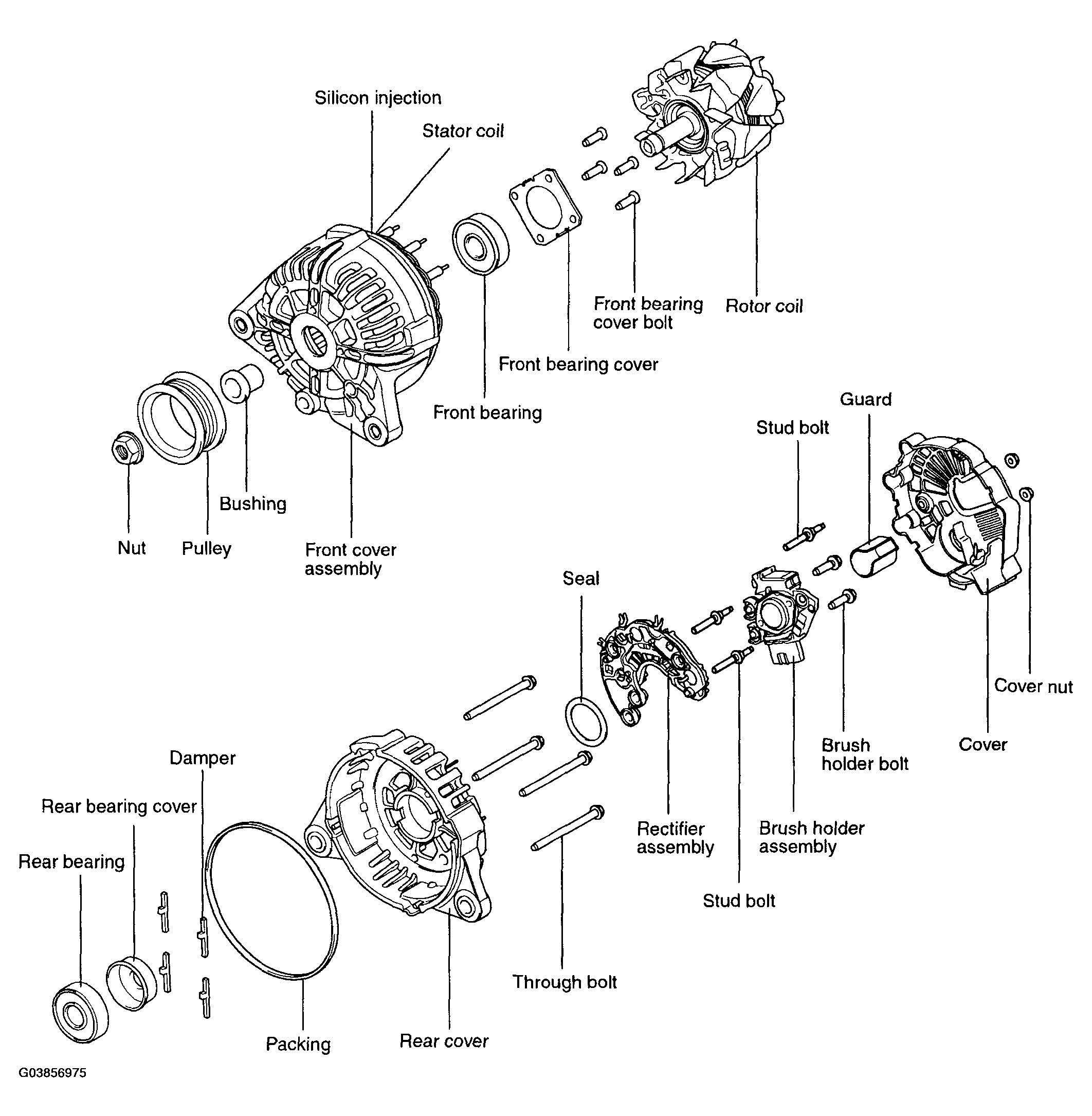

Fig 1: Identifying Generator Components (V6 Engine)

G03856975

Courtesy of HYUNDAI MOTOR CO.
