Charging System: Generator: Components: DOHC

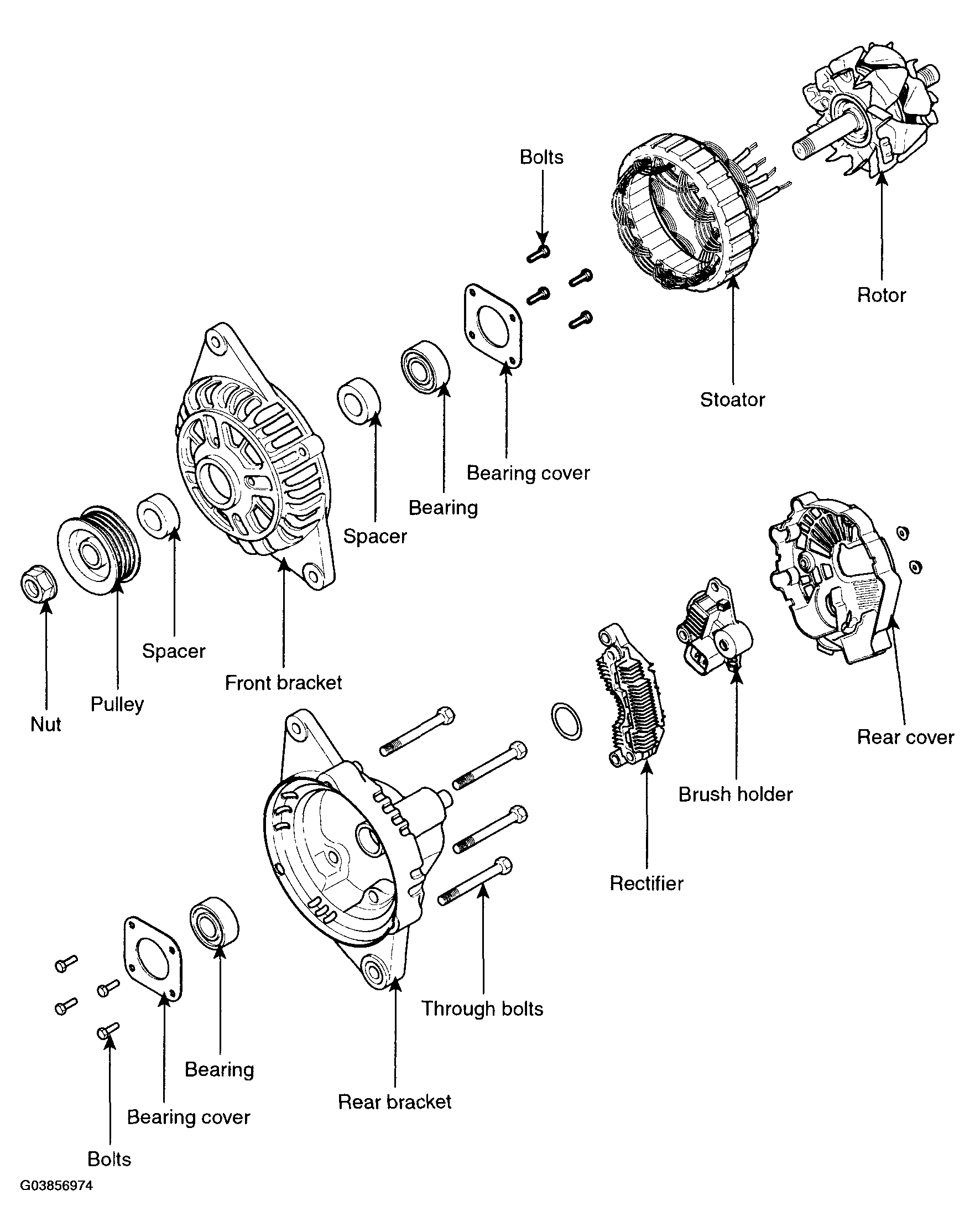

Fig 1: Identifying Generator Components (DOHC Engine)

G03856974

Courtesy of HYUNDAI MOTOR CO.
