Troubleshooting Procedures

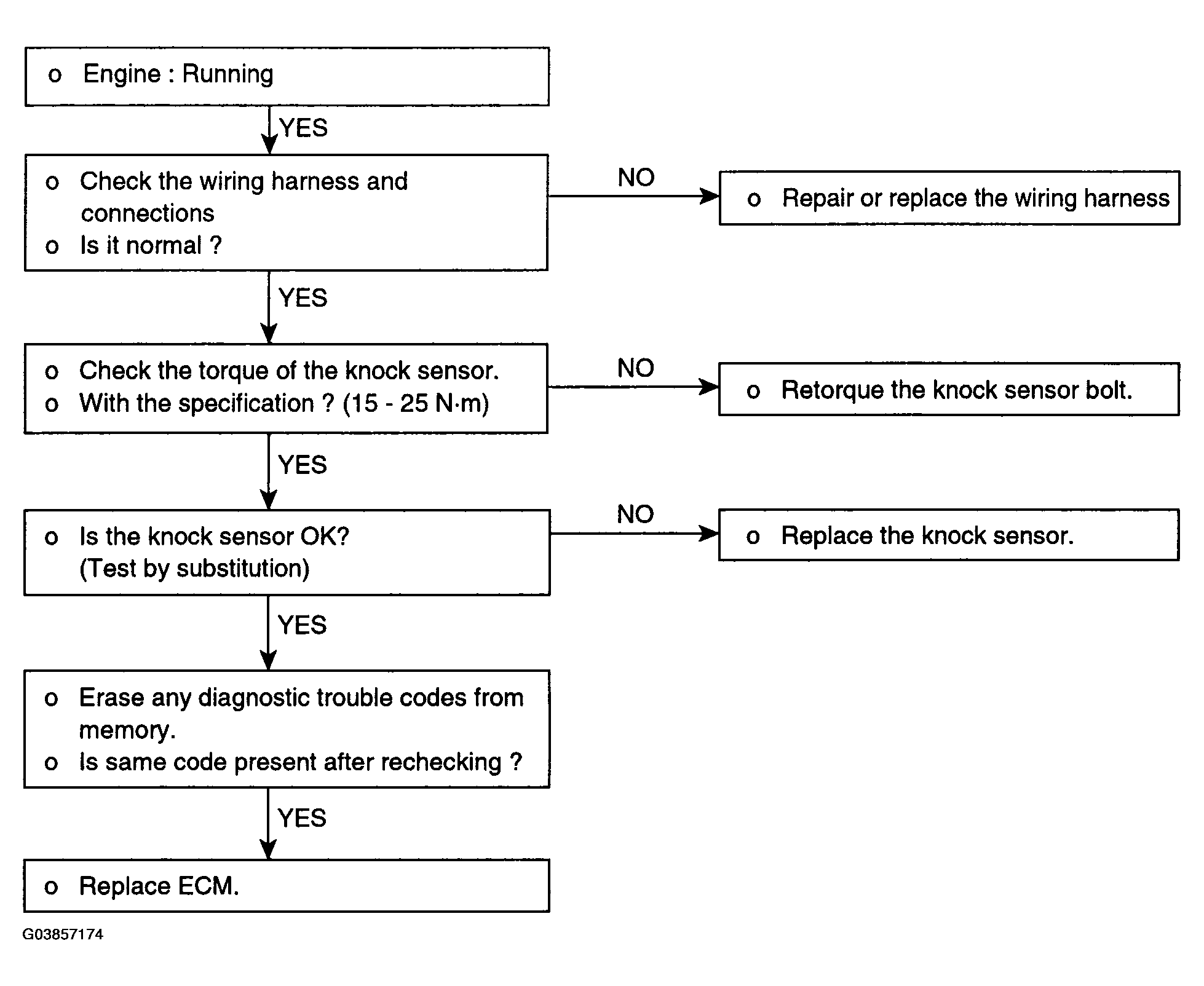

Fig 1: Flow Chart Of Troubleshooting Procedures
G03857174Courtesy of HYUNDAI MOTOR CO.
