Harness Inspection Procedures

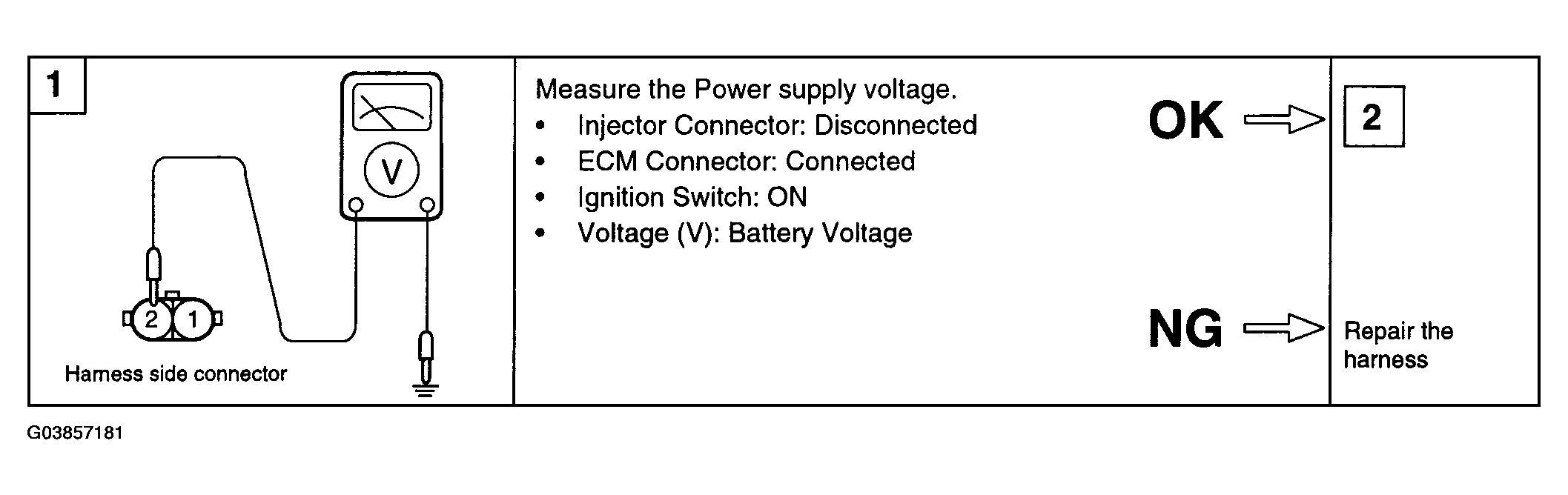

Fig 1: Measuring Sensor Supply Voltage
G03857181Courtesy of HYUNDAI MOTOR CO.

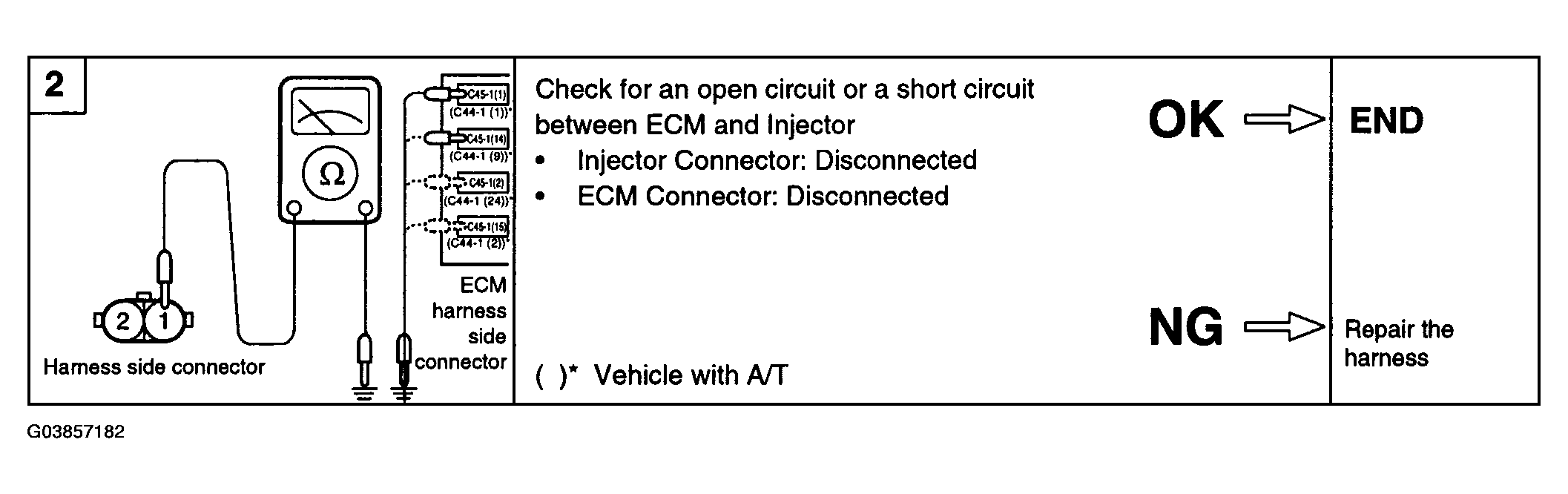

Fig 2: Checking Open Circuit Or Short Circuit Between ECM
G03857182Courtesy of HYUNDAI MOTOR CO.
