Diagnostic Trouble Codes
- While 4WD ECU is active, it periodically monitors its inputs and outputs.

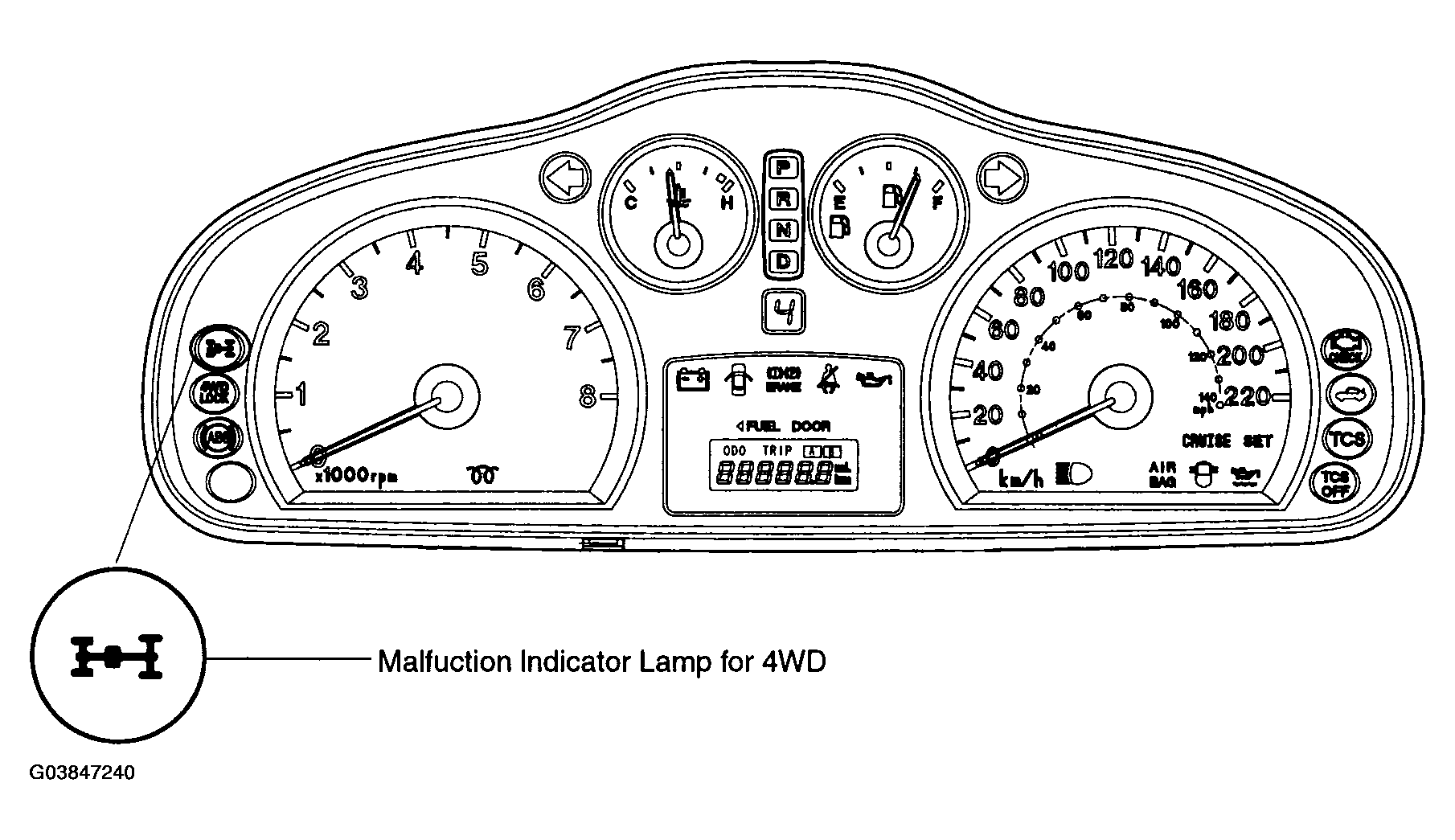

If a fault is detected, the Malfunction Indicator Lamp for 4WD is illuminated and flashes at an interval of 0.25 seconds "ON", and 0.25 seconds "OFF".
- When the ignition is turned on, the 4WD ECU tests its ROM and RAM. If there is a fault, the 4WD ECU immediately resets itself and re-tests the ROM and RAM.
If the fault persists, the 4WD ECU continues to reset and re-test until the fault is corrected or the ignition is turned off.
- Diagnostic Trouble Codes will remain in memory until the 4WD ECU is instructed to erase DTC's by the Hi-Scan Pro.
DIAGNOSTIC TROUBLE CODES
| CODES | DESCRIPTION |
|---|---|
| P1716 | STEERING WHEEL ANGLE SENSOR SIGNAL (CAN ERROR) |
| P1717 | STEERING WHEEL ANGLE SENSOR 1-INPUT SIGNAL |
| P1718 | STEERING WHEEL ANGLE SENSOR 2-INPUT SIGNAL |
| P1719 | STEERING WHEEL ANGLE SENSOR C-INPUT SIGNAL |
| P1726 | TPS/APS LOSS OF SIGNAL |
| P1728 | EEMC OPEN/SHORTED TO BATTERY |
| P1729 | EMC SHORTED TO GROUND |
| P1738 | 4WD ECU INVALID PART NUMBER |
| P1750 | WHEEL SPEED SENSOR SIGNAL (FL) |
| P1751 | WHEEL SPEED SENSOR SIGNAL (FR) |
| P1752 | WHEEL SPEED SENSOR SIGNAL (RL) |
| P1753 | WHEEL SPEED SENSOR SIGNAL (RR) |
| P1764 | CAN MI-COM OR CIRCUIT MALFUNCTION |
| P1765 | TCS-ITM CAN ERROR |
| P1766 | CAN COMMUNICATION BUS OFF |
| P1767 | ABS ACTIVE SIGNAL (CAN ERROR) |
