Inspection Procedure 5

TROUBLE SYMPTOMS - INSPECTION PROCEDURE 5

Vehicle does not move (forward or reverse)	Probable cause
If the vehicle does not move forward or reverse when the selector lever is shifted to any position while the engine is idling, the cause is probably abnormal line pressure, or a malfunction of the power train, oil pump or valve body.	Abnormal line pressure Malfunction of the underdrive solenoid valve Malfunction of the underdrive clutch Malfunction of the valve body Malfunction of the power train

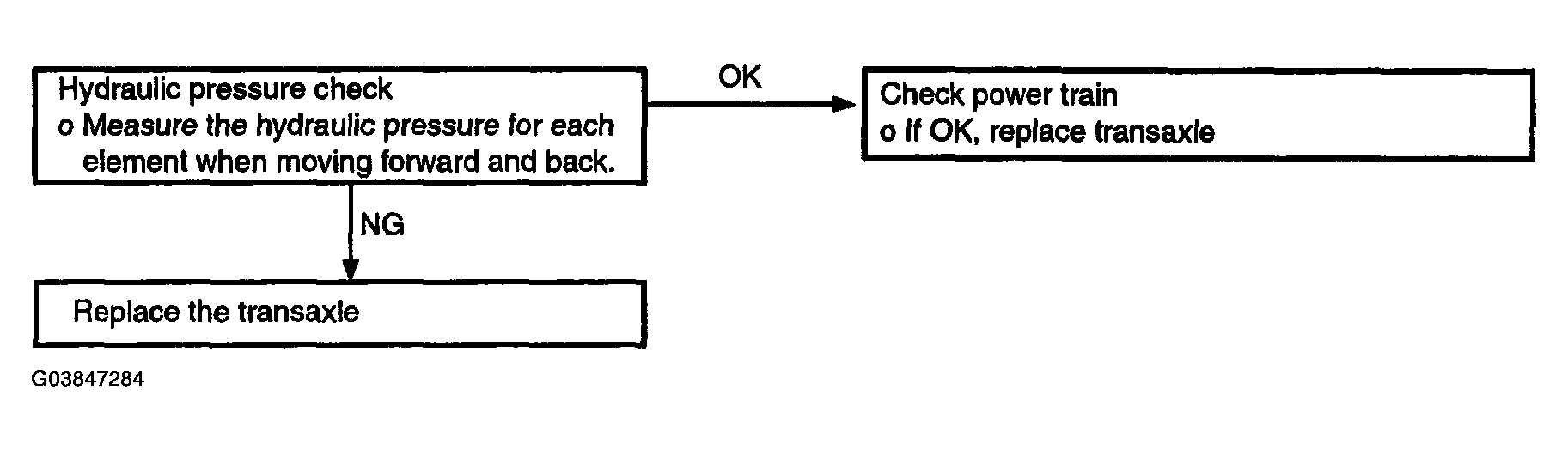

Fig 1: Trouble Symptoms - Inspection Procedure 5 Flow Chart

Courtesy of HYUNDAI MOTOR CO.
